Molex - M8 male connector cables

  • 3-, 4-, and 5-pole connector cables
  • Protection class IP 67

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals CSA 22.2, UL
Cable diameter 4,5
Cable length 2 m
Color Cable Black
Color House Black
Connection Thread M8
Contact Embodiment Straight male
Cross-Section 0.25
Current max 3
Drag Chain Tested Yes
Halogen free No
IP Class IP67
LED indicator No
Manufacturer Part No 1200868632
Material Cable TPU (WSOR)
Materials Contacts Gold plated
Number of poles 3
Shielded No
Spatter Resistant Yes
Temperature Range Flexible Use Of -25
Temperature Range For Flexible Use 80
Temperature Range The Use Of -40
Voltage AC / DC Max 60

Downloads

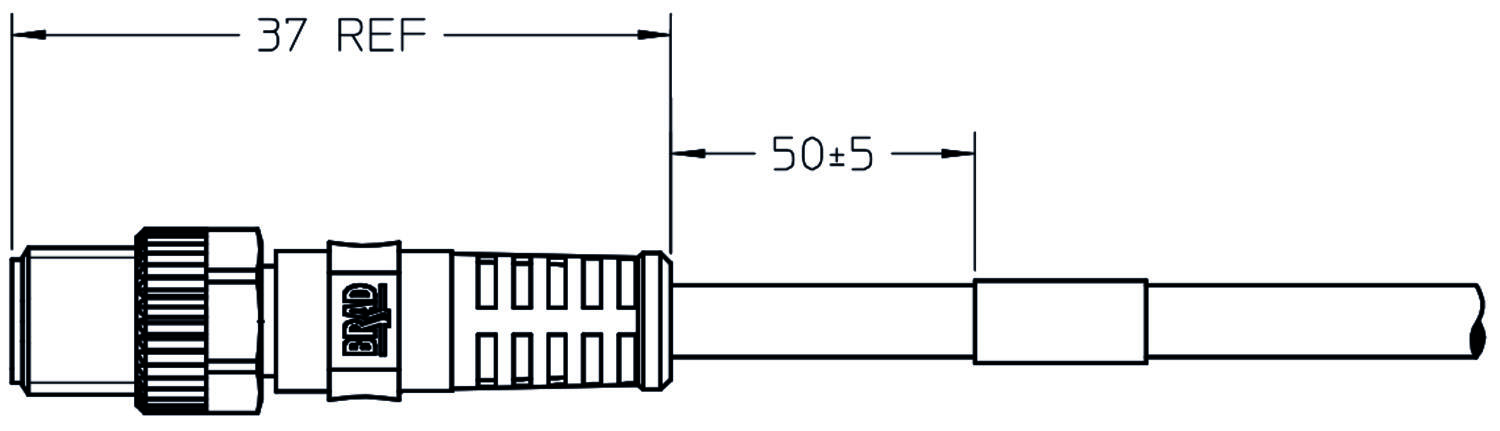

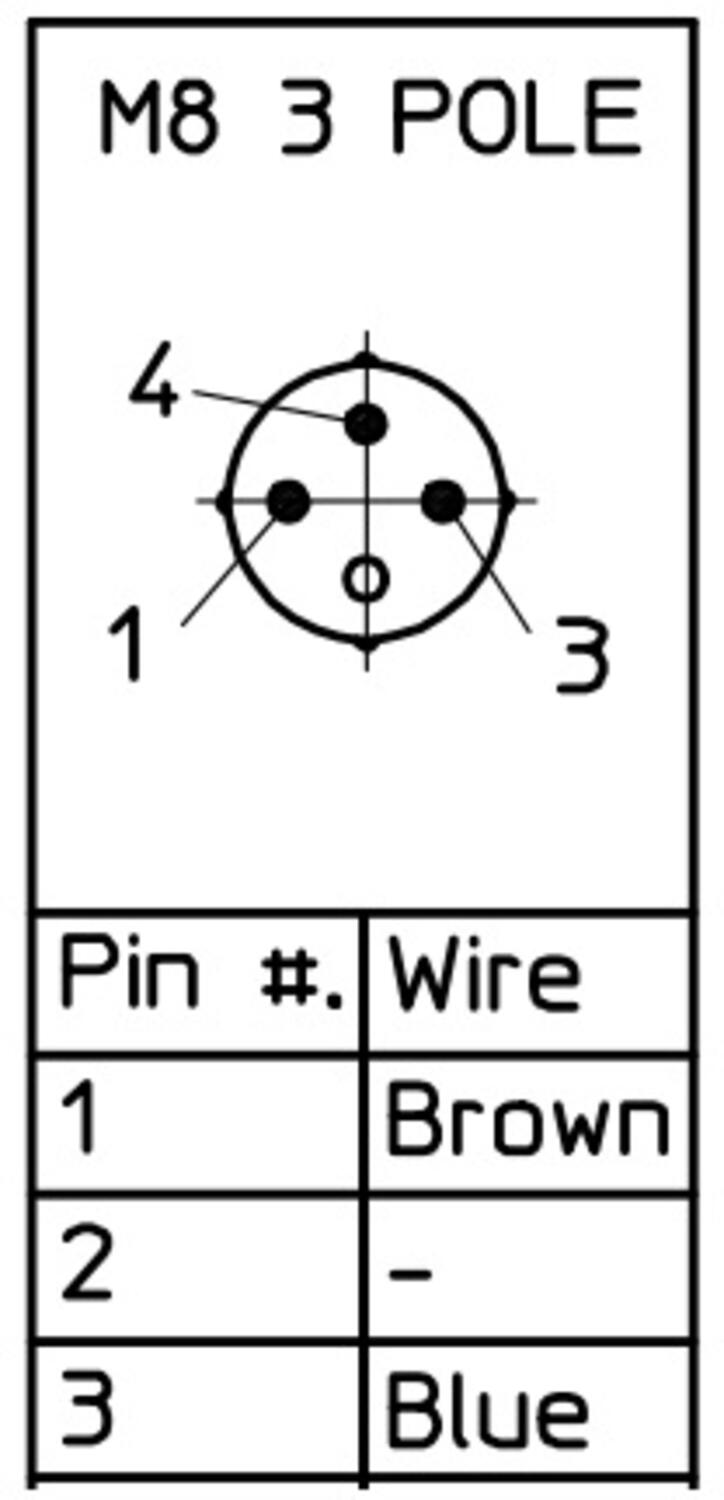

Measurements and connections

Accessories

Related products

My favourites Articles Approvals Cable diameter Cable length Coding Color House Contact Embodiment Drag Chain Tested Halogen free Manufacturer Part No Material Cable Materials Contacts Number of poles Spatter Resistant Temperature Range Flexible Use Of Temperature Range The Use Of Voltage AC / DC Max Voltage Max Price
137987_812.tif
M8 cordset str. male 3-pole 2m TPU
Art:
403006B41M020 Copied
CSA 22.2, UL
4,5
2 m
Black
Straight male
Yes
No
1200868632
TPU (WSOR)
Gold plated
3
Yes
-25
-40
60
137987_812.tif
Cordset M8-M-90-3p-5m
Art:
403007P02M050 Copied
4,7 +0,30/-0,10 mm
5 m
Angled male
No
PUR/PVC
TPU (WSOR)
3
-5
-30
60
137987_812.tif
M8 cordset str. male 3-pole 5m WSOR
Art:
403006B41M050 Copied
CSA 22.2, UL
4,5
5 m
Black
Straight male
Yes
No
1200868633
TPU (WSOR)
Gold plated
3
Yes
-25
-40
60
137987_812.tif
M8 cordset str. male 4-pole 2m TPU
Art:
404006B41M020 Copied
CSA 22.2, UL
4,5
2 m
Black
Straight male
Yes
No
1200868636
TPU (WSOR)
Gold plated
4
Yes
-25
-40
60
137987_812.tif
M8 cordset str. male 4-pole 5m WSOR
Art:
404006B41M050 Copied
CSA 22.2, UL
4,5
5 m
Black
Straight male
Yes
No
1200868637
TPU (WSOR)
Gold plated
4
Yes
-25
-40
60
137987_812.tif
Cordset M8-M-ST-4p-2m
Art:
404006P02M020 Copied
5,0 +0,30/-0,10 mm
2 m
Straight male
No
PUR/PVC
TPU (WSOR)
4
-5
-30
30
137987_812.tif
NC-4P-MM-ST-5M-PUR-0.25
Art:
404006P02M050 Copied
5,0 +0,30/-0,10 mm
5 m
Straight male
No
PUR/PVC
TPU (WSOR)
4
-5
-30
30
137987_812.tif
Cordset M8-M-ST-4p-10m
Art:
404006P02M100 Copied
5,0 +0,30/-0,10 mm
10 m
A
Straight male
No
PUR/PVC
TPU (WSOR)
4
-5
-30
30
137987_812.tif
Cordset M8 3 Poles, Male 2M PUR
Art:
403006P02M020 Copied
4,7 +0,30/-0,10 mm
2 m
Straight male
No
PUR/PVC
TPU (WSOR)
3
-5
-30
60
137987_812.tif
Cordset M8-M-ST-3p-5m
Art:
403006P02M050 Copied
4,7 +0,30/-0,10 mm
5 m
Straight male
No
PUR/PVC
TPU (WSOR)
3
-5
-30
60
137987_812.tif
Cordset M8-M-ST-3p-10m
Art:
403006P02M100 Copied
4,7 +0,30/-0,10 mm
10 m
Straight male
No
PUR/PVC
TPU (WSOR)
3
-5
-30
60
137987_812.tif
M8 cordset 90º male 3-pole 2m WSOR
Art:
403007B41M020 Copied
CSA 22.2, UL
4,5
2 m
Black
Angled male
Yes
No
TPU (WSOR)
Gold plated
3
Yes
-25
-40
60
137987_812.tif
M8 cordset 90º male 3-pole 5m WSOR
Art:
403007B41M050 Copied
CSA 22.2, UL
4,5
5 m
Black
Angled male
Yes
No
120086-8644
TPU (WSOR)
Gold plated
3
Yes
-25
-40
60
137987_812.tif
M8 cordset 90º male 3-pole 10m WSOR
Art:
403007B41M100 Copied
CSA 22.2, UL
4,5
10 m
Black
Angled male
Yes
No
120086-8644
TPU (WSOR)
Gold plated
3
Yes
-25
-40
60
137987_812.tif
M8 cordset 90º male 4-pole 2m PUR
Art:
404007B41M020 Copied
CSA 22.2, UL
4,5
2 m
Black
Angled male
Yes
No
TPU (WSOR)
Gold plated
4
Yes
-25
-40
60
137987_812.tif
Cordset M8-M-90-4p-2m
Art:
404007P02M020 Copied
5,0 +0,30/-0,10 mm
2 m
Angled male
No
PUR/PVC
TPU (WSOR)
4
-5
-30
30
137987_812.tif
Cordset M8-M-90-4p-5m
Art:
404007P02M050 Copied
5,0 +0,30/-0,10 mm
5 m
Angled male
No
PUR/PVC
TPU (WSOR)
4
-5
-30
30
137987_812.tif
Cordset M8-M-90-3p-2m
Art:
403007P02M020 Copied
4,7 +0,30/-0,10 mm
2 m
Angled male
No
PUR/PVC
TPU (WSOR)
3
-5
-30
60
