Valco - Customised Multipoint Level Switches / Continuous Level Sensors
For multipoint and continuous Level we can offer custom built solutions to suit your application and needs.

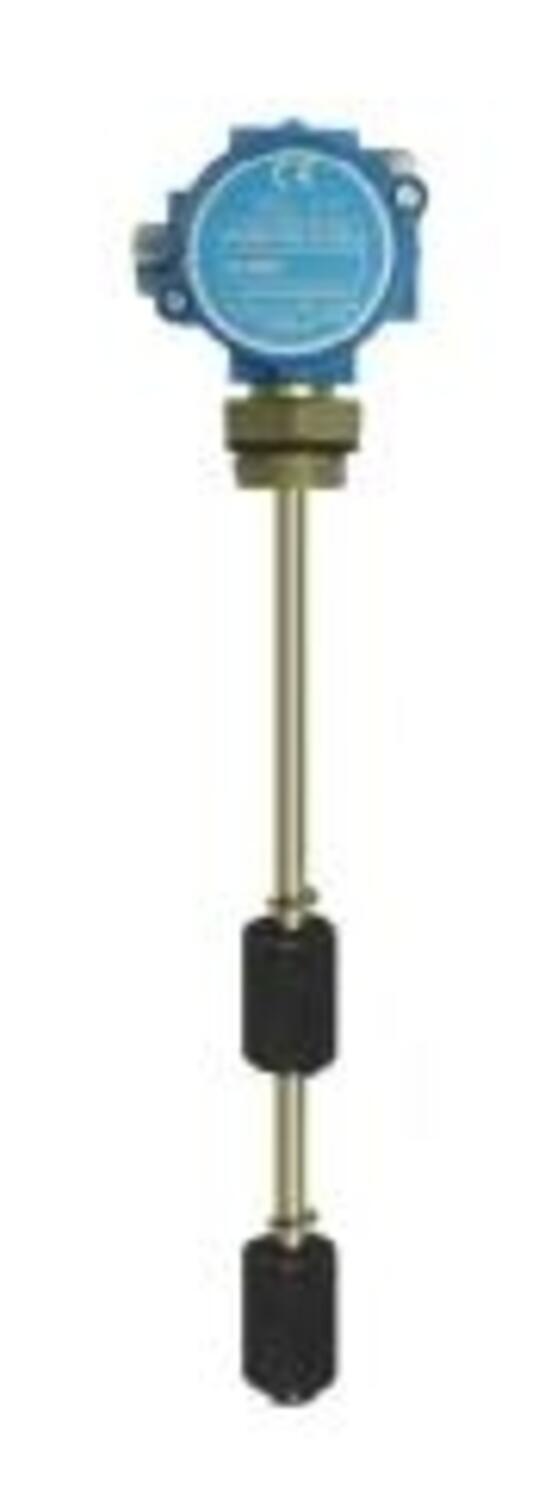

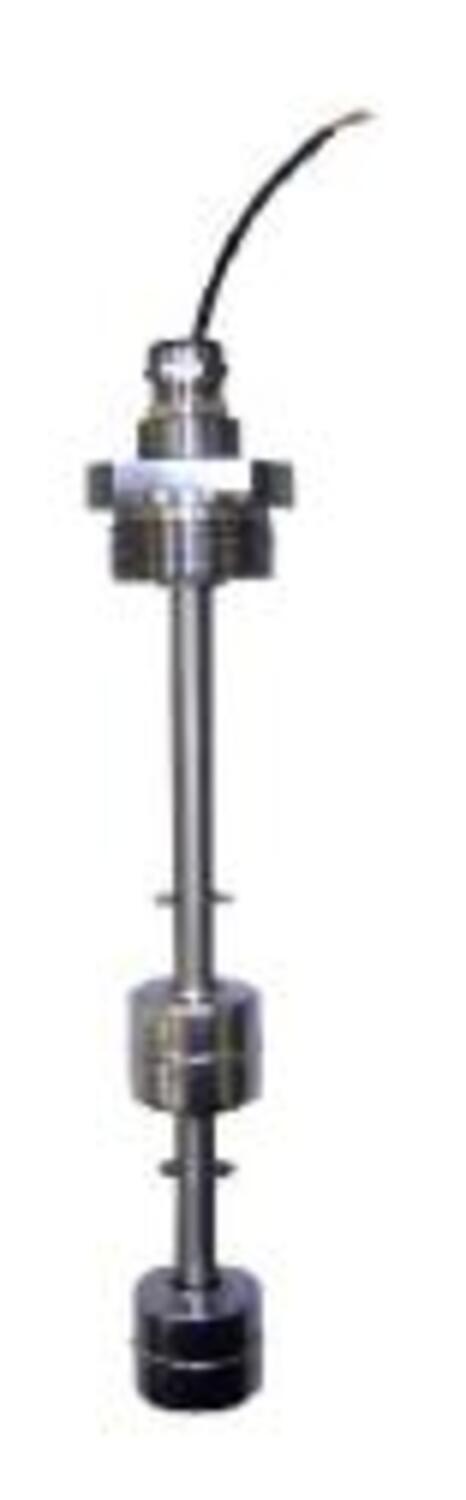

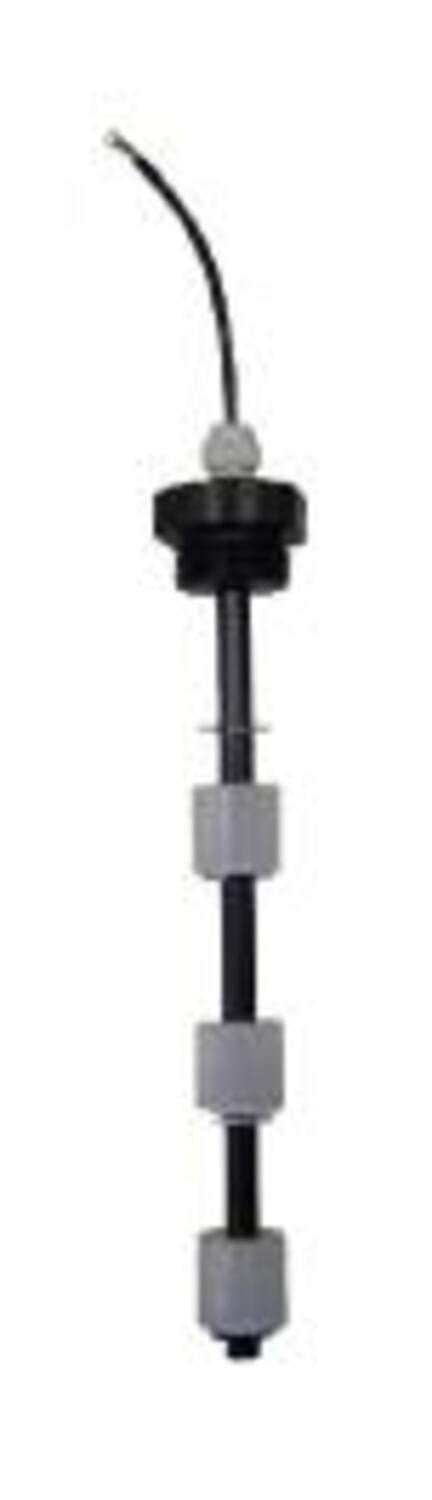

Multipoint Level Switches
Type M2/Multipoint O/S/V-F
• 1-6 floats/switch points
• Up to 6m long
• Up to 50 bar (depending on type)
• Up to 130°C (depending on type)
• ATEX approved versions available
• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel
• 1/8” up to 2” thread options plus up to three flange options (depending on type)
• Five standard electrical connection options
• Selectable contact & switching options
• Floats for specific gravities ranging from 0.35 up to 0.8
Continuous Level Sensors
Type LC/Linear O/S/V-F
• Potentiometric, 4-20mA, 0-5V, 0-10V outputs
• Up to 6m long
• Up to 50 bar (depending on type)
• Up to 130°C (depending on type)
• ATEX approved versions available
• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel
• 3/8” up to 2” thread options plus up to two flange options (depending on type)
• Five standard electrical connection options
• Floats for specific gravities ranging from 0.35 up to 0.8
• Optional mounted/built-in digital display (4-20Ma)
- Up to 50 bar (depending on type)
- Up to 130°C (depending on type)
- ATEX approved versions available
- Up to 6m long
Selected variant
Art:
Selected variant
Specifications
Product description
For multipoint and continuous Level we can offer custom built solutions to suit your application and needs.
Multipoint Level Switches
Type M2/Multipoint O/S/V-F
• 1-6 floats/switch points
• Up to 6m long
• Up to 50 bar (depending on type)
• Up to 130°C (depending on type)
• ATEX approved versions available
• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel
• 1/8” up to 2” thread options plus up to three flange options (depending on type)
• Five standard electrical connection options
• Selectable contact & switching options
• Floats for specific gravities ranging from 0.35 up to 0.8
Continuous Level Sensors
Type LC/Linear O/S/V-F
• Potentiometric, 4-20mA, 0-5V, 0-10V outputs
• Up to 6m long
• Up to 50 bar (depending on type)
• Up to 130°C (depending on type)
• ATEX approved versions available
• Materials: PVC, polypropylene, PVDF, brass/spansil & stainless steel
• 3/8” up to 2” thread options plus up to two flange options (depending on type)
• Five standard electrical connection options
• Floats for specific gravities ranging from 0.35 up to 0.8
• Optional mounted/built-in digital display (4-20Ma)
Ordering information
Please download the specification (you can find the PDF under downloads at the bottom of this page) and fill in the required information then return it to [email protected]
