Molex - mPm DIN Form B Industrial IP67 moulded cable connector

DIN Valve Connectors with moulded cable, IP67 rated.

  • Fully overmolded providing a high level of protection
  • With or without LED and transient protection
  • Integrated gasket and screw, IP67
  • EN175301-803 (DIN43650) - B Industrial

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Cable length 1000
Circuit No circuit
Color Cable Black
Color House Black
Colour LED No LED
Cross-Section 0.75
Current max 5
IP Class IP67
LED indicator No
Manufacturer Part No 1210400820
Material Cable PVC

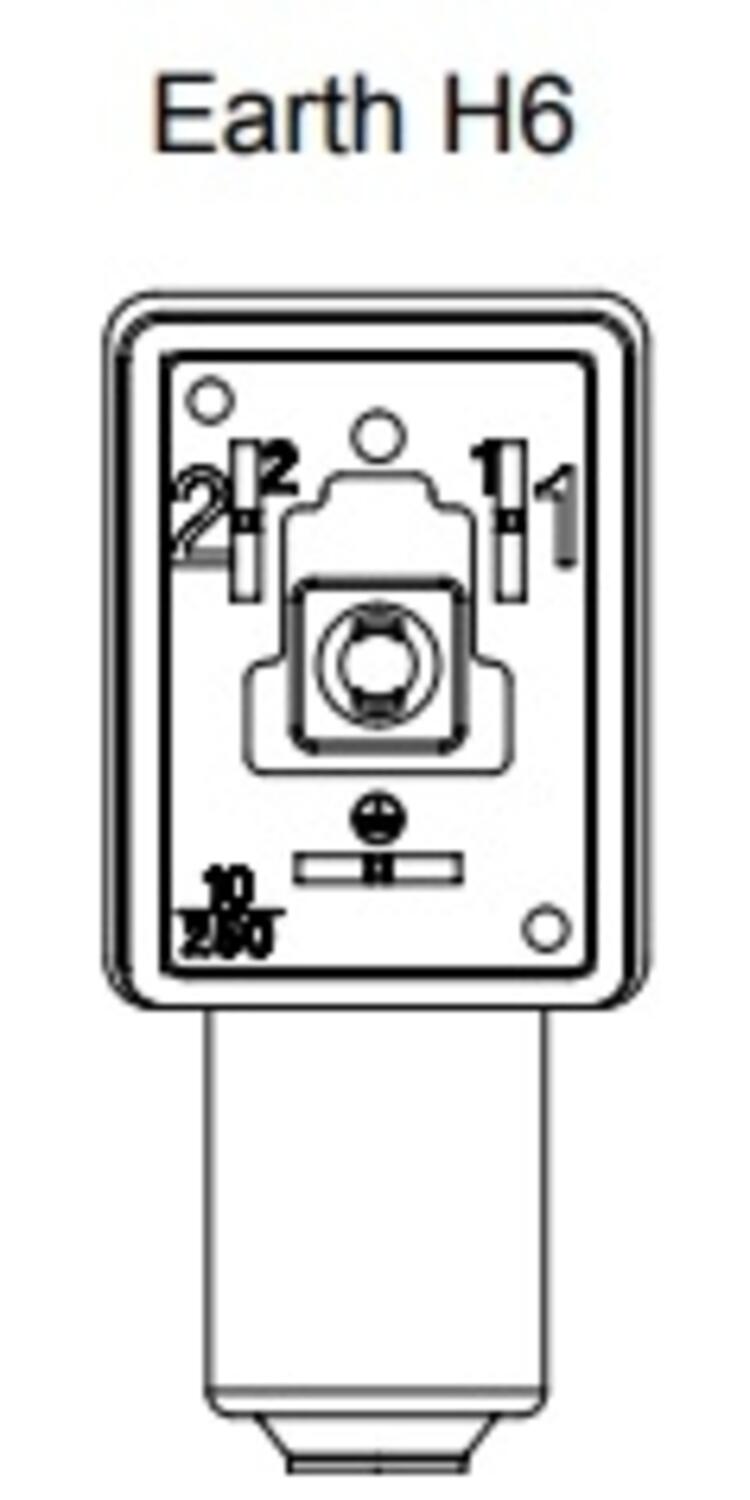

Number of poles 2 + earth
Packing Materials NBR
Rated voltage 250 V
Screw and Gasket NBR integrated gasket assembled + IP67 screw
Screw size M3x29
Temperature range from -40
Temperature range to 90

Downloads

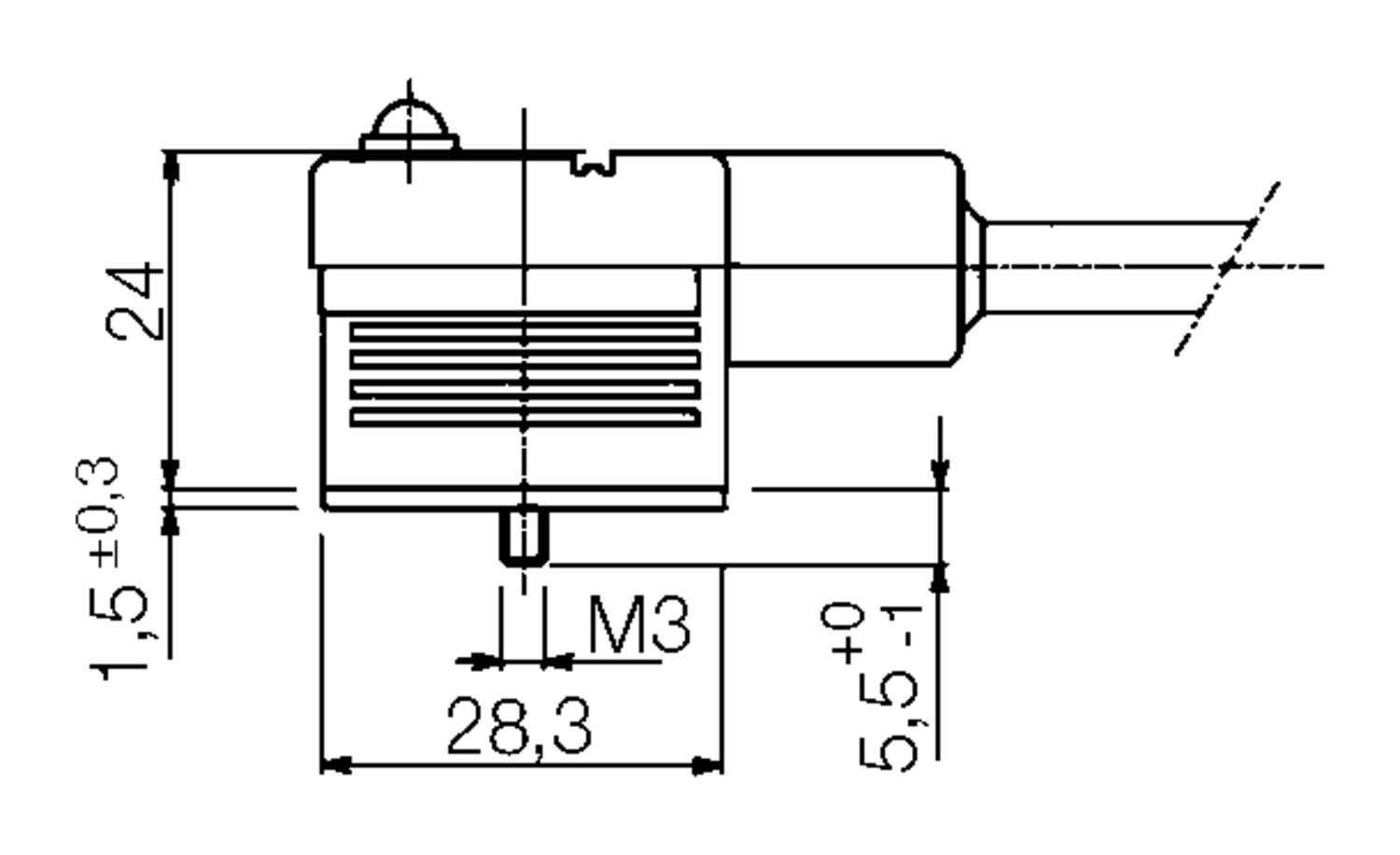

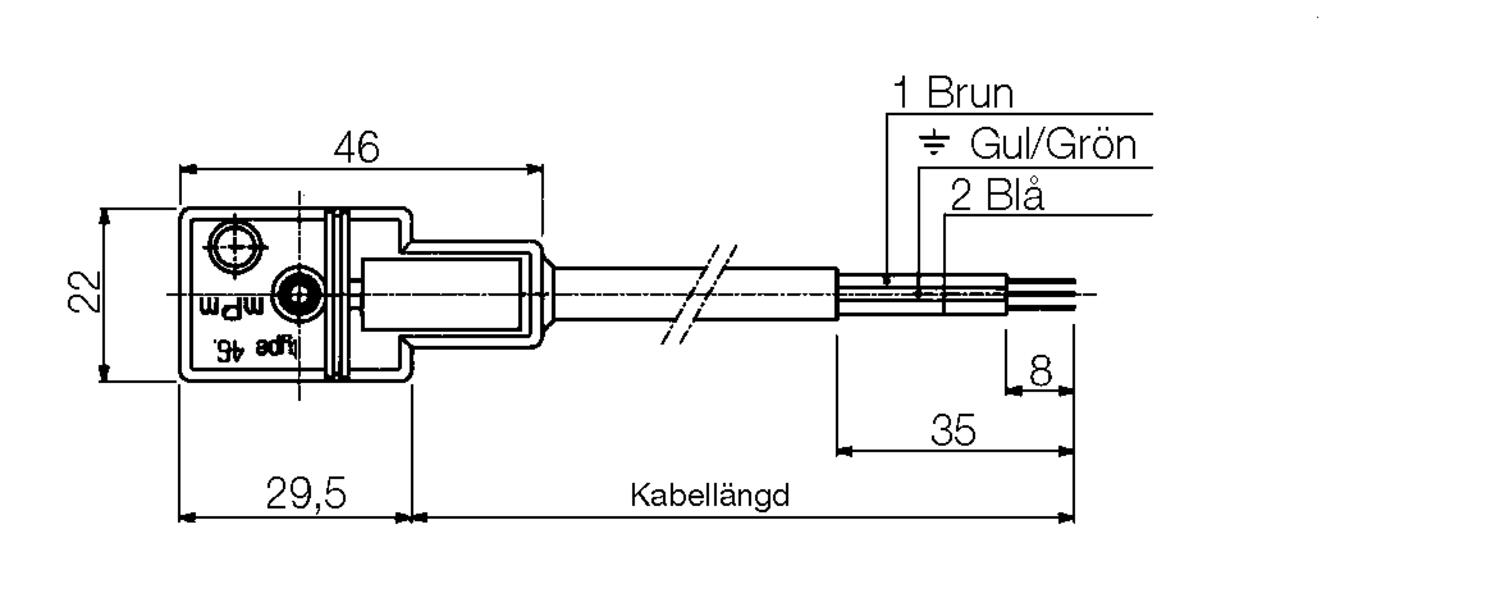

Measurements and connections

Product description

DIN Valve Connectors with moulded cable, IP67 rated.

Accessories

Related products

My favourites Articles Cable length Circuit Colour LED Contact resistance IP Class LED indicator Manufacturer Part No Material Cable Rated voltage Screw and Gasket Screw size Temperature range from Temperature range to Price
137410_555.tif
DINB 2p+earth h6 1m PVC
Art:
162N3N1006P Copied
1000
No circuit
No LED
IP67
No
1210400820
PVC
250 V
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
137410_555.tif
Form Ind, 2P+Earth, H05, 3m Length, H6, Integrated Gasket
Art:
162N3N3006P Copied
3000
No circuit
No LED
≤15 mΩ
IP67
No
PVC
250 V
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
137410_555.tif
Form Ind, 2P+Earth, H05, 5m Length, H6, Integrated Gasket
Art:
162N3N5006P Copied
5000
No circuit
No LED
IP67
No
1210400822
PVC
250 V
NBR integrated gasket assembled + IP67 screw
M3x27
-20
70
137410_555.tif
Form Ind, 2P+Earth, PUR, 1m Length, H6, Integrated Gasket
Art:
162P3N1006P Copied
1000
No circuit
No LED
≤15 mΩ
IP67
No
PUR
250 V
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
137410_555.tif
Form Ind, 2P+Earth, PUR, 3m Length, H6, Integrated Gasket
Art:
162P3N3006P Copied
3000
No circuit
No LED
≤15 mΩ
IP67
No
PUR
250 V
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
137410_555.tif
Form Ind, 2P+Earth, PUR, 5m Length, H6, Integrated Gasket
Art:
162P3N5006P Copied
5000
No circuit
No LED
≤15 mΩ
IP67
No
PUR
250 V
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 1m, H6, C4, 24V, IP67, Yellow
Art:
462N3N1006PC4H Copied
1000
C4: LED & varistor
Yellow
IP67
Yes
PVC
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
DINB 1m PVC-cable 2p+earth C4 24V AC/DC
Art:
462N3N1002PC4H Copied
1000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PVC
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 3m, H12, C4, 24V, Yellow
Art:
462N3N30021C4H Copied
3000
C4: LED & varistor
Yellow
≤15 mΩ
IP65
Yes
PVC
24 V AC/DC
Profile NBR gasket & screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 24V, IP67, Yellow
Art:
462N3N3006PC4H Copied
3000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PVC
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 230V, IP67, Yellow
Art:
462N3N3006PC4M Copied
3000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PVC
230 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 5m, H6, C4, 24V, IP67, Yellow
Art:
462N3N5006PC4H Copied
5000
C4: LED & varistor
Yellow
IP67
Yes
PVC
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x27
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 1m, H6, C4, 24V, IP67, Yellow
Art:
462P3N1006PC4H Copied
1000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PUR
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 24V, IP67, Yellow
Art:
462P3N3006PC4H Copied
3000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PUR
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 3m, H6, C4, 230V, IP67, Yellow
Art:
462P3N3006PC4M Copied
3000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
PUR
230 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x29
-40
90
140437_812.tif
Form Ind, 2P+Earth, H05 PVC, 5m, H6, C4, 24V, IP67, Yellow
Art:
462P3N5006PC4H Copied
5000
C4: LED & varistor
Yellow
≤15 mΩ
IP67
Yes
1210502228
PUR
24 V AC/DC
NBR integrated gasket assembled + IP67 screw
M3x27
-40
90
