DataVS2 is a series of Vision sensors for flexible solutions for machine applications.
The sensor is complete with optics, red LED lighting and electronics in a compact housing. The parameters in the sensor are set via PC through Ethernet communication. The software comes with the sensor and is developed to lead the user step by step through parameter setting. DataVS2 is available in 4 different versions with different control instruments.

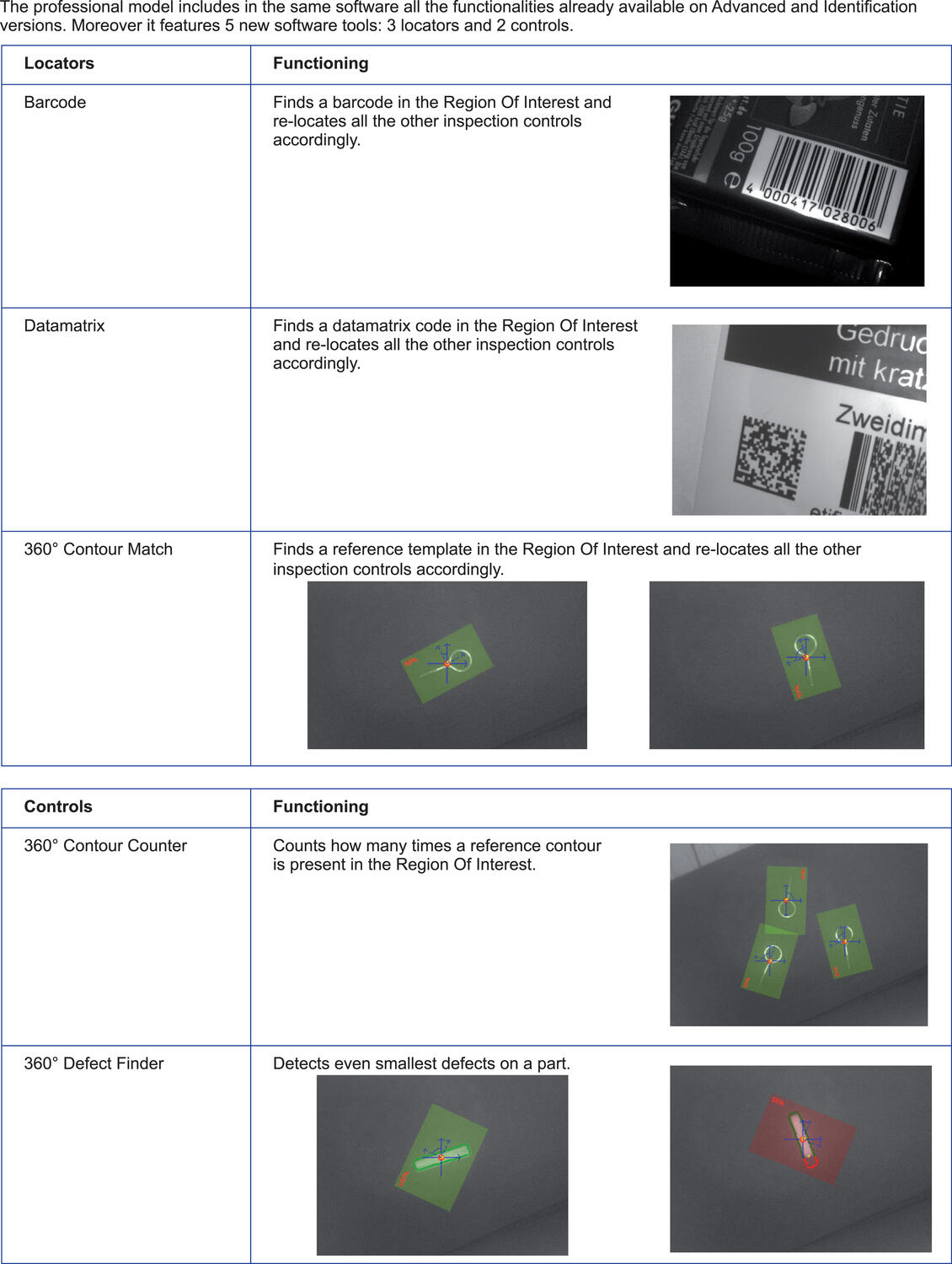

The PRO model - handles the functions in the Advanced and ID models.
It manages 360º pattern recognition and also bar code, datamatrix and OCV. It also has 5 new instruments: 3 locators ( Bar code, Datamatrix and 360º contour matching)
2 controls: 360º contour counter, 360º defect finder
Supply voltage | 24 V DC ±10 % |
Ripple | 1Vpp max. with lighting |
Current consumption | 100 mA at 24 VDC (without lighting) |
Output type | 3 PNP, 100 mA max. |
| RS232 |
Resolution | 640x480 (VGA) |
Network interface | M12 4-pole Ethernet 10/100 Mbs |
Interface external lighting | Strobe signal (24 V PNP N.O) |
Frame rate | 60 fps |
optics | integrated (6 mm/8 mm/12 mm/16 mm) |
Indication | 4 LED |
Connection | M12 8-pole A-coded |
IP-class | IP50 |
Encapsulation material | Aluminium alloy/ABS |
Weight | 125 g |
Working temperature | -10 to +50 ºC |
Storage temperature | -25 to +70 ºC |
Read field
Working distance (mm) | Read field (Width x Height) in mm | |||
DATAVS2-16-DE-xxx | DATAVS2-12-DE-xxx | DATAVS2-08-DE-xxx | DATAVS2-06-DE-xxx | |
50 | - | 17 x 12 | 25 x 20 | 42 x 30 |
80 | - | 25 x 20 | 40 x 30 | 60 x 41 |
110 | - | 33 x 25 | 55 x 40 | 80 x 55 |
140 | 31 x 24 | 45 x 35 | 70 x 50 | 98 x 69 |
170 | 39 x 29 | 53 x 38 | 85 x 60 | 118 x 83 |
200 | 46 x 34 | 60 x 50 | 100 x 70 | 138 x 92 |
300 | 70 x 53 | 90 x 65 | 145 x 103 | 201 x 140 |
400 | 94 x 71 | 121 x 82 | 186 x 132 | 265 x 189 |
500 | 118 x 89 | 150 x 110 | 236 x 167 | 330 x 232 |
600 | 143 x 107 | 185 x 130 | 282 x 232 | 385 x 270 |
|
|
Order number | Description | Output |
DATAVS2-06-RE-PRO | 6 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-08-RE-PRO | 8 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-12-RE-PRO | 12 mm lens, PRO | 3 outputs, RS232 |
DATAVS2-16-RE-PRO | 16 mm lens, PRO | 3 outputs, RS232 |
DATAVSCVRJ45D03 | Ethernet cable 3m |
|
Data sheet | |
Manual |
| Electrical connection | M12 4-pole D-coded, M12 8-pin connector |
|---|---|
| Frame Rate | 60 |
| Interface | Ethernet 10/100 Mbs (4-pole M12 -connector) |
| IP Class | IP50 |
| Lens material | ABS plastic |
| Material Protection | Aluminium |
| Optics | 6mm integrated lens |
| Output | 3xPNP, RS232 |
| Output current max | 0.1 |
| Power consumption max | 0.1 |
|---|---|
| Resolution | 640x480 (VGA) |
| Temperature range from | -10 |
| Temperature range to | 50 |
| Voltage DC max | 24 |
| Voltage DC min | 24 |
| Voltage Tolerance | 10% |
