ORLACO
Orlaco - Reinforced cable

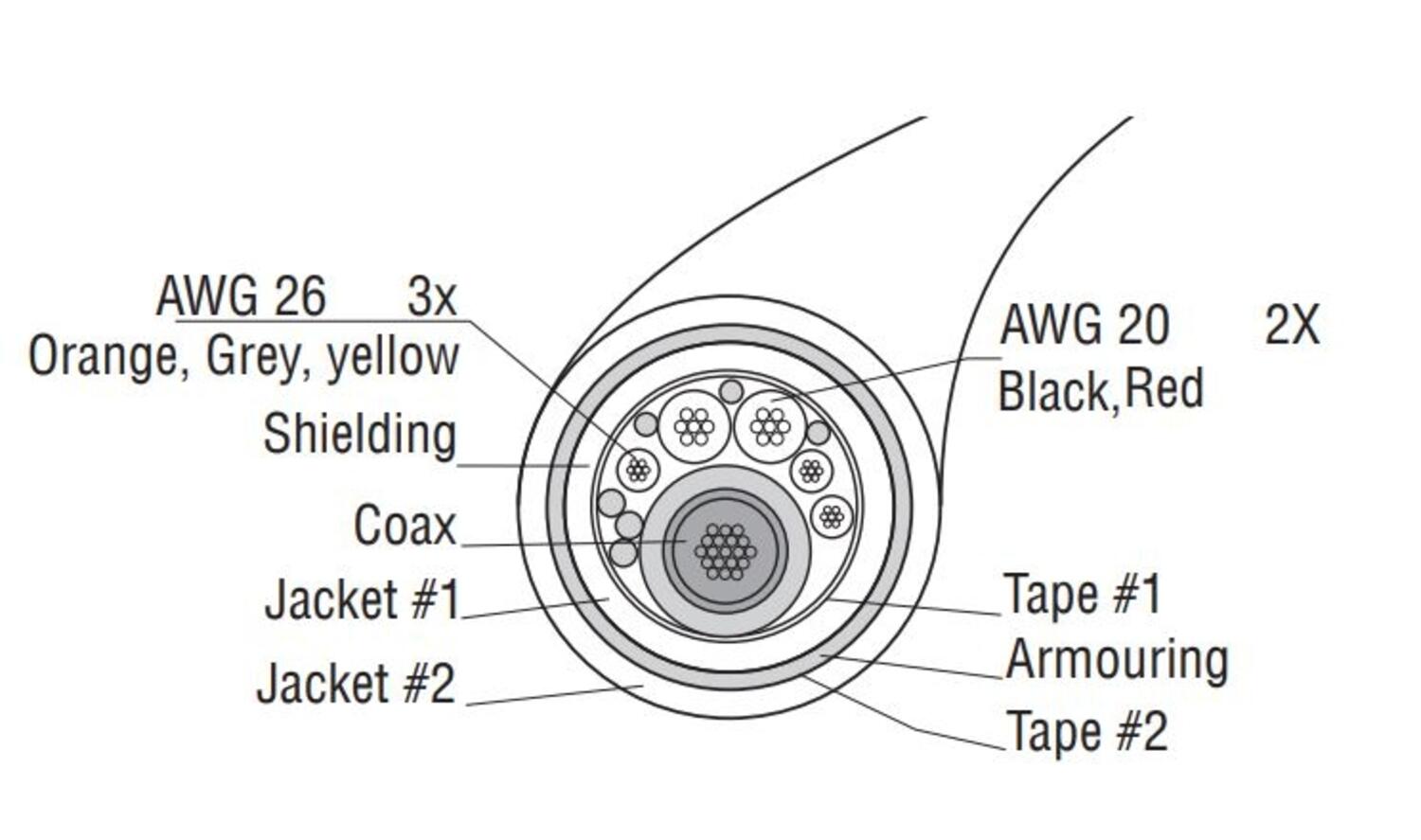

Thanks to the internal reinforcement of galvanized braided steel wire, this cable provides good protection in demanding environments.
Note If the cable is moving constantly, such as a boom or hinge construction, the dynamic cable should be used.
- For electromagnetic compatibility, 100 Vm

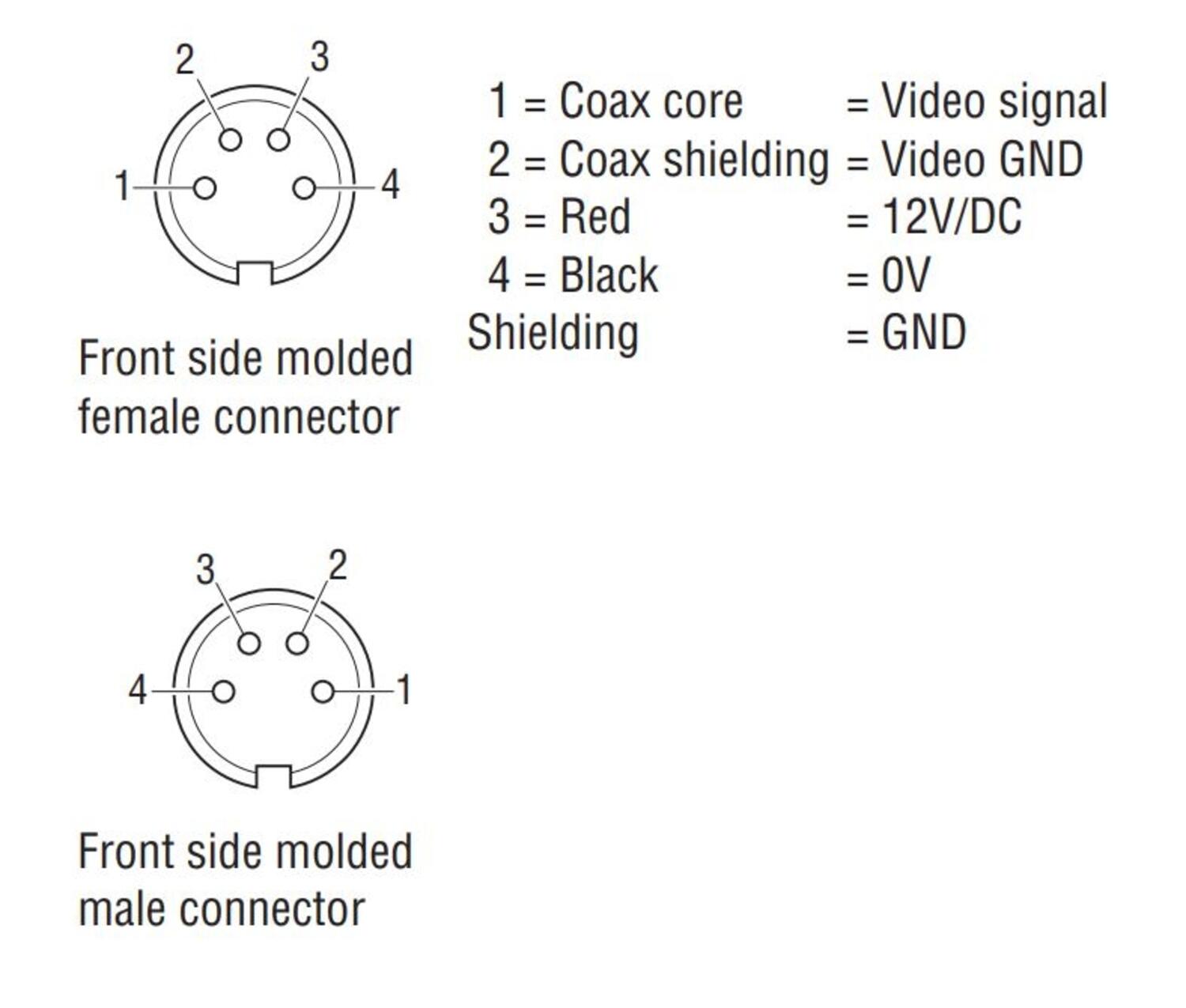

- M16 4-pole cast contacts or 7-pin cast contacts
- -30 to +80 °C
Selected variant
Selected variant
Specifications
| Cable Diameter | 8.7 |
|---|---|

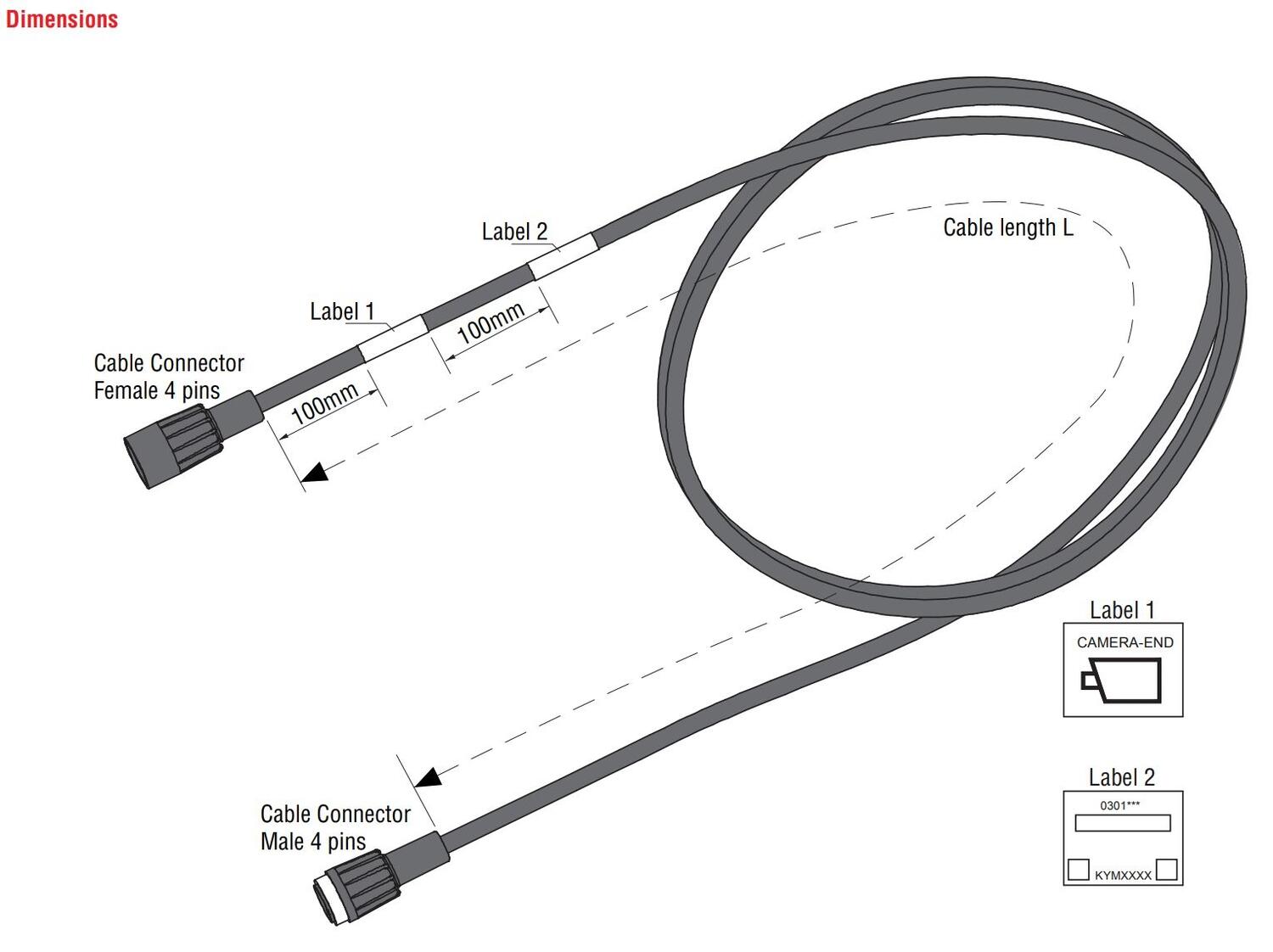

| Cable length | 1500 |
| IP Class | IP67 |
| Temperature range from | -30 |
| Temperature range to | 85 |
Product description
Thanks to the internal reinforcement of galvanized braided steel wire, this cable provides good protection in demanding environments.
Note If the cable is moving constantly, such as a boom or hinge construction, the dynamic cable should be used.
