Orlaco CornerEye Kit

Blind spots on trucks

The camera system that gives you an overview of the "dead angle" both in front and on the side of the truck. Prevent accidents with the help of CornerEye, with this unique camera system you are constantly on the lookout for cyclists, pedestrians, objects and anything else that may appear in the daily traffic.

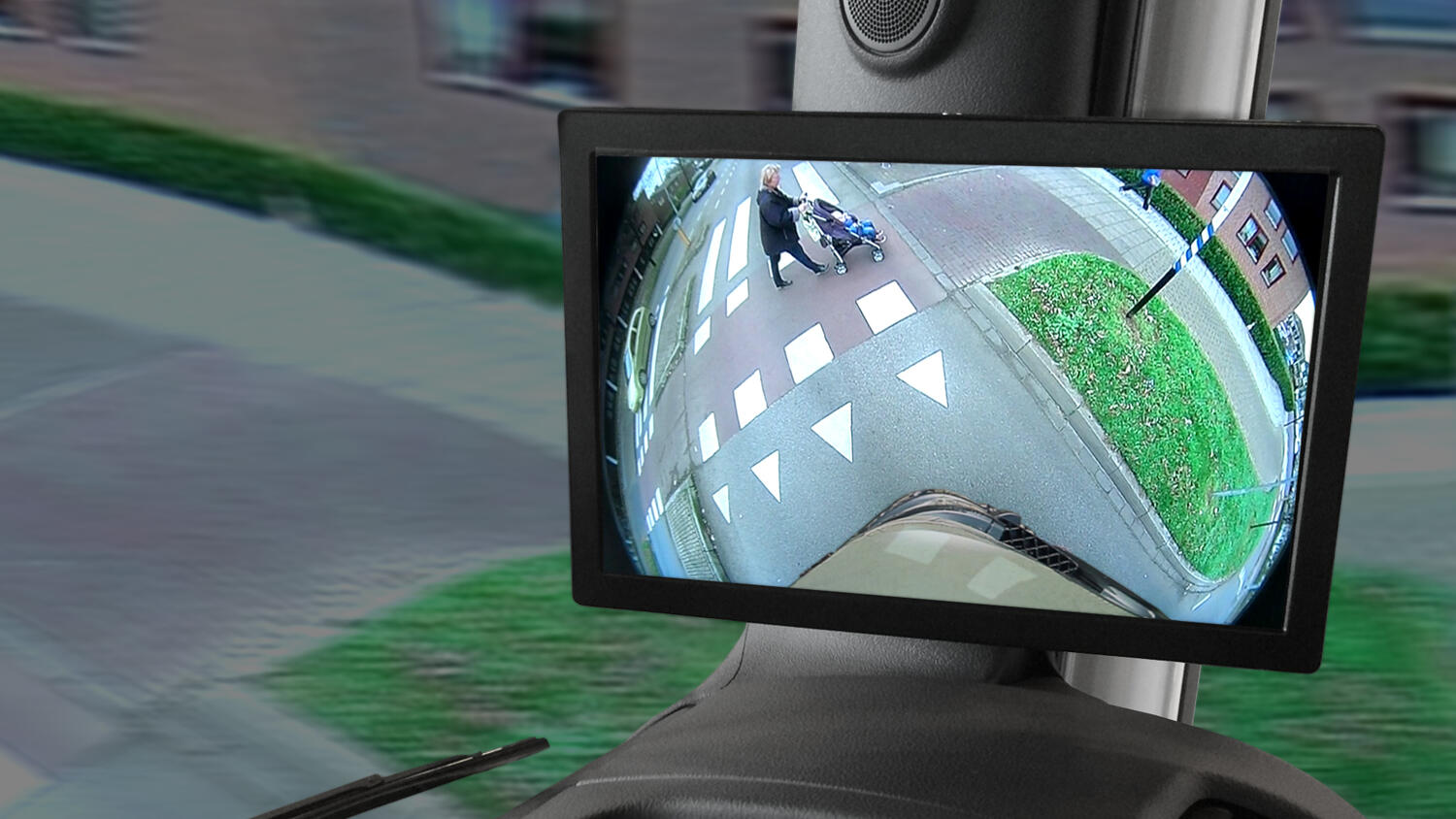

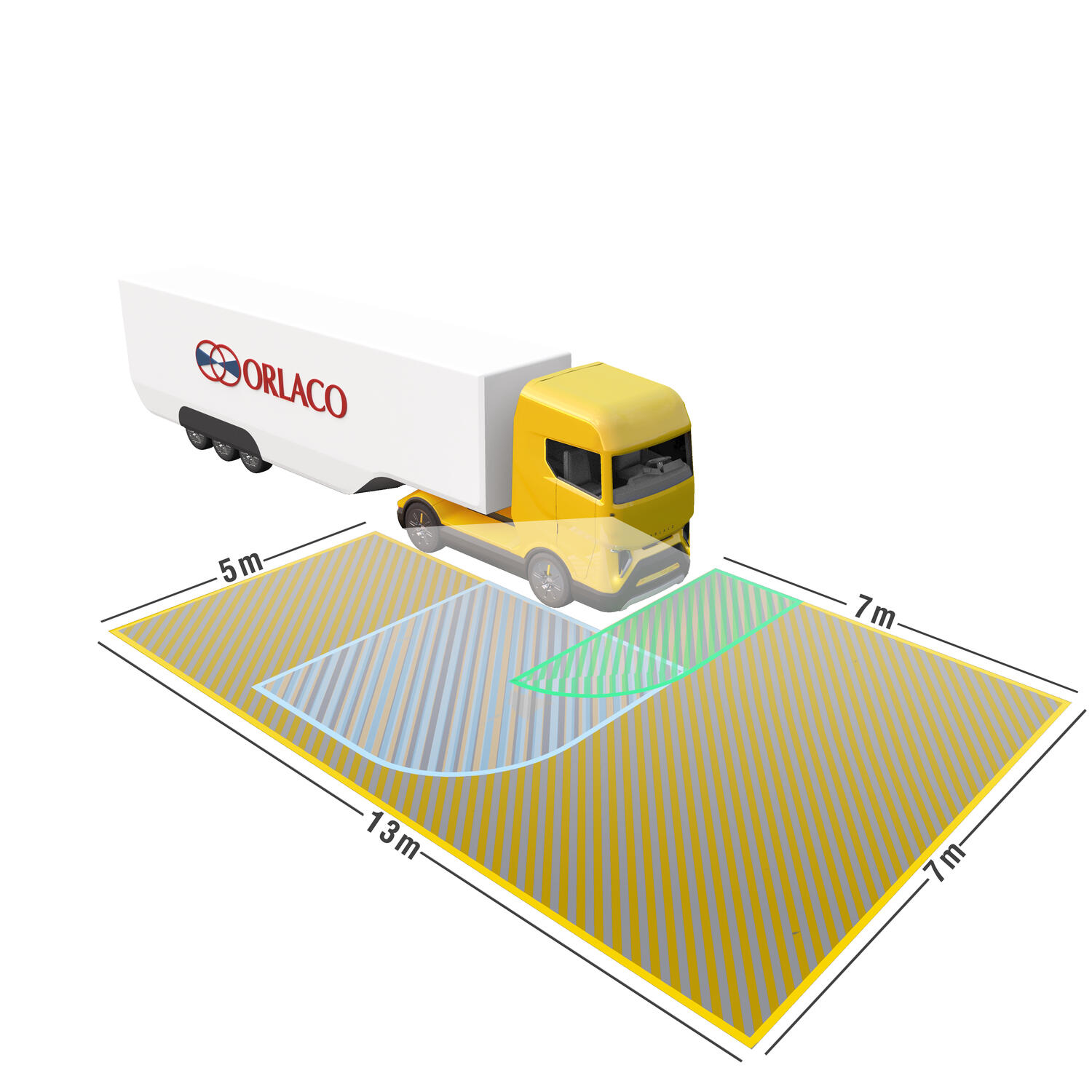

Classes_orlaco_truck.jpg      CornerEye_monitor_image_picture.jpg

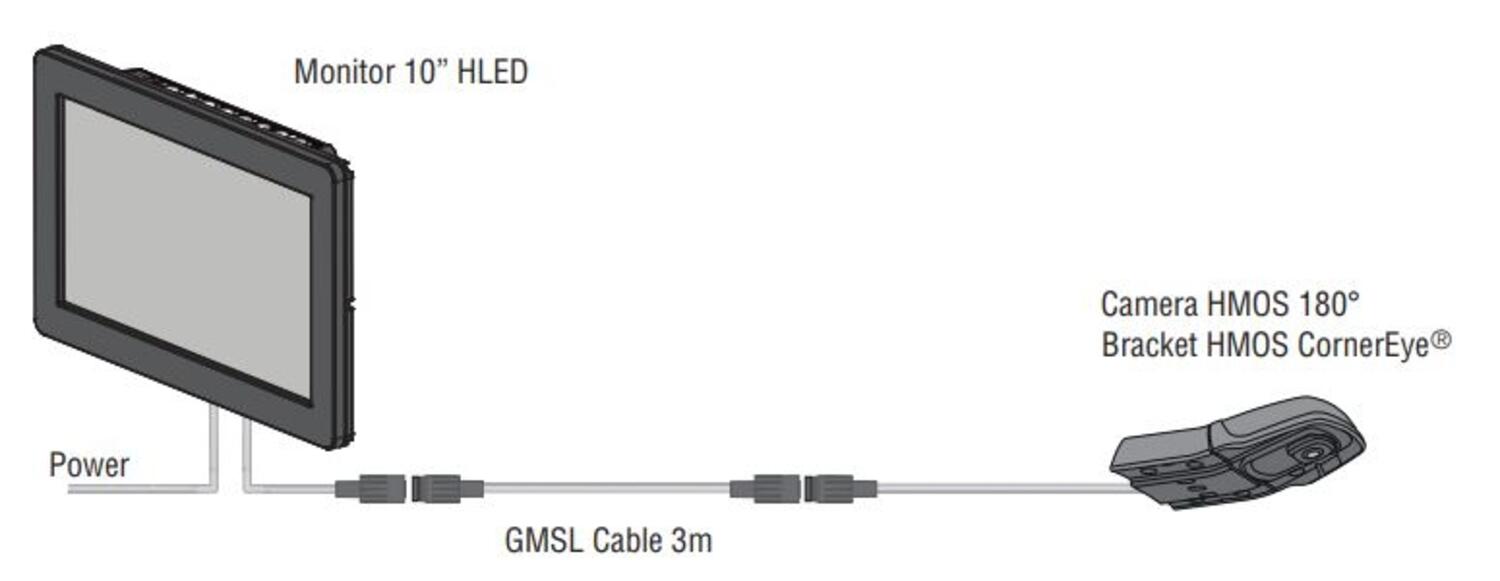

Kit can include:

  • Digital GMSL Camera HMOS: high speed digital GMSL camera, Various lens angles from 30° to 180°
  • Digital GMSL monitor HLED 7": Optical bonded panel with touch pads, auto brightness control
  • Digital GMSL Monitor HLED 10": LCD mdule with white LED backlight, auto brightness control
  • Digital GMSL HMOS Camera Switcher: Inputs and power supply for up to 4 cameras, output for monitor
  • Digital GMSL standard and dynamic cables: EMC screening nd ADR approved

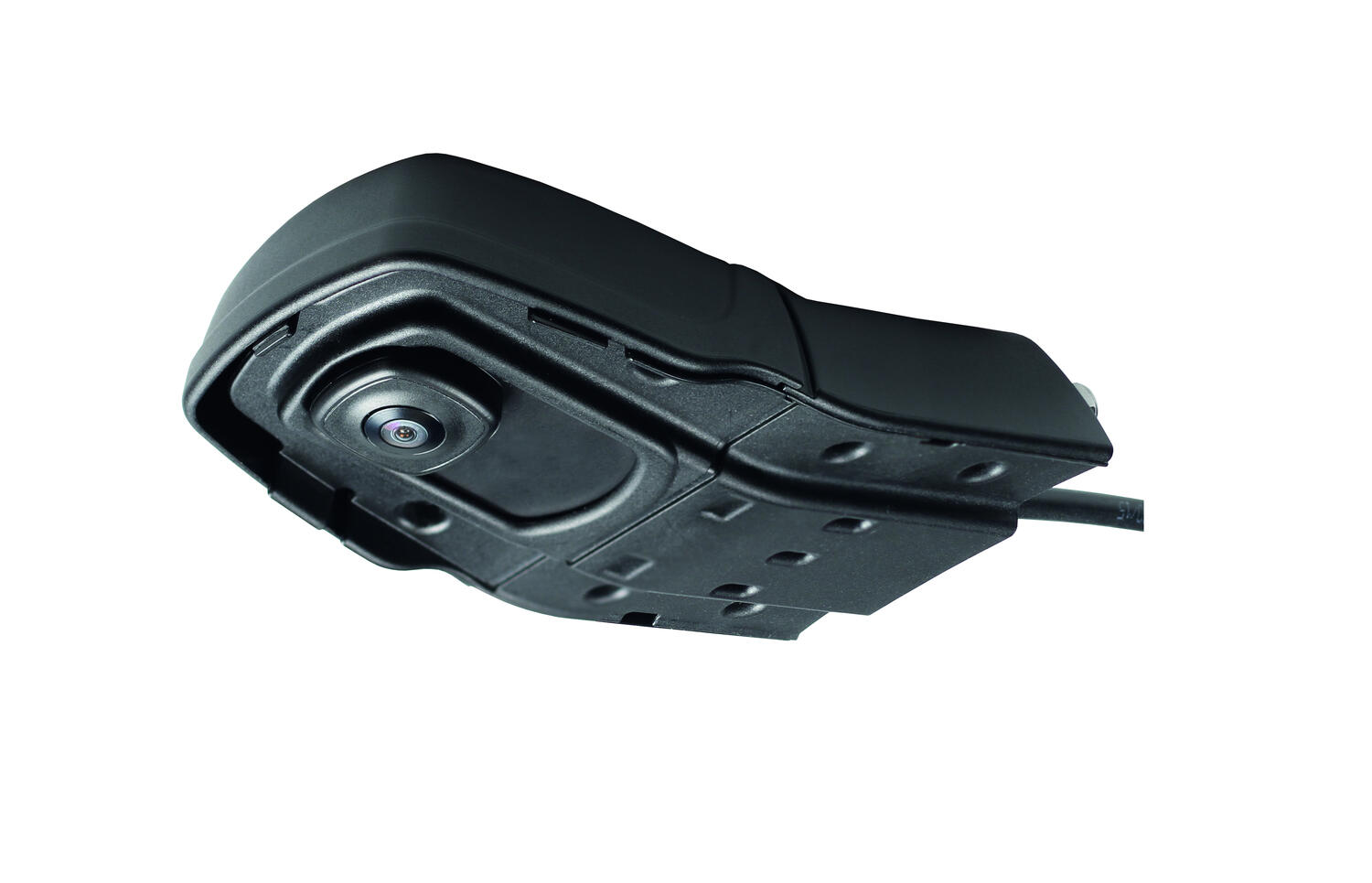

  • Bracket HMOS CornerEye: Bracket for GMSL Camera HMOS
  • Monitor Bracket: Montor Bracket Suitable for 10" or 7" HLED



Contact us to discuss your application and we can advise on what kit you need.

  • 270° Field of view
  • Aerodynamic design
  • Plug and play
  • 12-24 V DC supply voltage

Selected variant


CornerEye camera kit

Art:

Selected variant

Specifications

Camera Angle 180
Display Size 10
IP Class IP67, IP68, IP69K
Supply Voltage DC Max 24
Supply Voltage DC Min 12
Temperature range from -40
Temperature range to 85

Product description

The camera system that gives you an overview of the "dead angle" both in front and on the side of the truck. Prevent accidents with the help of CornerEye, with this unique camera system you are constantly on the lookout for cyclists, pedestrians, objects and anything else that may appear in the daily traffic.

Classes_orlaco_truck.jpg      CornerEye_monitor_image_picture.jpg

Kit can include:

  • Digital GMSL Camera HMOS: high speed digital GMSL camera, Various lens angles from 30° to 180°
  • Digital GMSL monitor HLED 7": Optical bonded panel with touch pads, auto brightness control
  • Digital GMSL Monitor HLED 10": LCD mdule with white LED backlight, auto brightness control
  • Digital GMSL HMOS Camera Switcher: Inputs and power supply for up to 4 cameras, output for monitor
  • Digital GMSL standard and dynamic cables: EMC screening nd ADR approved
  • Bracket HMOS CornerEye: Bracket for GMSL Camera HMOS
  • Monitor Bracket: Montor Bracket Suitable for 10" or 7" HLED



Contact us to discuss your application and we can advise on what kit you need.
