PHOTONEO

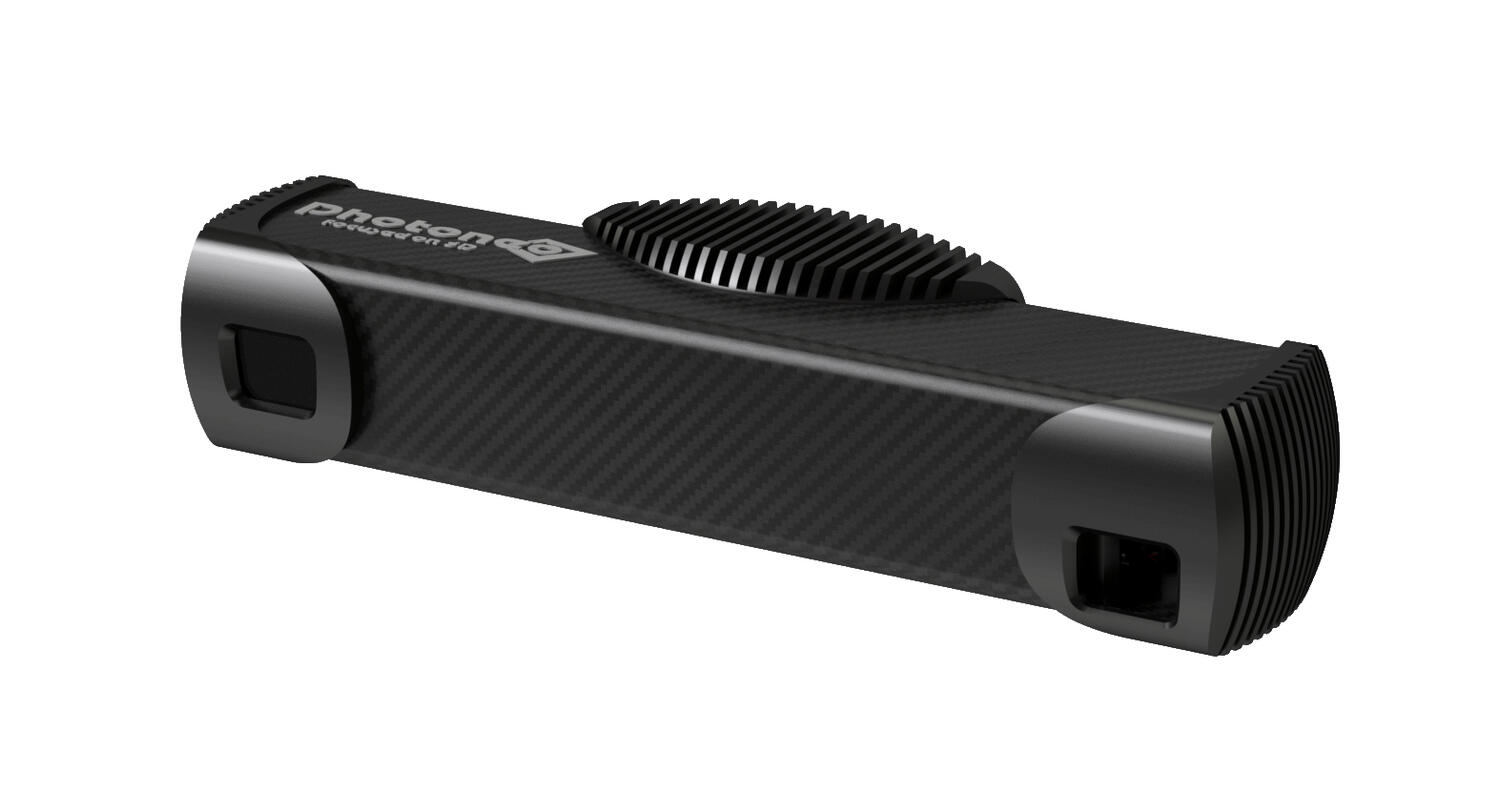

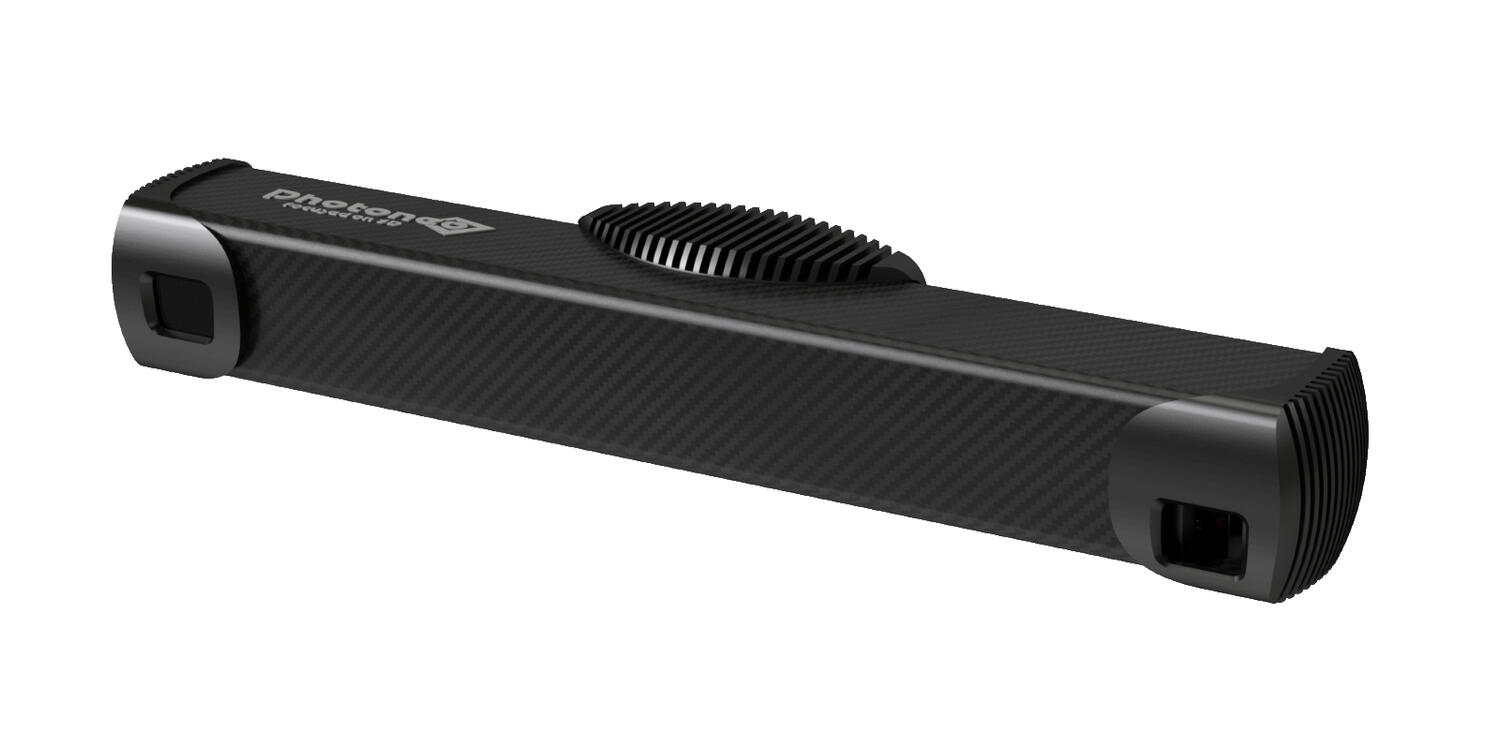

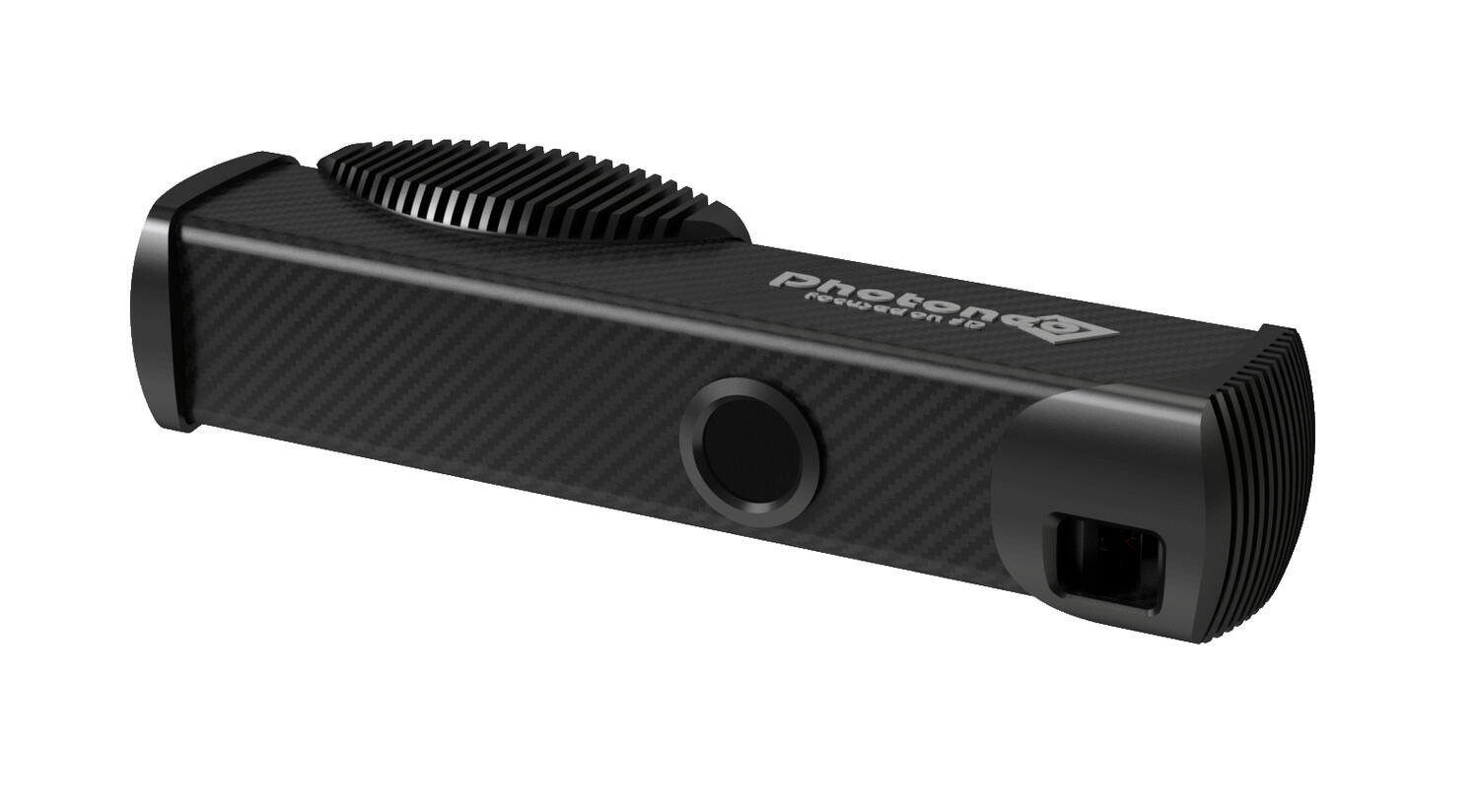

Photoneo PhoXi 3D-Sensor

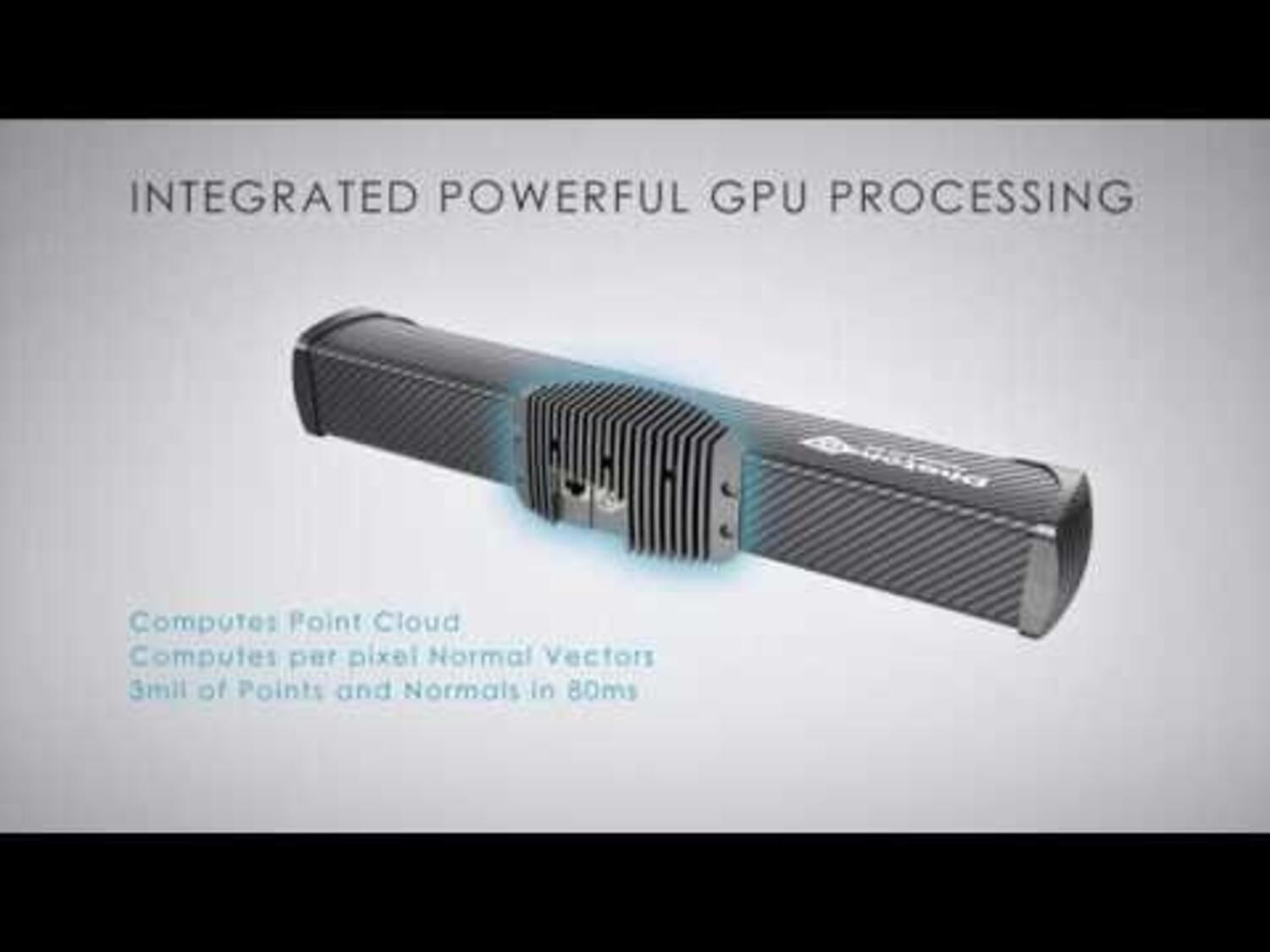

Photoneo develops advanced 3D scanners based on the NVIDIA Pascal Architecture GPU with 256 CUDA cores.

The PhoXi series is available in five different sizes, which means that there is a scanner for all types of applications. With a user-friendly API, you can quickly and easily set up and adapt it for your particular application. PhoXi uses the "advanced structured light approach" which allows it to scan all types of surfaces.



  • Absolute accuracy = The precision of point measurement
  • Z-noise = Noise in depth
  • Frame rate = Max number of frames per second
  • Data acquisition time = How long it takes to collect data. It depends on, among other things, the lighting conditions or whether it is a shiny object or not.
  • 3D points throughput = The number of 3D points that can be created when doing a sequential scan
  • Point size = The distance between two measurement points
  • Resolution up to 3,2M 3D point
  • Gigabit Ethernet Interface
  • Factory calibrated, easy to integrate
  • Light and durable carbon body
  • Low temperature expansion coefficient

Selected variant

Avaible in several variants

Selected variant

Specifications

Calibration accuracy (1 σ) 0.035
DC input PoE & 24V
Depth 68
GPU NVIDIA Pascal Architecture GPU (256 CUDA cores)
Height 77
IP Class IP65
Optimal scanning distance 181
Point to point distance 0.055 mm
Scanning area at sweet spot 118 x 78 mm
Scanning range max 205
Scanning range min 161
Scanning time 250 – 2000 ms
Temporal noise (1 σ) 0.03
Weight 900
Width 296

Technical illustrations

Product description

Photoneo develops advanced 3D scanners based on the NVIDIA Pascal Architecture GPU with 256 CUDA cores.

The PhoXi series is available in five different sizes, which means that there is a scanner for all types of applications. With a user-friendly API, you can quickly and easily set up and adapt it for your particular application. PhoXi uses the "advanced structured light approach" which allows it to scan all types of surfaces.



  • Absolute accuracy = The precision of point measurement
  • Z-noise = Noise in depth
  • Frame rate = Max number of frames per second
  • Data acquisition time = How long it takes to collect data. It depends on, among other things, the lighting conditions or whether it is a shiny object or not.
  • 3D points throughput = The number of 3D points that can be created when doing a sequential scan
  • Point size = The distance between two measurement points

Accessories

Related products

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

telehaase
Blog

Smarter Control Starts Here Explore the TELE Haase Range at Demesne

In complex, high-stakes electrical environments, precision, safety, and performance aren't optional, they're essential. That’s why at Demesne Electrical, we supply solutions that go beyond compliance, empowering engineers and panel builders to build smarter, more connected systems.
One of our most trusted partners in this space is TELE Haase, an industry leader in intelligent monitoring and automation components. From load protection to digital performance sensors, the TELE range offers future-focused tools that streamline system diagnostics and improve long-term reliability.

puls
Blog

Power Supply Efficiency Testing – What Irish Electrical Engineers Need to Know

Think your power supply is running at 95% efficiency?
Don’t just trust the datasheet, test it. In this post, we break down how to accurately measure power supply efficiency using the right tools, setups, and real-world conditions. Essential reading for anyone working with industrial power in Ireland.

My favourites Articles Calibration accuracy (1 σ) Optimal scanning distance Point to point distance Scanning area at sweet spot Scanning range max Scanning range min Scanning time Temporal noise (1 σ) Weight Width Price
0.035
181
0.055 mm
118 x 78 mm
205
161
250 – 2000 ms
0.03
900
296
0.05
442
0.174 mm
360 x 272 mm
520
384
250 – 2250 ms
0.05
900
296
0.1
650
0.286 mm
590 x 404 mm
1118
458
250 – 2500 ms
0.1
950
416
0.2
1239
0.524 mm
1082 x 772 mm
2150
870
250 – 2750 ms
0.19
1100
616
0.5
2326
0.947 mm
1954 x 1459 mm
3780
1680
250 – 3000 ms
0.4
1200
941
