STEGO

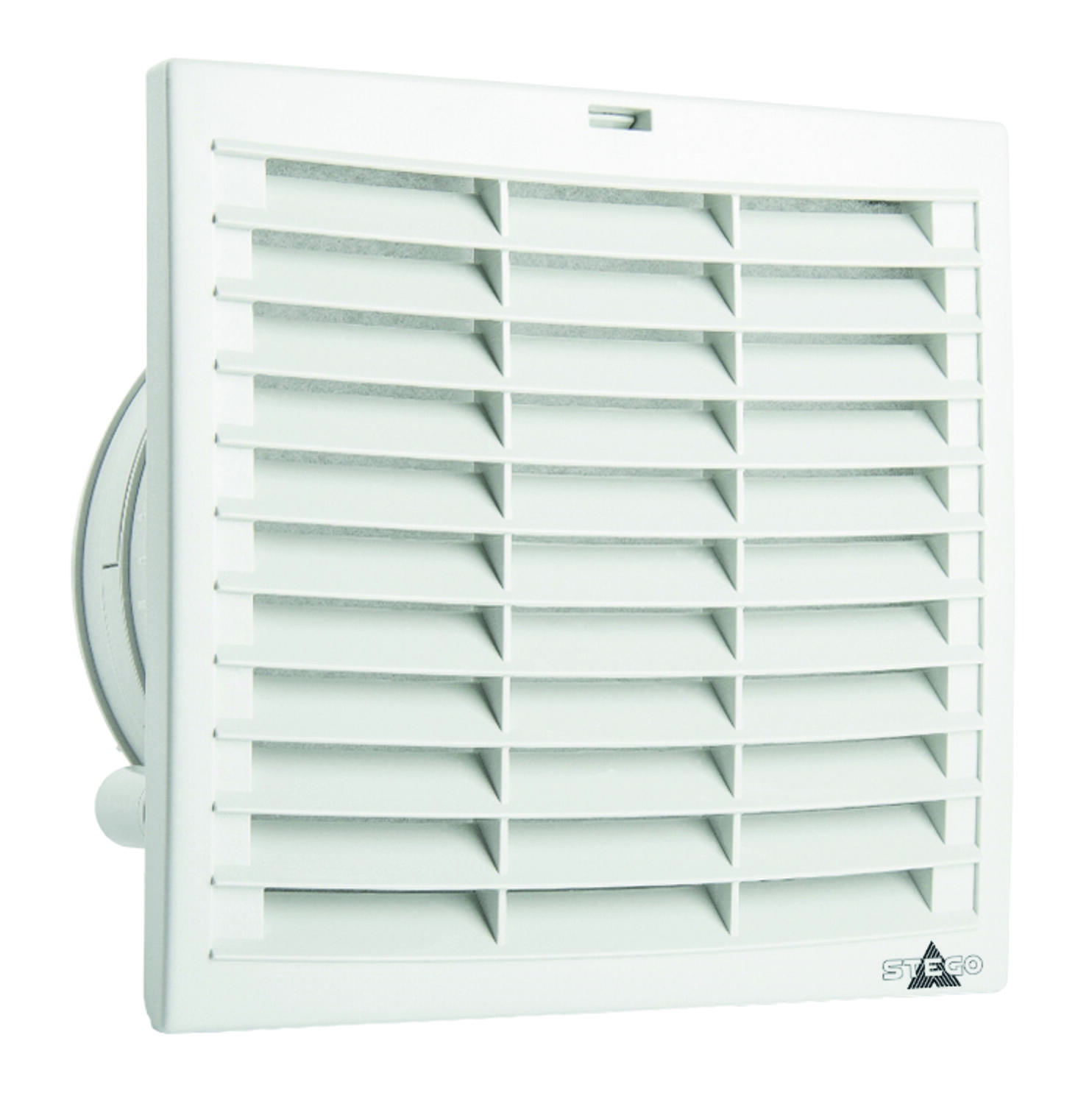

Filter fan Plus - Airflow Out
FPO
Filter fans are used to provide 'cooling' by forced air-circulation in enclosures and cabinets containing electrical/electronic and other components. The interior temperature of an enclosure can be reduced by drawing cooler, filtered outside air into the enclosure and expelling hot inside air. The resulting airflow prevents formation of localised hot pockets and protects electronic components from overheating.
- New air-flap outlet technology for high airflow
- Single filter mat system
- Easy mounting
- IP54
Selected variant
Selected variant
Specifications
| Air Capacity | 536 |
|---|---|
| Air Volume Free Blowing | 536 |
| Air Volume Free Blowing With G3 Filter | 281 |
| Approvals | CE, cULus, EAC, NEMA, RoHS, UL, UL E234324, UV - UL746C (f1), VDE |
| Color | Grey RAL 7035 |
| Depth | 173 |
| Flamklass | UL94-V0 |
| Frequenze | 50/60 Hz |
| Height | 257 |
| Humidity Storage | <75% RH |
| IP Class | IP54 |
| Life span | 56000 h |
| Material fan | Aluminium |
| Material of rotor | Steel |
| Material Plastic Housing | Plastic |
|---|---|
| Number of fans | 1 |
| Operating Humidity | < 75% RH |
| Operational Temperature | -25°C ... +65°C |
| Power Consumption | 64 |

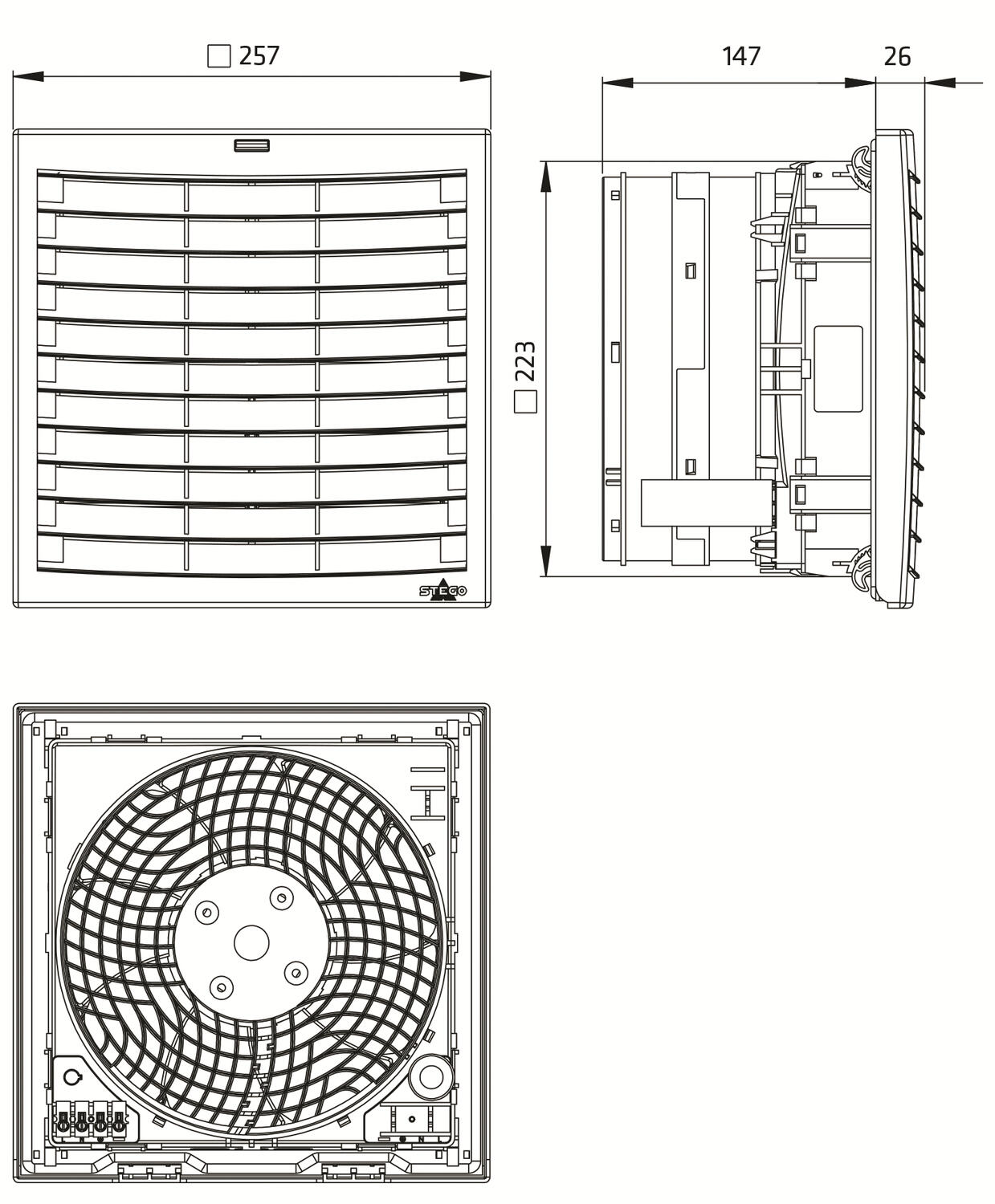

| Punching | 223x223 mm |
| Sound level | 64 |
| Storage temperature | -40°C ... +70°C |
| Structural Depth | 147 |
| Weight | 2.4 |
| Width | 257 |
| Voltage max | 230 V ac |
| Voltage min | 230 V ac |
Product description
The Filter Fan Plus series uses a new air-flap technology on the air outlet side, thereby reaching an unparalleled high degree of airflow. A unique ratchet mechanism is used for easy installation. It provides safe and secure mounting while guaranteeing a tight seal.
Depending on the requirements there are two optional systems available – the or the FPO system

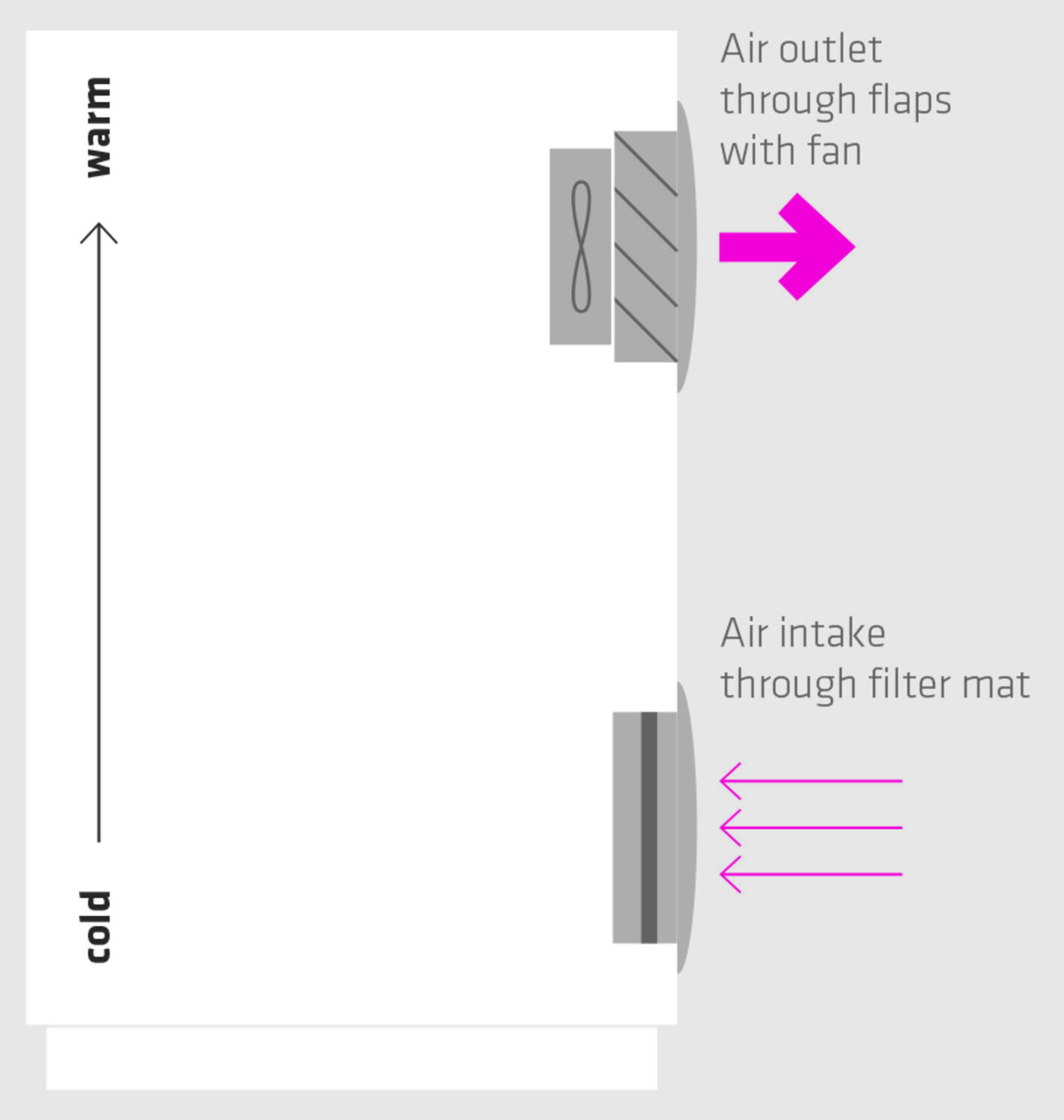

The FPO system consists of an intake filter and exhaust filter fan with air flaps. The Filter Fan Plus series has been designed for indoor use. For added outdoor applications a protective hood is available.
