CONTA-CLIP

Triple deck terminals - ZIKD 2.5mm²

ZIKD

  • Material polyamide 6.6
  • Temperature resistance -40 °C...+120 °C
  • Flammability class V0

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Accessories & Related products

Selected variant

Specifications

Approvals UL, CSA, GL, CSA US, cUL, KEMA KUR, EAC
Color Green
Connections 3 x 2
Contamination degree 3
Country of origin CZ
Cross connect channels 3
Cross section single wire from 0.5
Cross section single wire to 4
Cross section stranded wire from 0.5
Cross section stranded wire to 4
Cross section stranded with ferrule from 0.5
Cross section stranded with ferrule to 2.5
Cross-Section 2.5
CSA test standard C22.2 No 158
CSAus test standard UL 1059
cUL test standard C22.2 No 158
EAC test standard TR ZU 004/2011
Flamklass UL94-V0
GL test standard IEC 60947-7-1:2009
Height TS 35/7.5 68
Insulation Material Polyamide 6.6
KEMA KEUR test standard EN 60947-7-1:2009
Length 116.2
Mounting TS 35
Number of levels 3
Number of test pick off options 6
Operating temperature from -40
Operating temperature to 120
Overvoltage category III
Pack Size 50
Plug gauge acc. EN 60 947-1 A3
Rated Current CSA 15
Rated current CSAus 15
Rated current cUL 15
Rated Current IEC 24
Rated Current To UL 15
Rated impulse voltage 6
Rated wire cross section from (AWG) 20
Rated wire cross section to (AWG) 12
Rated voltage CSAus 300
Rated voltage cUL 300
Rated Voltage IEC 500
Rated Voltage To UL 300
Stripping Length 10
Tariff code 85369010
UL test standard UL 1059
Weight 17.37
Width 5.1
Voltage CSA 300

Downloads

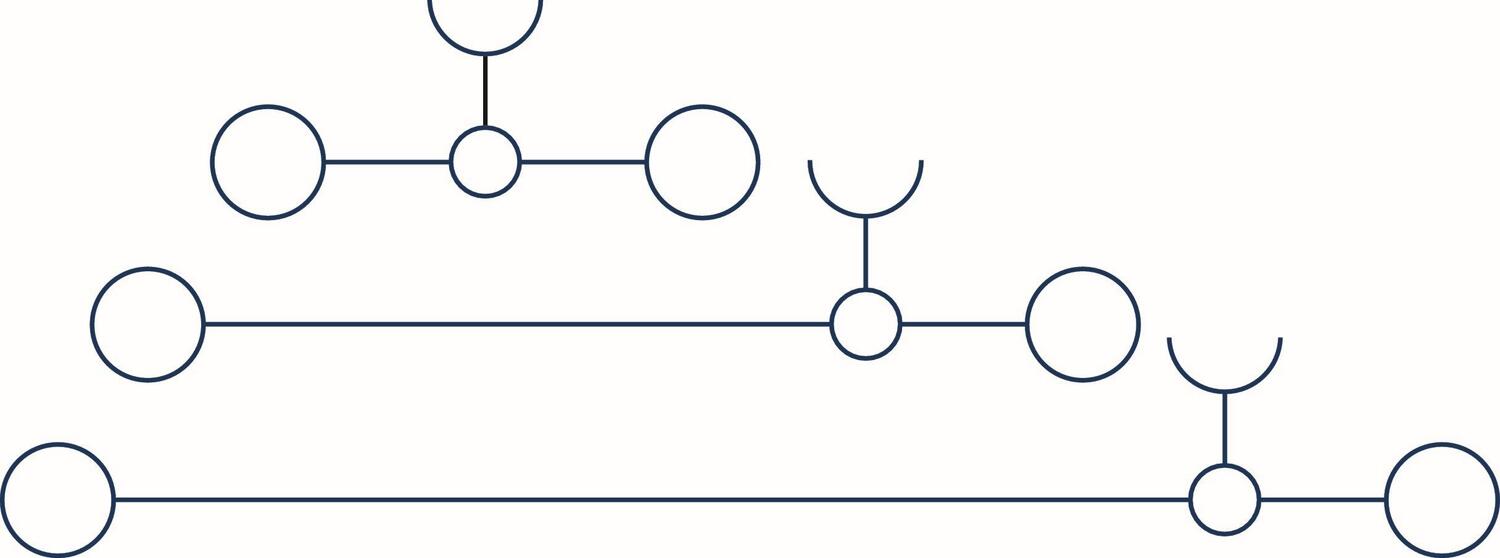

Measurements and connections

Accessories

Related products

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

draw wire
Blog

Precision in Motion: Kübler Linear Measurement Systems at Demesne Electrical

Precise, Durable Linear Measurement from Kübler
Browse our range of Kübler draw wire encoders and linear measurement systems, designed for accurate position and speed sensing in industrial and OEM applications. Built for tough environments. Trusted by automation professionals.

hora
Blog

New on the Market: RKA Aluminium Terminal Blocks for Copper and Aluminium Conductors

Designed by HORA eTec, the RKA series offers a complete lineup of aluminium terminal blocks built for both aluminium and copper conductors. Every model in the range includes push-through protection, is finger-safe, and is built with installation efficiency in mind. From compact control panels to large-scale systems, here’s the full breakdown—from the RKA 16 to the RKA 300.

My favourites Articles Additional information Color Connections Country of origin Cross connect channels Explosion proof GL test standard Height TS 35/7.5 KEMA KEUR test standard Length Rated Current CSA Rated current CSAus Rated current cUL Rated Current IEC Rated Current To UL Rated impulse voltage Rated voltage CSAus Rated voltage cUL Rated Voltage IEC Rated Voltage To UL Weight Voltage CSA Price
299848_877.tif
ZIKD 2,5 GN
Art:
3590.1 Copied
Green
3 x 2
CZ
3
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
17.37
300
ZIKD 2,5 BG
Art:
3590.2 Copied
Beige
3 x 2
CZ
3
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
17.37
300
ZIKD 2,5 OG
Art:
3590.3 Copied
Orange
3 x 2
CZ
3
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
23.75
300
ZIKD 2,5 BU
Art:
3590.5 Copied
Blue
3 x 2
CZ
3
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
23.75
300
ZIKD 2,5/SV OG
Art:
3591.3 Copied
connected vertically
Orange
6
CZ
1
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
25.4
300
ZIKD 2,5/SV BU
Art:
3591.5 Copied
connected vertically
Blue
6
CZ
1
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
25.4
300
ZIKD 2,5/L-L-N BG
Art:
17037.2 Copied
Beige
3 x 2
DE
3
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
23.75
300
ZIKD 2,5/PE/L/L BG
Art:
3592.2 Copied
Beige
3 x 2
CZ
2
IEC 60947-7-1:2009, IEC 60947-7-2:2009
68
EN 60947-7-1:2009, EN 60947-7-2:2009
116.2
15
15
15
24
15
6
300
300
500
300
28
300
ZIKD 2,5/PE/N/N BU
Art:
3592.5 Copied
Blue
3 x 2
CZ
2
IEC 60947-7-1:2009, IEC 60947-7-2:2009
68
EN 60947-7-1:2009, EN 60947-7-2:2009
116.2
15
15
15
24
15
6
300
300
500
300
28
300
ZIKD 2,5/SV/PE GNYE
Art:
3593.2 Copied
connected vertically
Green/yellow
6
CZ
0
IEC 60947-7-1:2009, IEC 60947-7-2:2009
68
EN 60947-7-1:2009, EN 60947-7-2:2009
116.2
30.4
ZIKD 2,5/PE/L/N BG
Art:
3594.2 Copied
Beige
3 x 2
CZ
2
IEC 60947-7-1:2009, IEC 60947-7-2:2009
68
EN 60947-7-1:2009, EN 60947-7-2:2009
116.2
15
15
15
24
15
6
300
300
500
300
30.6
300
ZVMAK 2,5 BG
Art:
3582.2 Copied
Beige
3 x 2 + 1
DE
0
IEC 60947-7-1:2009
73
EN 60947-7-1:2009
103.5
15
15
15
24
15
6
300
300
400
300
27.4
300
ZVMAK 2,5 BU
Art:
3582.5 Copied
Blue
3 x 2 + 1
DE
0
IEC 60947-7-1:2009
73
EN 60947-7-1:2009
103.5
15
15
15
24
15
6
300
300
400
300
27.4
300
299848_877.tif
ZIKD 2,5 Ex BG
Art:
1708.2 Copied
Beige
3 x 2
DE
3
Yes
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
23.75
300
299848_877.tif
ZIKD 2,5 Ex BU
Art:
1708.5 Copied
Blue
3 x 2
DE
3
Yes
IEC 60947-7-1:2009
68
EN 60947-7-1:2009
116.2
15
15
15
24
15
6
300
300
500
300
23.75
300
