Screw thermocouple terminals - TSK
TSK

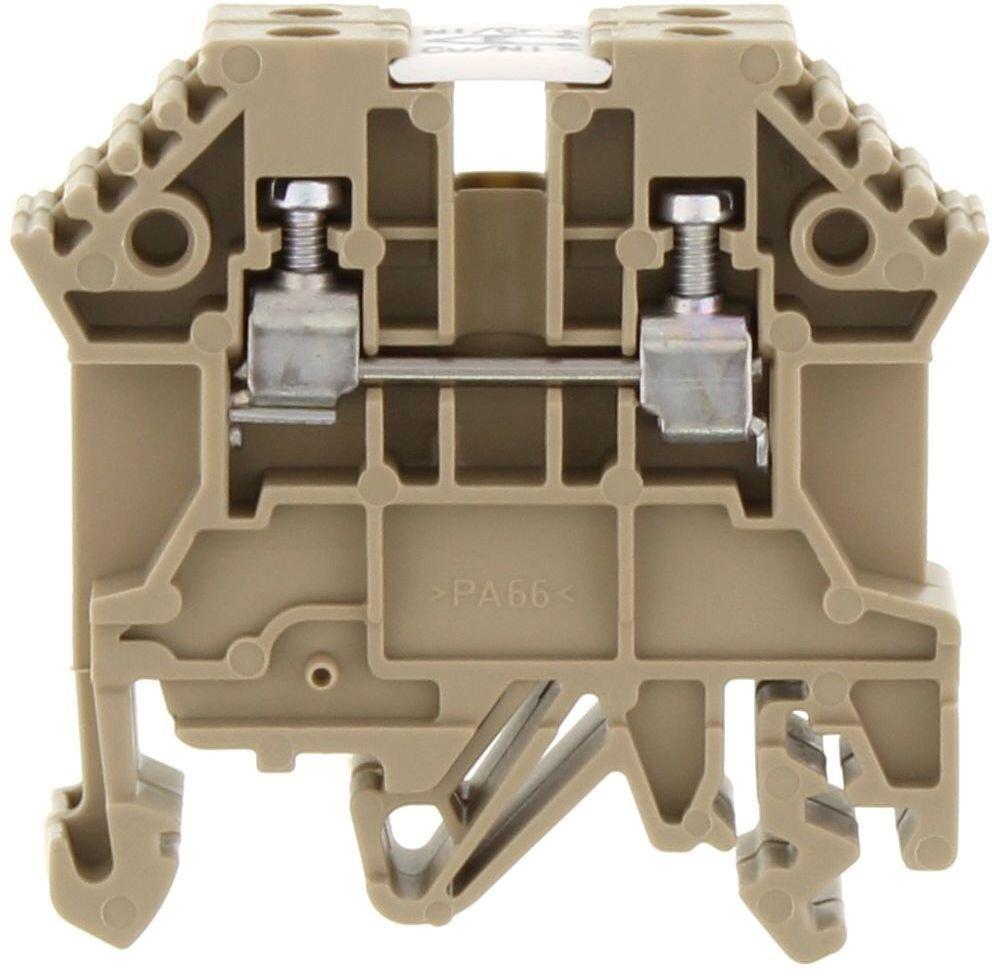

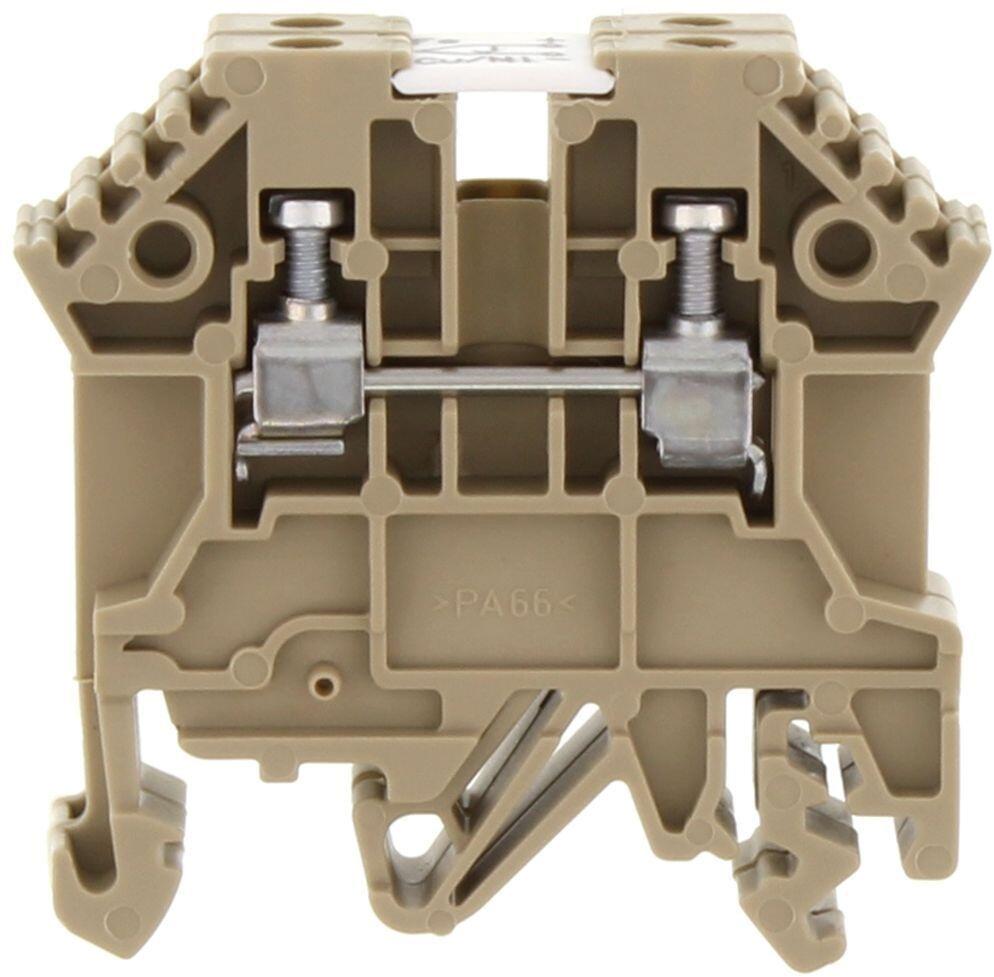

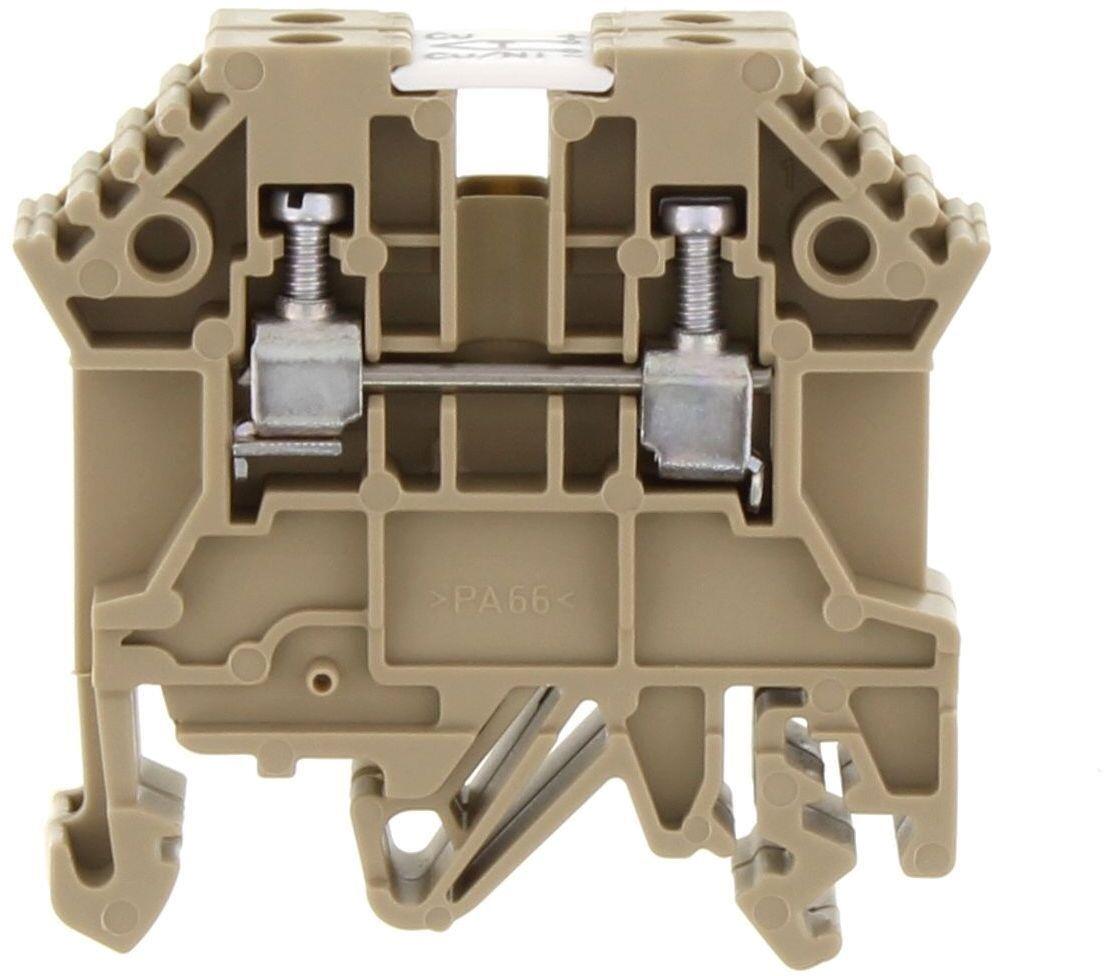

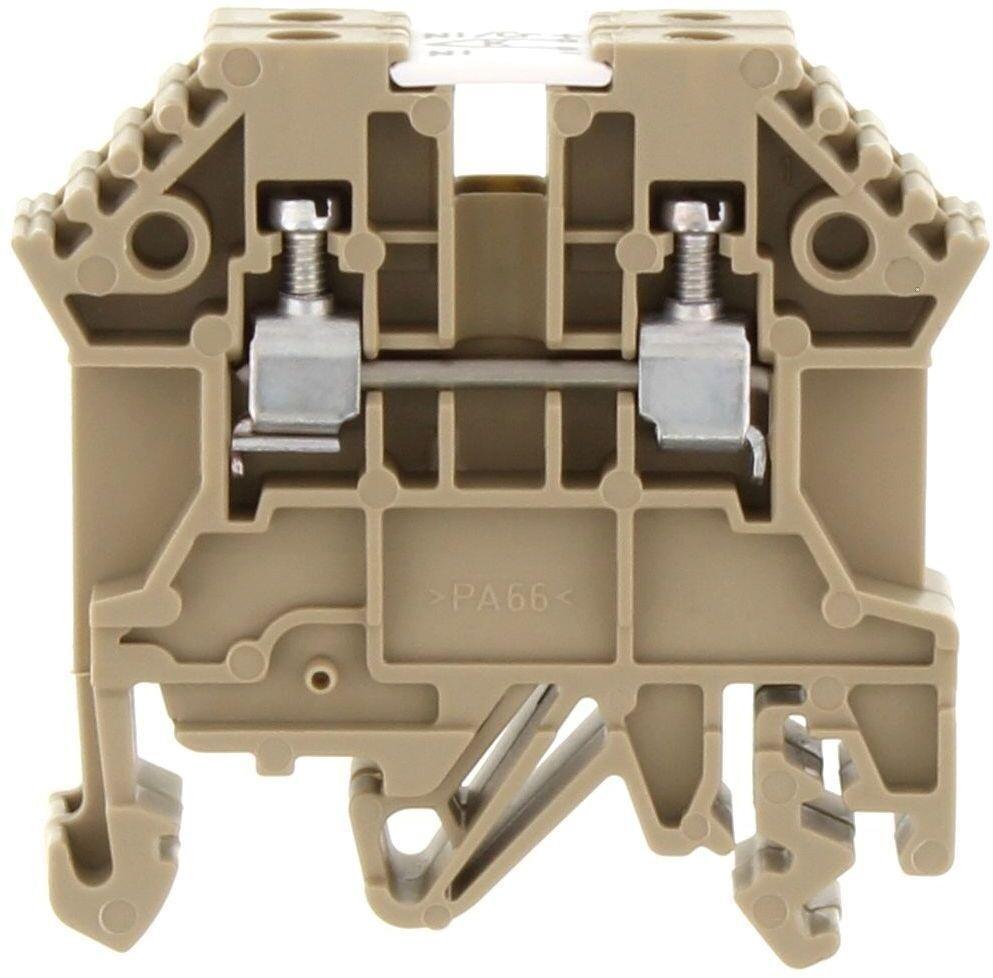

The TSK series from Contaclip can be used to extend thermocouple measurement circuits without introducing errors caused by incompatible junction materials.
The terminals can be used to clearly label the thermal terminal pair in use.
The busbars on the termocouple terminals are made of the same materials as the compensating lines, in compliance with DIN 43713/DIN 43714.
This ensures thermocouple signals are transmitted accurately on the junction between the thermocouple, thermocouple terminal and compenating line.
Thus the base value maintained in accordance with DIN/IEC 584.

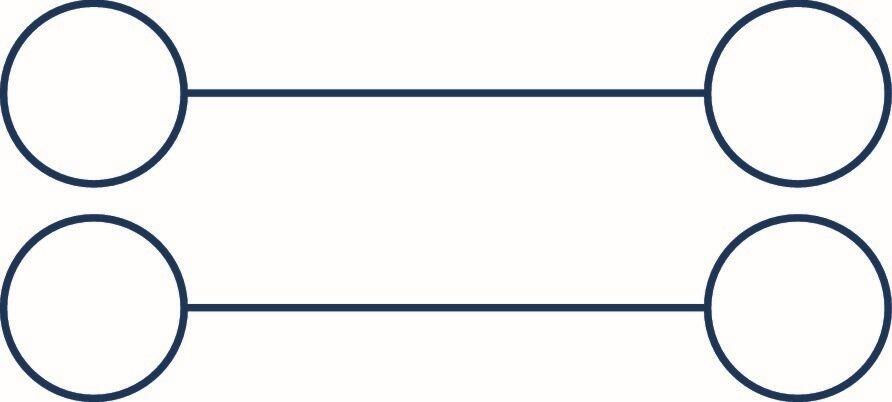

- Two-pole block per thermal pair
- Thermal pair is clearly labelled on the terminal block
- Terminal width of a thermal pair is 10mm
- Material of busbars corresponds to material of compensating lines
Selected variant
Selected variant
Specifications
| Approvals | EAC |
|---|---|
| Color | Beige |
| Connections | 4 |
| Contamination degree | 3 |
| Country of origin | DE |
| Cross section single wire from | 0.2 |
| Cross section single wire to | 4 |
| Cross section stranded wire from | 0.2 |
| Cross section stranded wire to | 4 |
| Cross section stranded with ferrule from | 0.2 |
| Cross section stranded with ferrule to | 2.5 |
| Cross-Section | 2.5 |
| EAC test standard | TR ZU 004/2011 |
| Flamklass | UL94-V2 |
| Height TS 32 | 51.5 |
| Height TS 35/7.5 | 47 |
| Length | 48 |
| Number of levels | 1 |
|---|---|
| Operating temperature from | -40 |
| Operating temperature to | 105 |
| Overvoltage category | III |
| Pack Size | 50 |
| Plug gauge acc. EN 60 947-1 | A3 |
| Rated wire cross section from (AWG) | 22 |
| Rated wire cross section to (AWG) | 12 |
| Screw size | M 2,5 |
| Stripping Length | 7 |
| Tariff code | 85369010 |
| Torque max | 0.8 |
| Torque Min | 0.4 |
| Weight | 14.56 |
| Width | 10 |
Product description
The TSK series from Contaclip can be used to extend thermocouple measurement circuits without introducing errors caused by incompatible junction materials.
The terminals can be used to clearly label the thermal terminal pair in use.
The busbars on the termocouple terminals are made of the same materials as the compensating lines, in compliance with DIN 43713/DIN 43714.
This ensures thermocouple signals are transmitted accurately on the junction between the thermocouple, thermocouple terminal and compenating line.
Thus the base value maintained in accordance with DIN/IEC 584.
