Voltage Distribution Terminals - PPVK

DIN rail voltage distribution terminals for efficient power distribution in control panels and industrial switchboards.
  • Colour coded terminals
  • 35% Space saving
  • Bidirectional distribution
  • Efficient Power Distribution
  • DIN Rail Mounting

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Color Grey
Connections 6
Contamination degree 3
Country of origin DE
Cross connect channels 2
Cross section single wire from 0.25
Cross section single wire to 1.5
Cross section stranded wire from 0.2
Cross section stranded wire to 1.5
Cross section stranded with ferrule from 0.25
Cross section stranded with ferrule to 1
Cross-Section 1.5
Flamklass UL94-V0
Height 42
Height TS 35/7.5 43.5
Length 86
Number of levels 1
Number of terminals per level 6
Operating temperature from -40
Operating temperature to 120
Overvoltage category III
Pack Size 50
Rated Current IEC 16
Rated impulse voltage 4
Rated wire cross section from (AWG) 26
Rated wire cross section to (AWG) 14
Rated Voltage IEC 250
Stripping Length 8
Tariff code 85369010
Weight 8.674
Width 3.5

Downloads

Product description

The CONTA-CLIP PPVK Voltage Distribution Terminals are high performance distribution blocks designed for efficient and organised power distribution within electrical control panels and switchboards. These terminals allow a single power input to be safely distributed to multiple outgoing circuits, simplifying wiring and improving panel layout.

Designed for DIN rail mounting, PPVK distribution terminals provide reliable electrical connections while reducing wiring complexity in industrial automation systems. Their compact construction helps optimise space inside control cabinets while ensuring secure and clearly structured wiring.


Manufactured by CONTA-CLIP, a trusted German manufacturer of connection technology, PPVK terminals offer high mechanical stability and dependable electrical performance, making them ideal for panel builders, OEMs, and electrical contractors.

Accessories

wohner
Blog

Wohner 60 Classic and Crossboard

Modular busbar systems that streamline power distribution, improve safety, and speed up panel builds.

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

My favourites Articles Color Connections Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Cross-Section Number of terminals per level Pack Size Plug gauge acc. EN 60 947-1 Rated Current IEC Rated wire cross section from (AWG) Rated wire cross section to (AWG) Stripping Length Width Price
SET PPVK6/1.5/24A 2 x 24 Dist Block
Art:
27321.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
27320_6 - Main.jpg
SET PPVK6/1.5/12A 2 x 12 Dist Block
Art:
27320.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

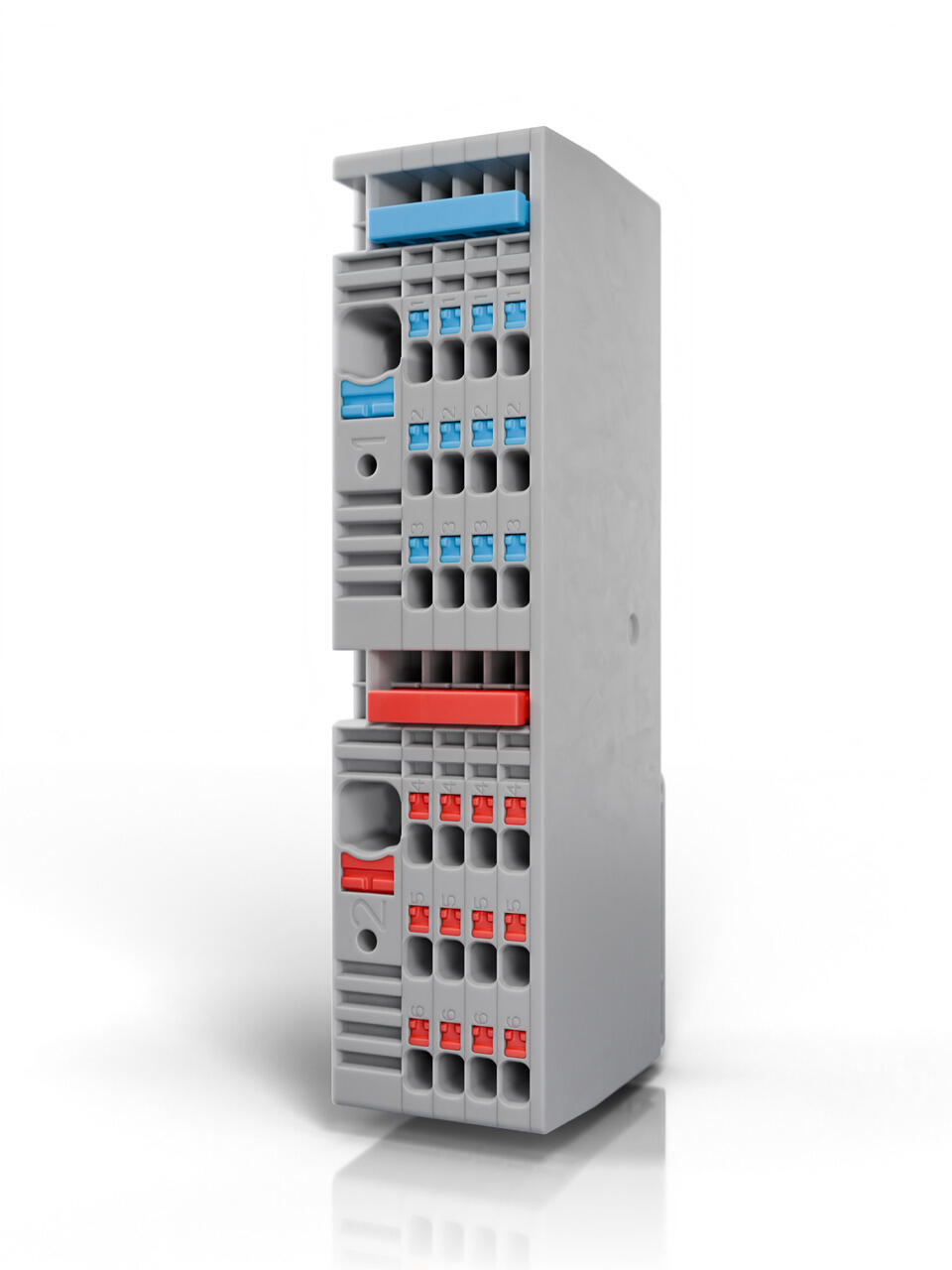

SET PPVK 2X6/1.5/12A 2 x 12 Dist Block
Art:
27322.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

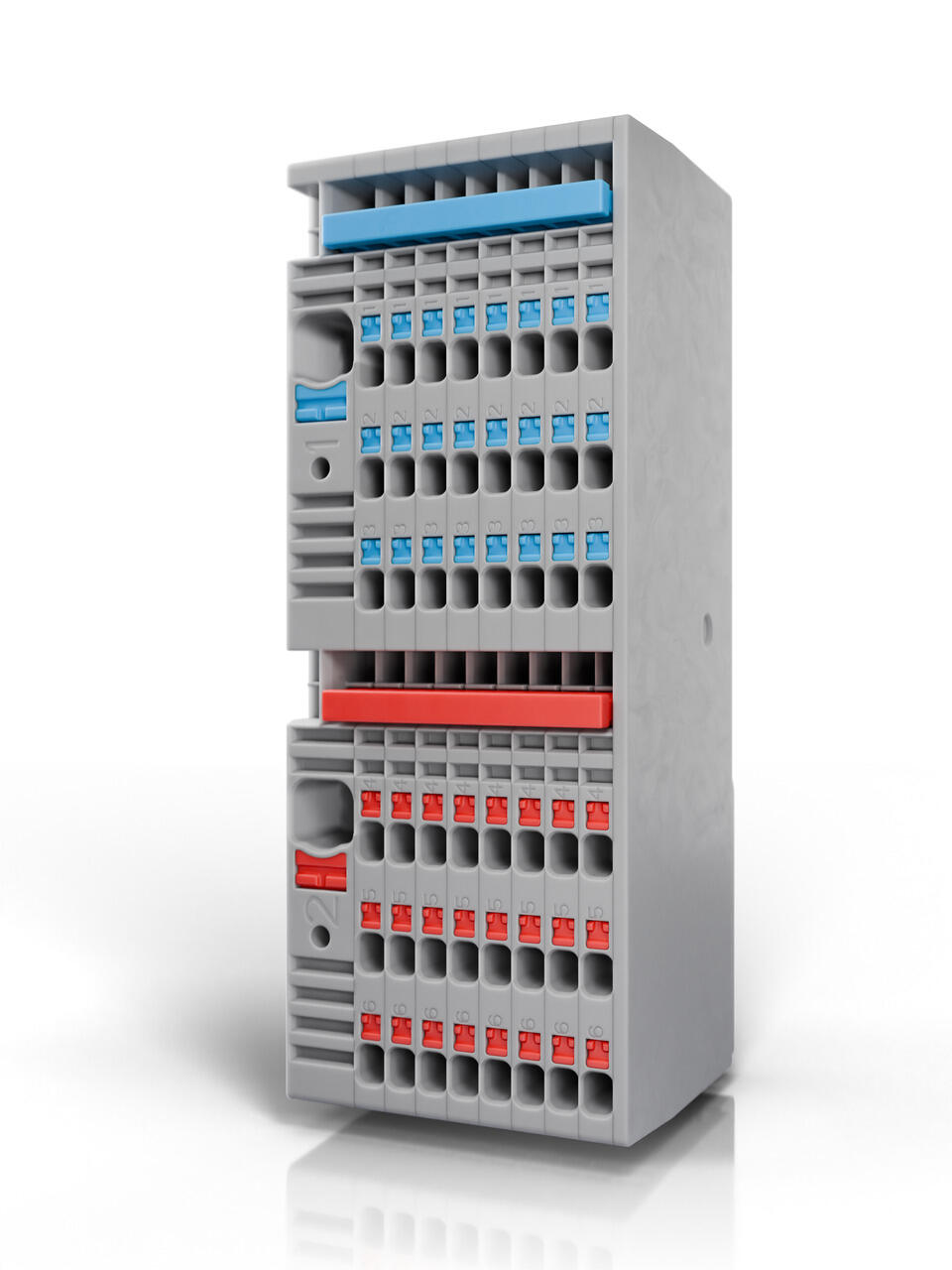

SET PPVK 2X6/1.5/24A 2 x 24 Dist Block
Art:
27323.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVK1.5/6A/OG Dist Term Org Push - Blue
Art:
27053.1 Copied
Green
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

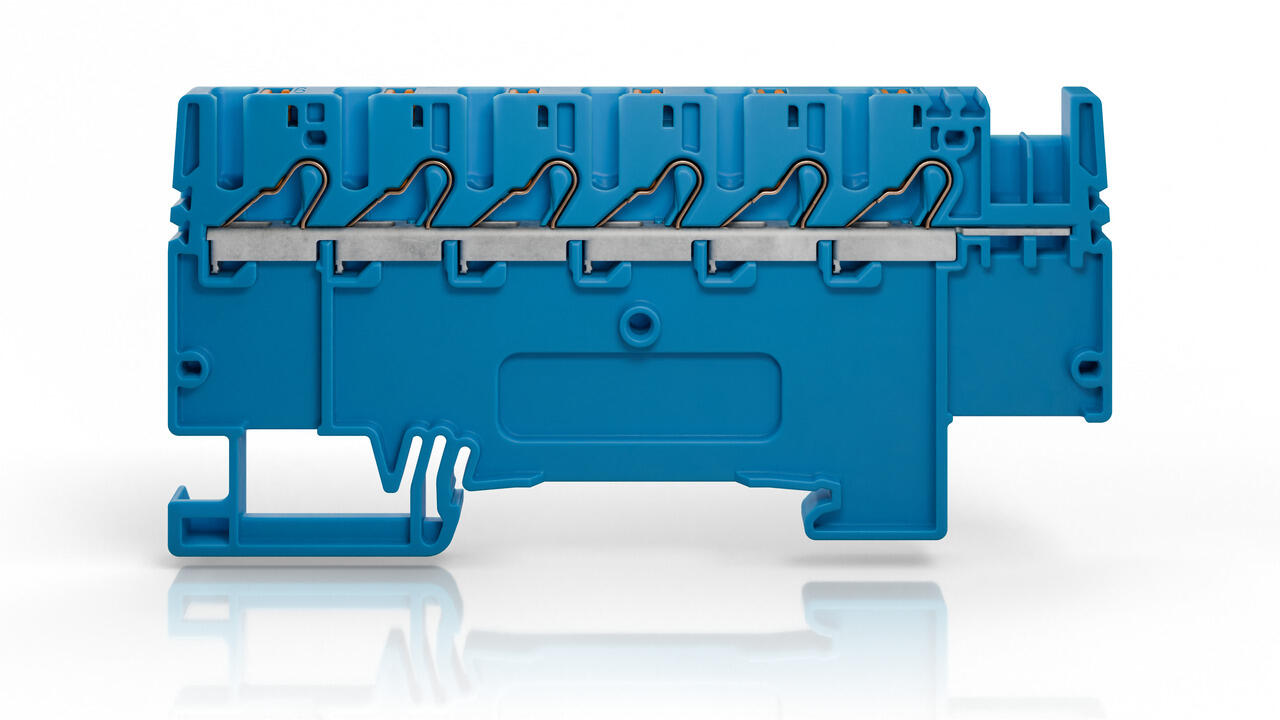

PPVK1.5/6A/OG Dist Term Org Push - Blue
Art:
27053.5 Copied
Blue
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVK1.5/6A/OG Dist Term Orange Push
Art:
27053.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVK1.5/6A/RD Dist Term Red Push
Art:
27054.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

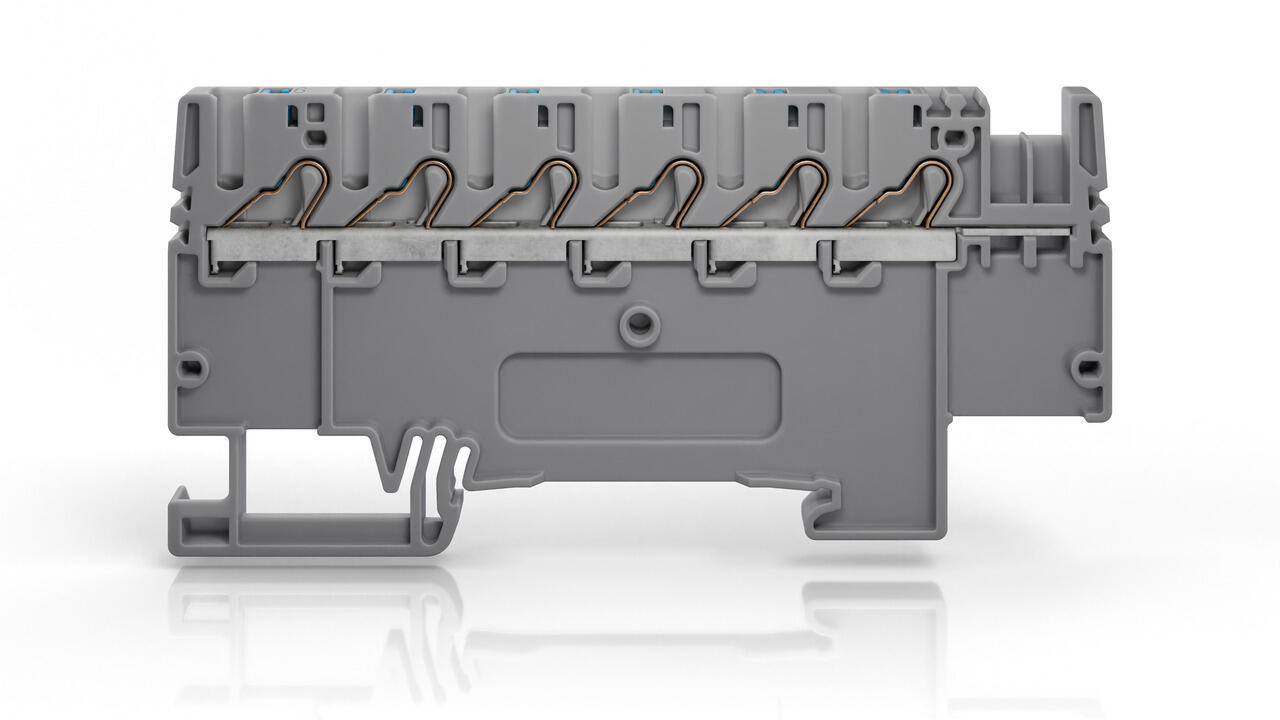

PPVK1.5/6A/BU Dist Term Blue Push
Art:
27055.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

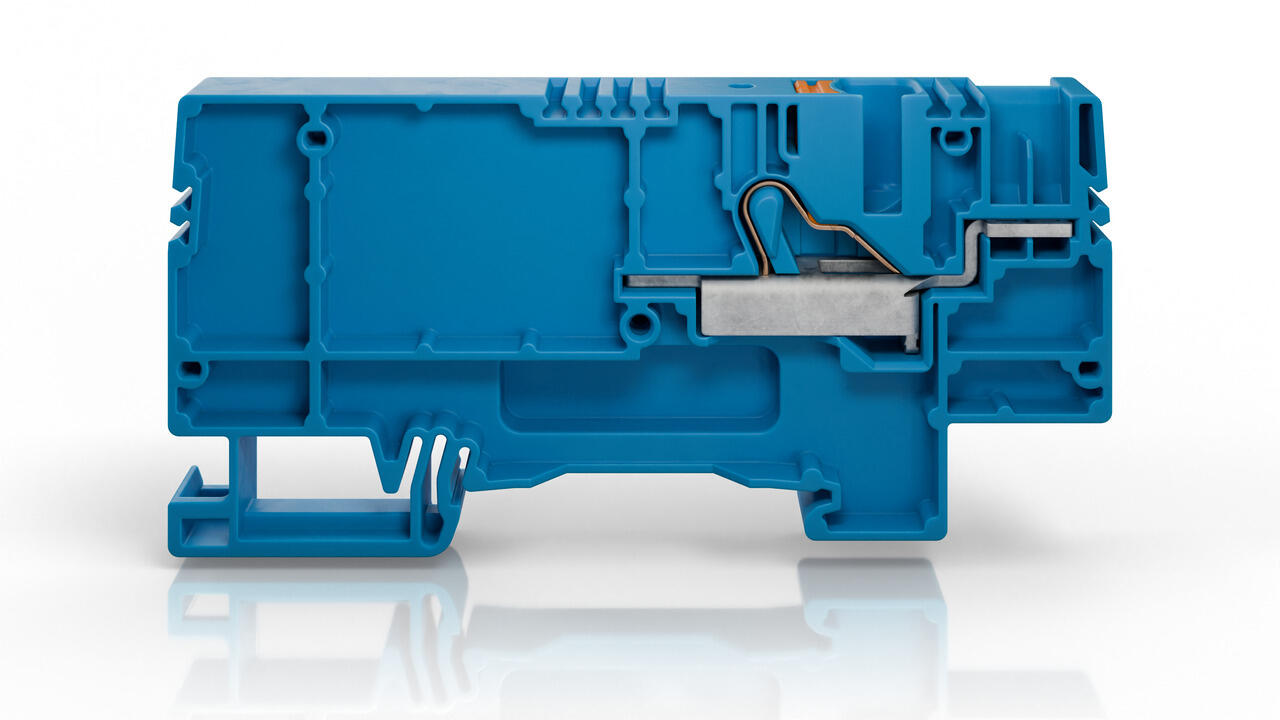

PPVKE 6/1A/OG Dist Term Orange Push
Art:
27056.5 Copied
Blue
1
0.5
10
0.5
6
0.5
6
6
6
20
41
26
14
8
8.1

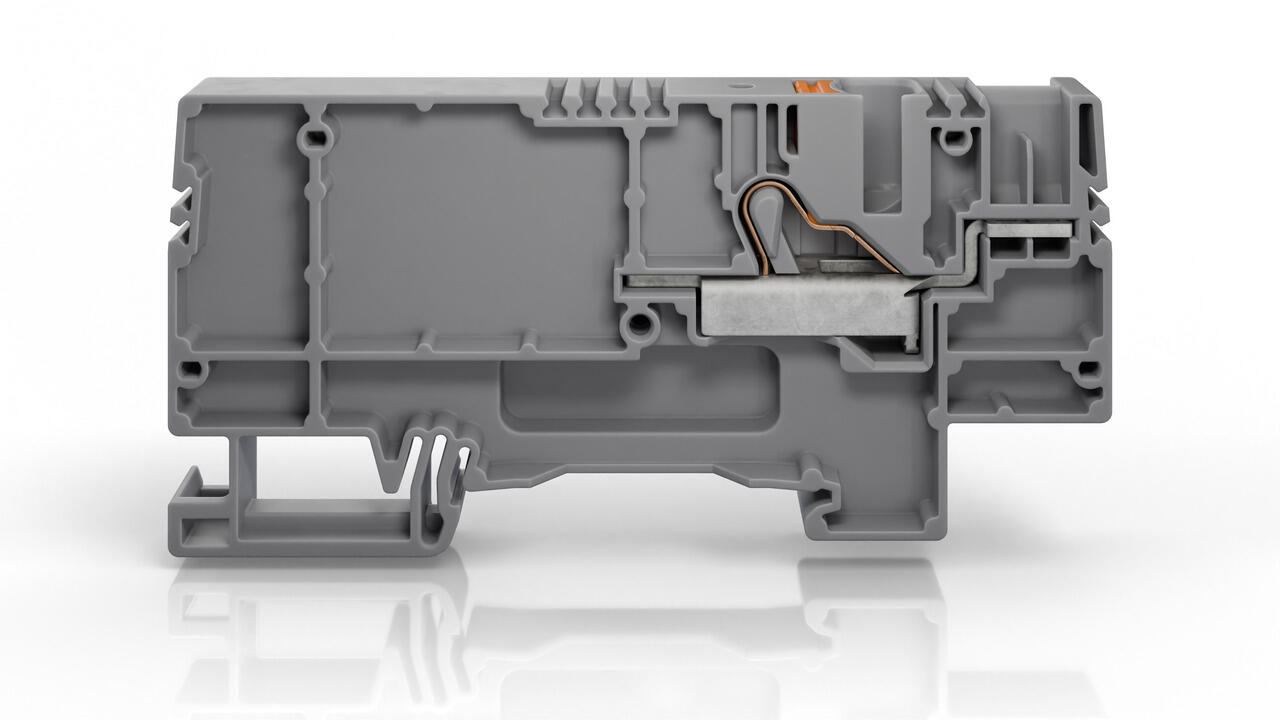

PPVKE 6/1A/OG Feed Term Orange Push
Art:
27056.6 Copied
Grey
1
0.5
10
0.5
6
0.5
6
6
1
20
41
20
8
12
8.1
PPVKE 6/1A/RD Feed Term Red Push
Art:
27057.6 Copied
Grey
1
0.5
10
0.5
6
0.5
6
6
1
50
41
20
8
812
8.1
PPVKE 6/1A/BU Feed Term Blue Push
Art:
27058.6 Copied
Grey
6
0.5
10
0.5
6
0.5
6
6
1
20
A5
41
20
8
12
8.1

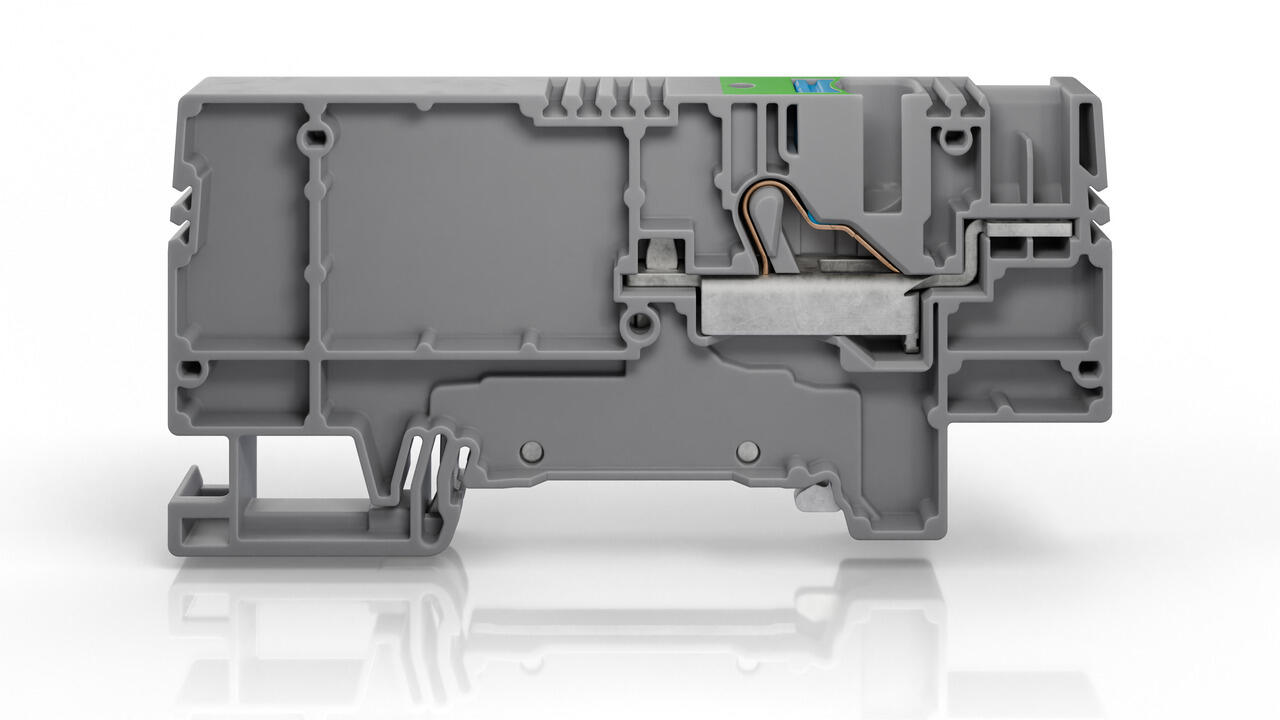

PPVKE PE 6/1A/BU Feed PE Term Blue Push
Art:
27059.6 Copied
Grey
1
0.5
10
0.5
6
0.5
6
6
1
20
A5
41
20
8
12
8.1
PPVK1.5/6A/WH Dist Term White Push
Art:
27067.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVKE 6/1A/WH Dist Term White Push
Art:
27068.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

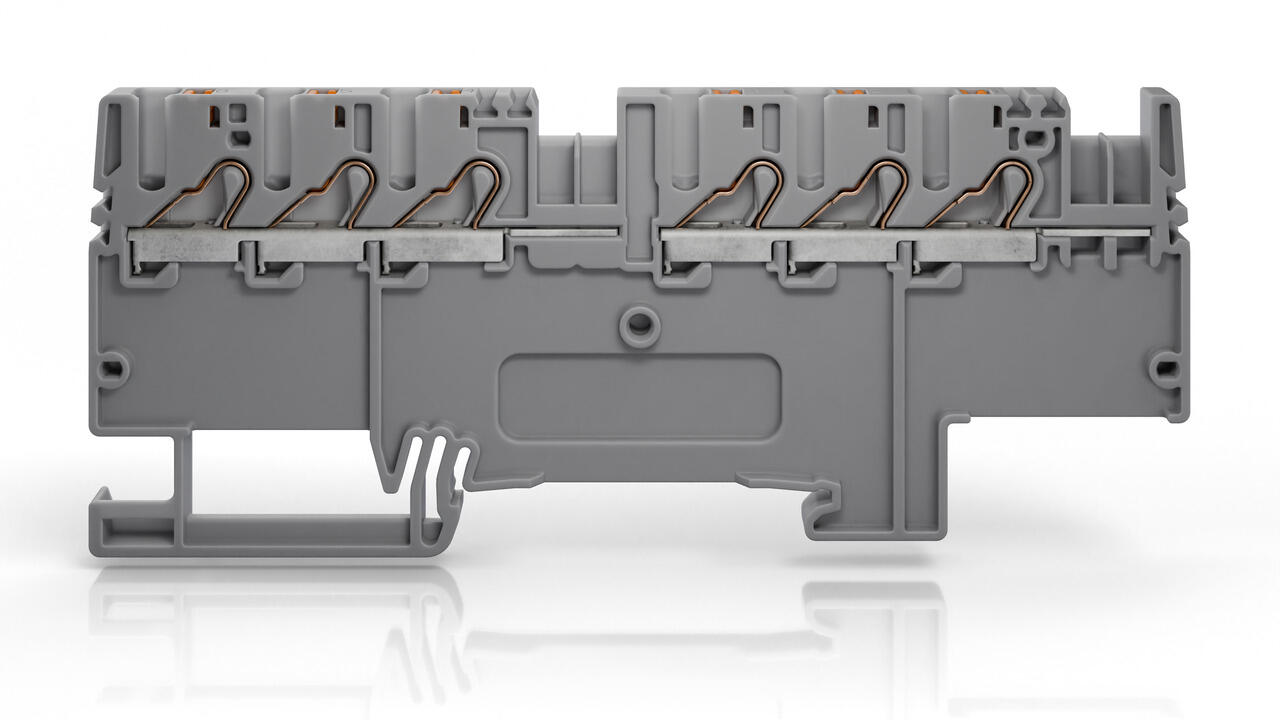

PPVK1.5/2X3A/OG/OG GR
Art:
27095.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVK1.5/2X3A/BU/RD GR
Art:
27096.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
PPVKE6/2X1A/OG/OG Feed Term Org Push
Art:
27097.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

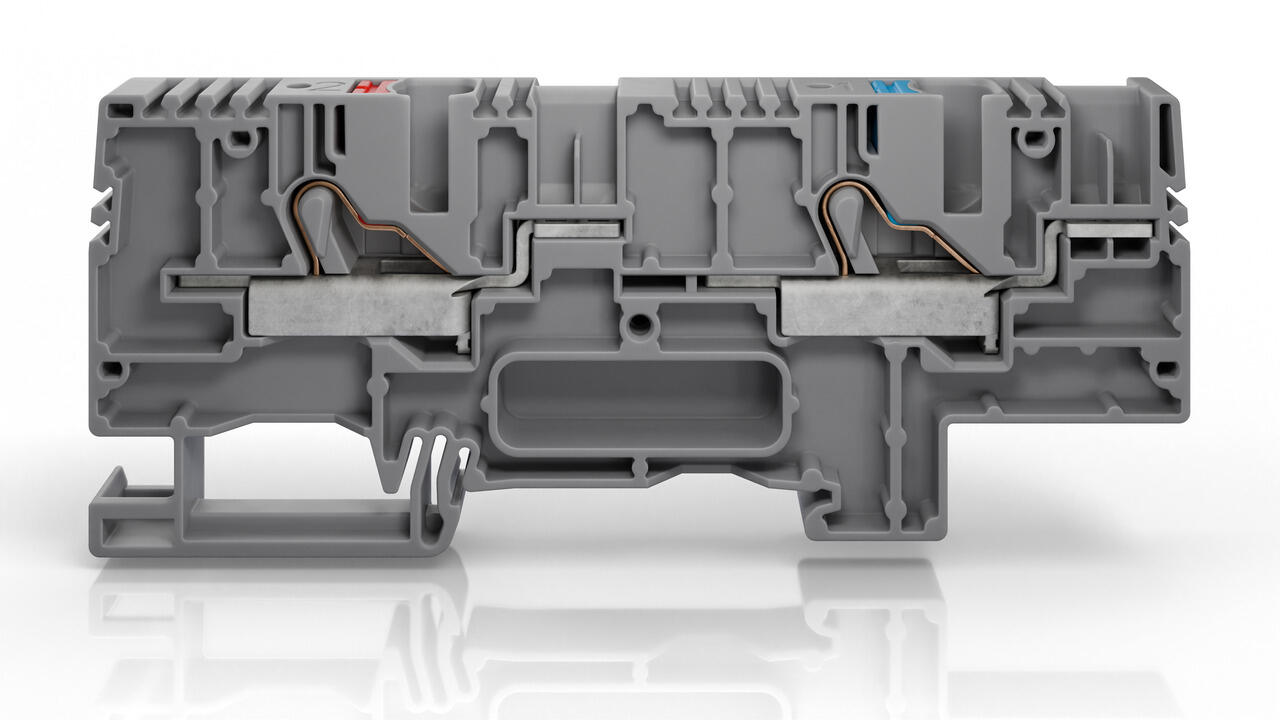

PPVKE6/2X1A/BU/RD Feed Term Bu/Rd Push
Art:
27098.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5

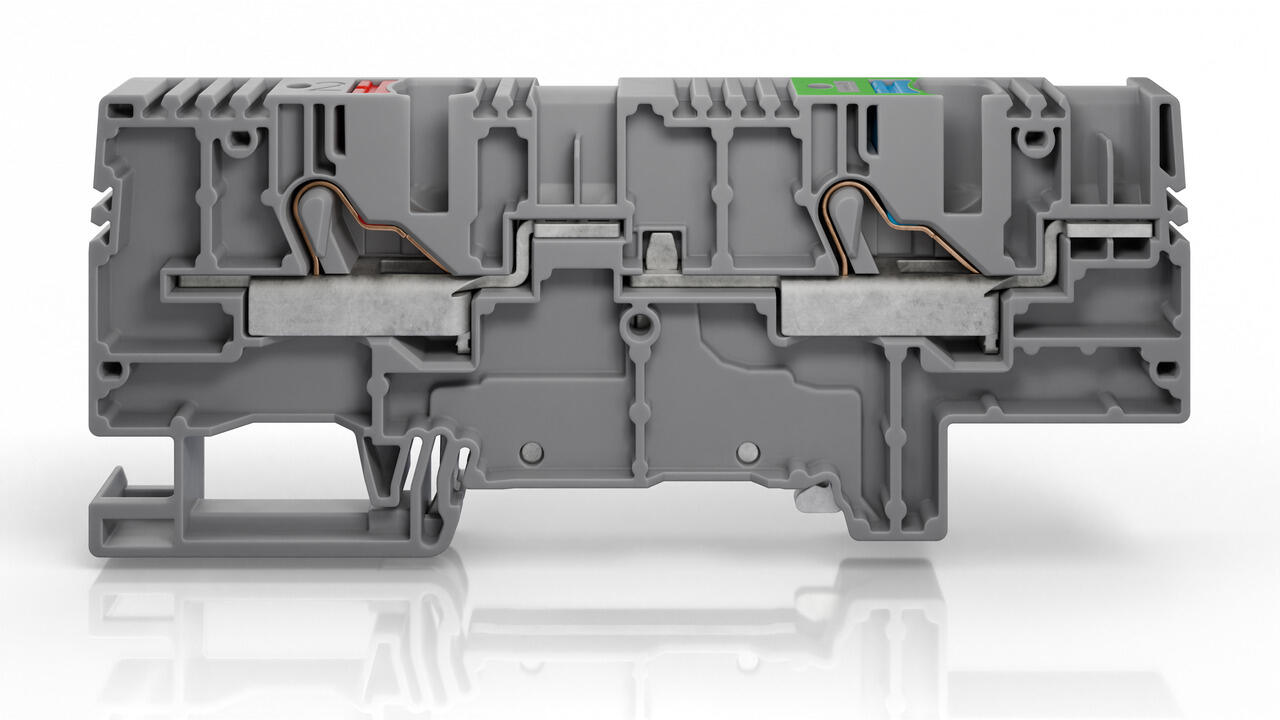

PPVKEPE 6/2X1A/BU/RD Feed PE Bu/Rd Push
Art:
27099.6 Copied
Grey
6
0.25
1.5
0.2
1.5
0.25
1
1.5
6
50
16
26
14
8
3.5
