CONTA-CLIP

Feed through terminals - PRK 1.5-10mm

PRK

The New PRK range of Push-in terminal blocks from CONTA-CLIP enables solid wires as well as stranded wires with wire-end ferrules to be safely terminated using less insertion force.
  • Tool free connections
  • 2 to 4 connections
  • 2 way cross connect channel
  • Push button cable release
  • Test pickoff point

Selected variant

Avaible in several variants

Save as pdf

Technical data / Documents

Product description

Accessories & Related products

Selected variant

Specifications

Color Brown
Connections 2
Contamination degree 3
Country of origin CZ
Cross connect channels 2
Cross section single wire from 0.14
Cross section single wire to 4
Cross section stranded wire from 0.14
Cross section stranded wire to 2.5
Cross section stranded with ferrule from 0.14
Cross section stranded with ferrule to 2.5
Cross-Section 2.5
Flamklass UL94-VO
Height 35.2
Height TS 35/7.5 36.7
Length 48.5
Number of levels 1
Number of terminals per level 2
Operating temperature from -40
Operating temperature to 120
Overvoltage category III
Pack Size 50
Plug gauge acc. EN 60 947-1 A3
Rated Current IEC 24
Rated impulse voltage 6
Rated wire cross section from 26
Rated wire cross section to 12
Rated Voltage IEC 800
Stripping Length 10
Tariff code 85369010
Weight 5.98
Width 5.1

Downloads

Product description

Opening the clamp to release the wire is done using the integrated insulated plunger that insures that actuating the clamping spring is completely safe. This gives you a noticeable time advantage during the wiring process. The extremely compact terminals ensure a high current carrying capacity, a secure fit and the highest level of stability on the rail. The new feed-through and protective earth terminals will be available in six cross-section ranges from 1.5 mm² to 16 mm² in 2, 3 and 4-wire connection variants for wire cross-sections of 0.34 mm² to 25 mm². The addition of double and triple deck terminals is also available in this growing range.

Accessories

Related products

tekox
Blog

Tekox Terminal Strips Safety Blocks and Porcelain Blocks

Great electrical installations don't fail because of the major components. They fail because of the small ones that didn't get enough attention.
It's easy to focus on the big-ticket items during specification — and let the terminal blocks become an afterthought. But inferior connection components have a habit of making themselves known over time. Loose connections, degraded insulation, premature failure. The kind of faults that are frustrating to trace and expensive to fix.
Tekox engineer their terminal strips, safety blocks, insulated strips, and porcelain blocks to the standards your installations deserve. Available now from Demesne Electrical — get in touch and we'll show you the range.

PPVK Series
Blog

Conta-Clip Push-in PPVK Distribution Terminals

Conta-Clip PPVK push-in potential distribution terminals simplify control cabinet wiring with tool-free connections, compact DIN rail mounting, and reliable current distribution up to 41A.

Energy Storage Systems (ESS):
Blog

Electrical Protection in Energy Storage Systems (ESS): Keys to a Safe Installation

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

wayne moody
Company News

Wayne Moody Joins OEM | Demesne Electrical

We’re excited to share some great news at Demesne Electrical. Wayne Moody has joined our team, bringing with him years of experience and a clear vision for the future. His focus will be on building on our strong reputation here in Ireland and driving our growth across Europe.

DF electrci 485121
Blog

PMX Fuse Holder Range – Compact, Reliable, Built for Demanding Panels

The PMX fuse holder range is compact, halogen-free, and manufactured in Europe for fast availability. Available in 10×38, 14×51, and 22×58 sizes with IEC, UL, and CSA approvals, they feature silver-plated contacts, IP20 touch-safe design, and optional blown fuse indicators — giving panel builders reliable, safe, and flexible protection.

stego loop
Blog

Stego Enclosure Heaters with Loop

STEGO’s new loop enclosure heaters are a smart fix for condensation in control cabinets. They heat evenly, install fast with no tools, and come in a range of sizes from 10 to 150 W. They're tough, touch-safe, and even have a built-in thermostat option—everything you need to protect your gear and keep things running smoothly.

My favourites Articles Color Connections Country of origin Cross section single wire from Cross section single wire to Cross section stranded wire from Cross section stranded wire to Cross section stranded with ferrule from Cross section stranded with ferrule to Cross-Section Flamklass Height Height TS 35/7.5 Length Number of terminals per level Plug gauge acc. EN 60 947-1 Rated Current IEC Rated impulse voltage Rated wire cross section from Rated wire cross section to Rated Voltage IEC Stripping Length Weight Width Price
PRK_4-2A.tif
PRK 2.5/2A BROWN PS TERM 2.5mm
Art:
27006.0 Copied
Brown
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1
PRK 2.5/2A GREEN PS TERM 2.5mm
Art:
27006.1 Copied
Green
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1
PRK 2.5/2A BLACK PS TERM 2.5mm
Art:
27006.4 Copied
Black
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1

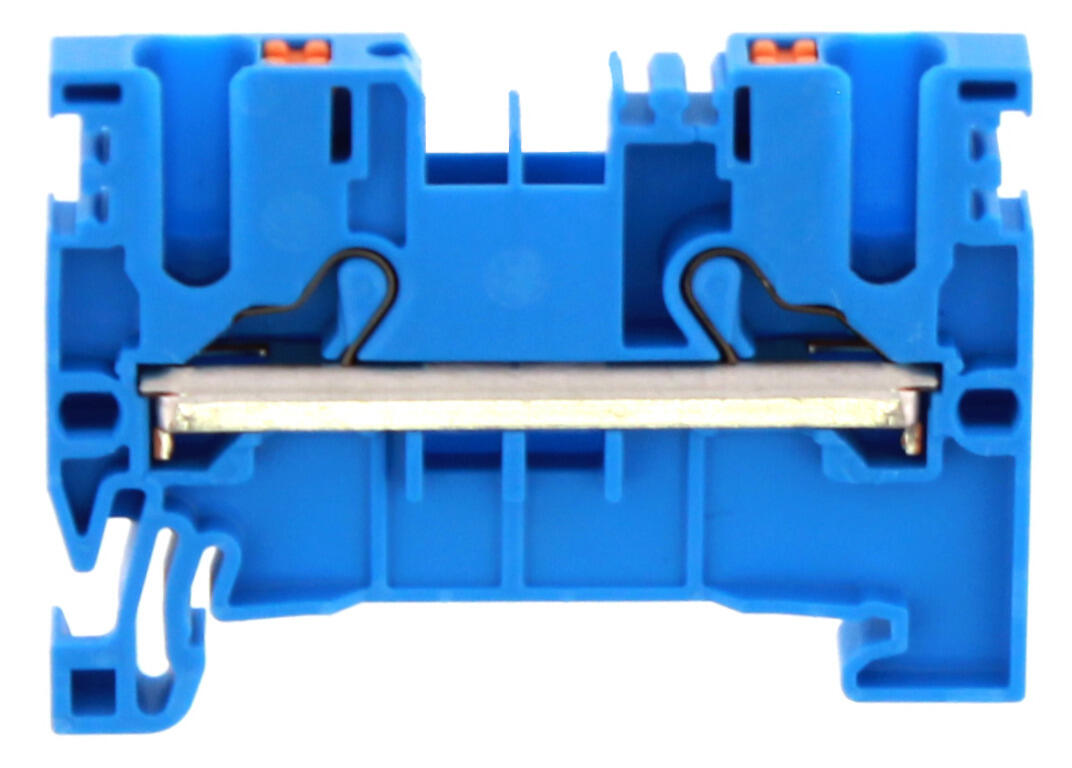

Terminal Block PRK2.5/2A 2.5sq, Blue, Push In
Art:
27006.5 Copied
Blue
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-V0
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1

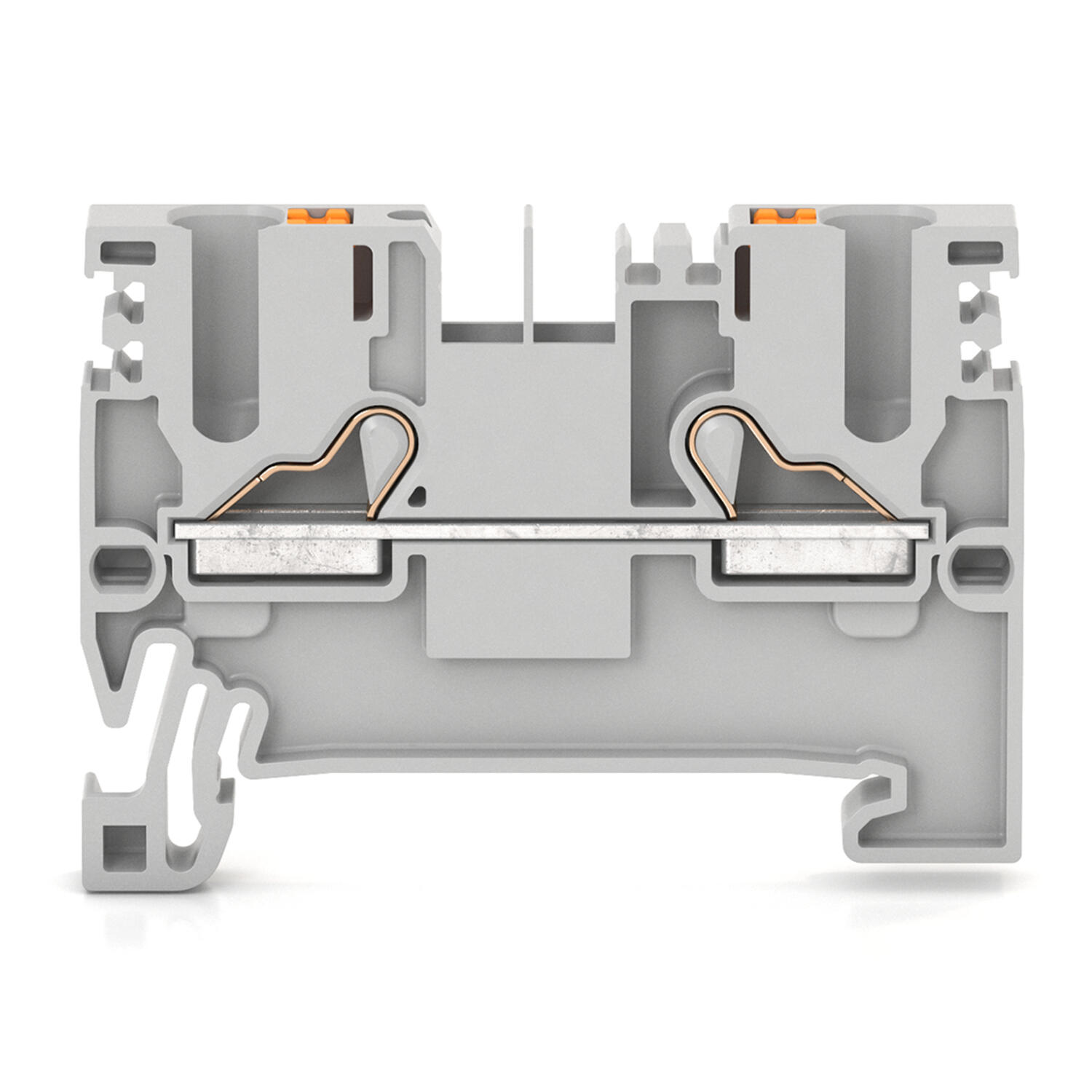

PRK_2.5-2A.tif
Terminal Block PRK2.5/2A 2.5sq, Grey, Push In
Art:
27006.6 Copied
Grey
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-V0
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1
PRK_4-2A.tif
PRK 2.5/2A BLUE PS TERM 2.5mm
Art:
27006.7 Copied
White
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1
PRK 2.5/2A BLACK PS TERM 2.5mm
Art:
27006.9 Copied
Red
2
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
48.5
2
A3
24
6
26
12
800
10
5.98
5.1
PRK 2.5/3A BLACK PS TERM 2.5mm
Art:
27008.4 Copied
Black
3
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
60.35
3
A3
24
6
26
12
800
10
7.34
5.1

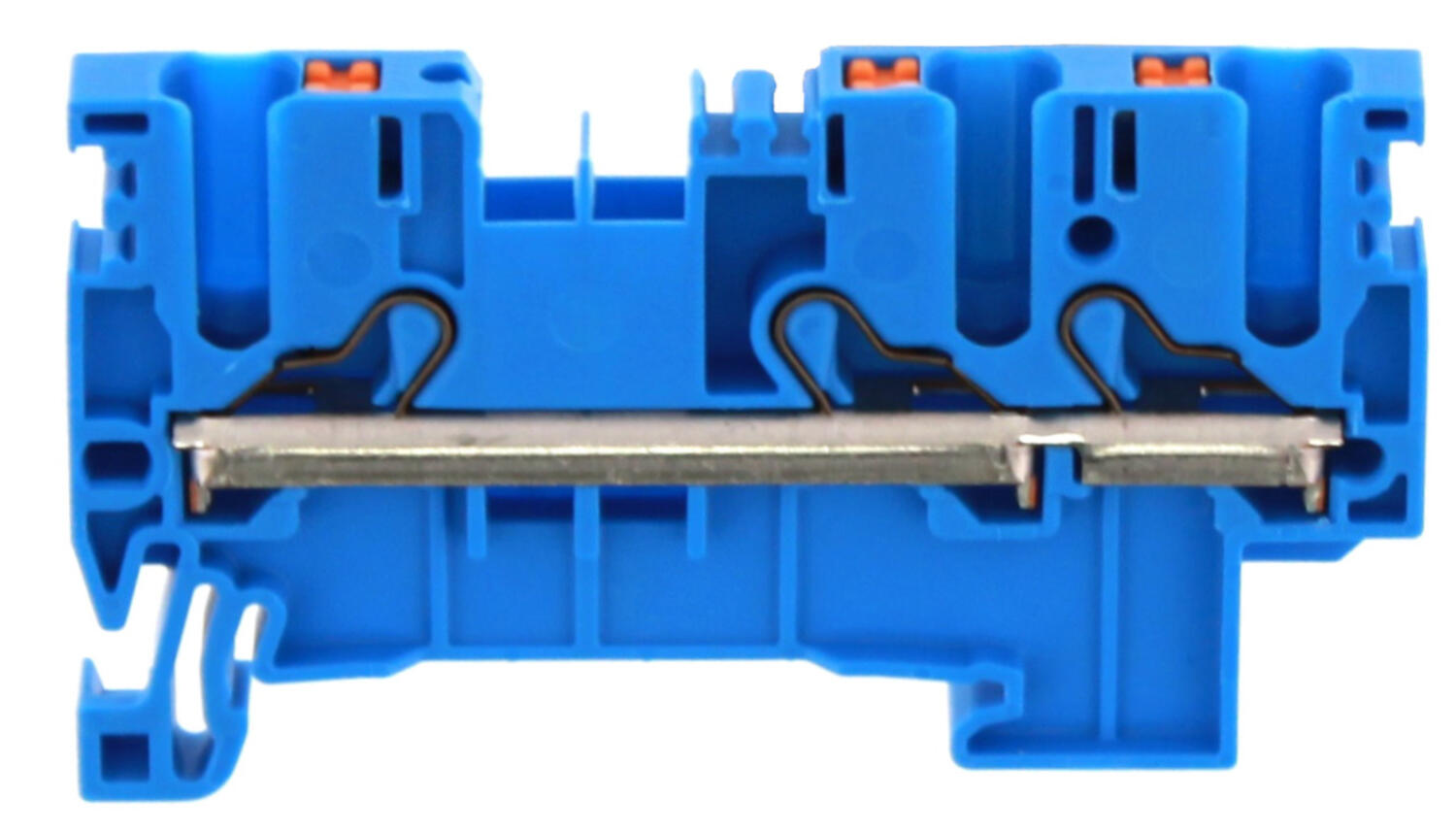

Terminal Block PRK2.5/3A 2.5sq, Blue, Push In - 3 connections
Art:
27008.5 Copied
Blue
3
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-V0
35.2
36.7
60.35
3
A3
24
6
26
12
800
10
7.34
5.1

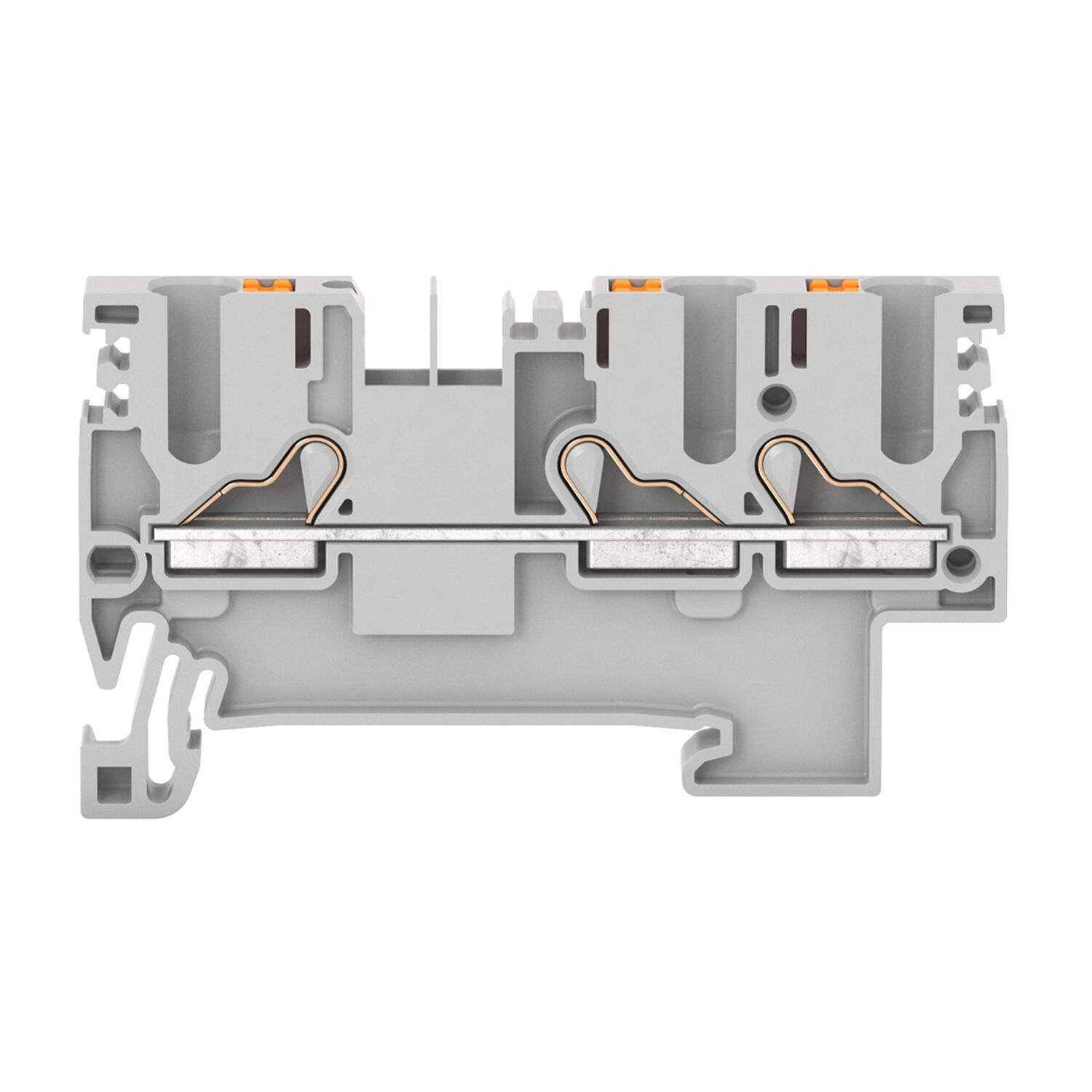

PRK_2.5-3A.tif
Terminal Block PRK2.5/3A 2.5sq, Grey, Push In - 3 connections
Art:
27008.6 Copied
Grey
3
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-V0
35.2
36.7
60.35
3
A3
24
6
26
12
800
10
7.34
5.1
PRK 2.5/3A WHITE PS TERM 2.5mm
Art:
27008.7 Copied
White
3
CZ
0.14
4
0.14
2.5
0.14
2.5
2.5
UL94-VO
35.2
36.7
60.35
3
A3
24
6
26
12
800
10
7.34
5.1

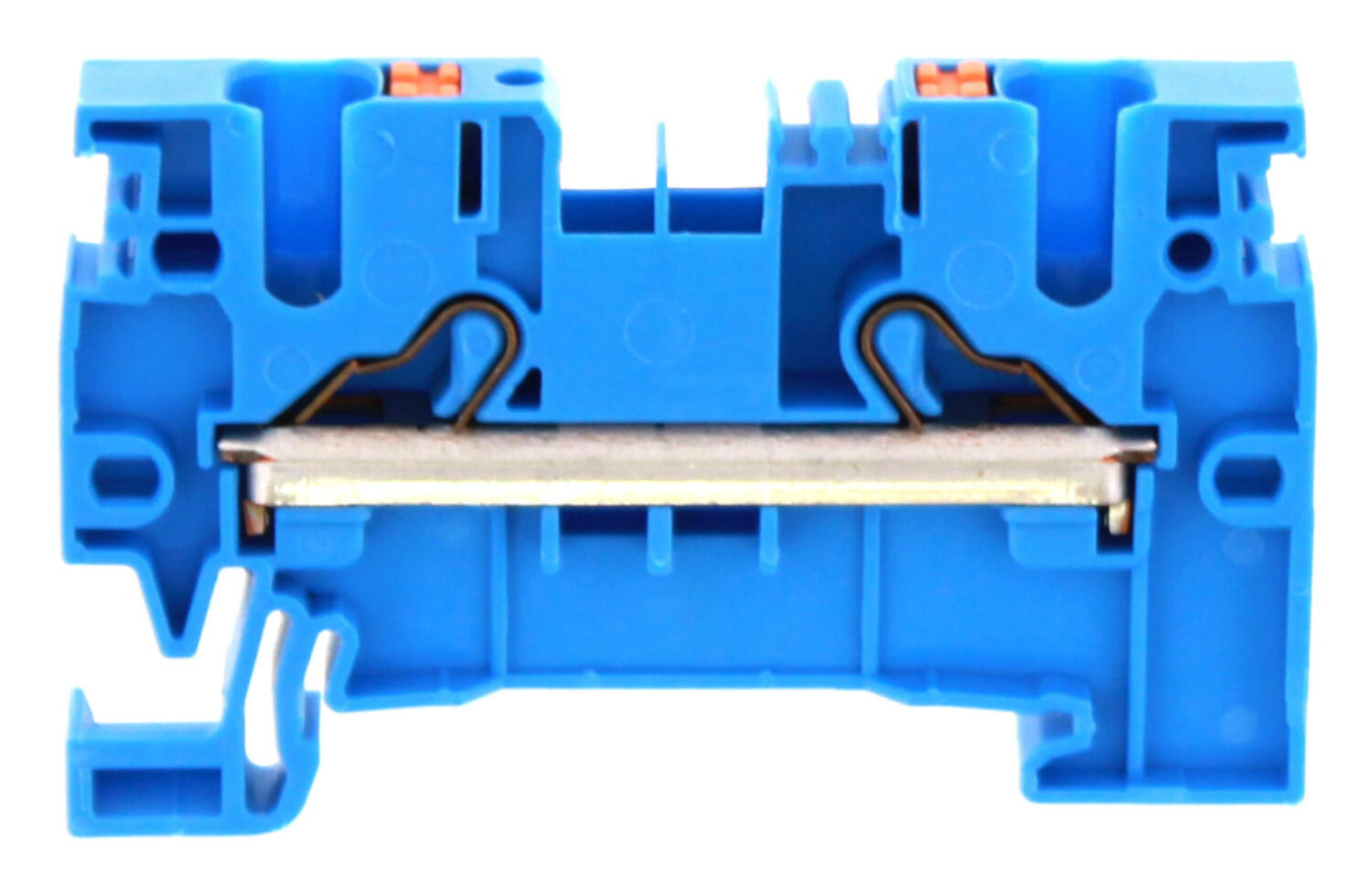

Terminal Block PRK4/2A 4sq, Blue, Push In
Art:
27012.5 Copied
Blue
2
CZ
0.2
6
0.2
4
0.25
4
4
UL94-V0
35.2
36.7
56
2
A4
32
8
24
10
800
12
8.3
6.1
PRK_4-2A.tif
Terminal Block PRK4/2A 4sq, Grey, Push In
Art:
27012.6 Copied
Grey
2
CZ
0.2
6
0.2
4
0.25
4
4
UL94-V0
35.2
36.7
56
2
A4
32
8
24
10
800
12
8.3
6.1

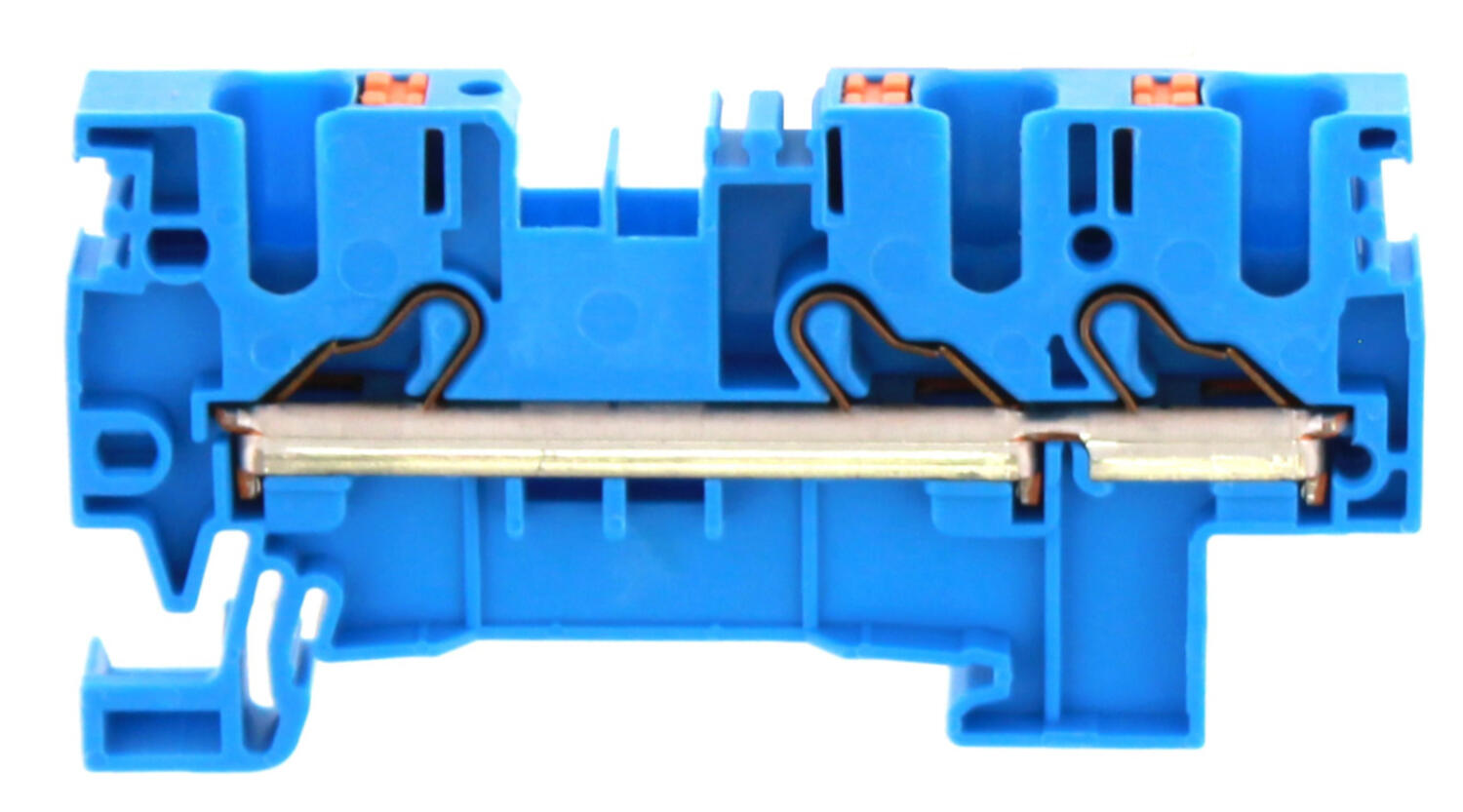

Terminal Block PRK4/3A 4sq, Blue, Push In - 3 connections
Art:
27014.5 Copied
Blue
3
CZ
0.2
6
0.2
4
0.25
4
4
UL94-V0
35.2
36.7
66.5
3
A4
32
8
24
10
800
12
9.8
6.1

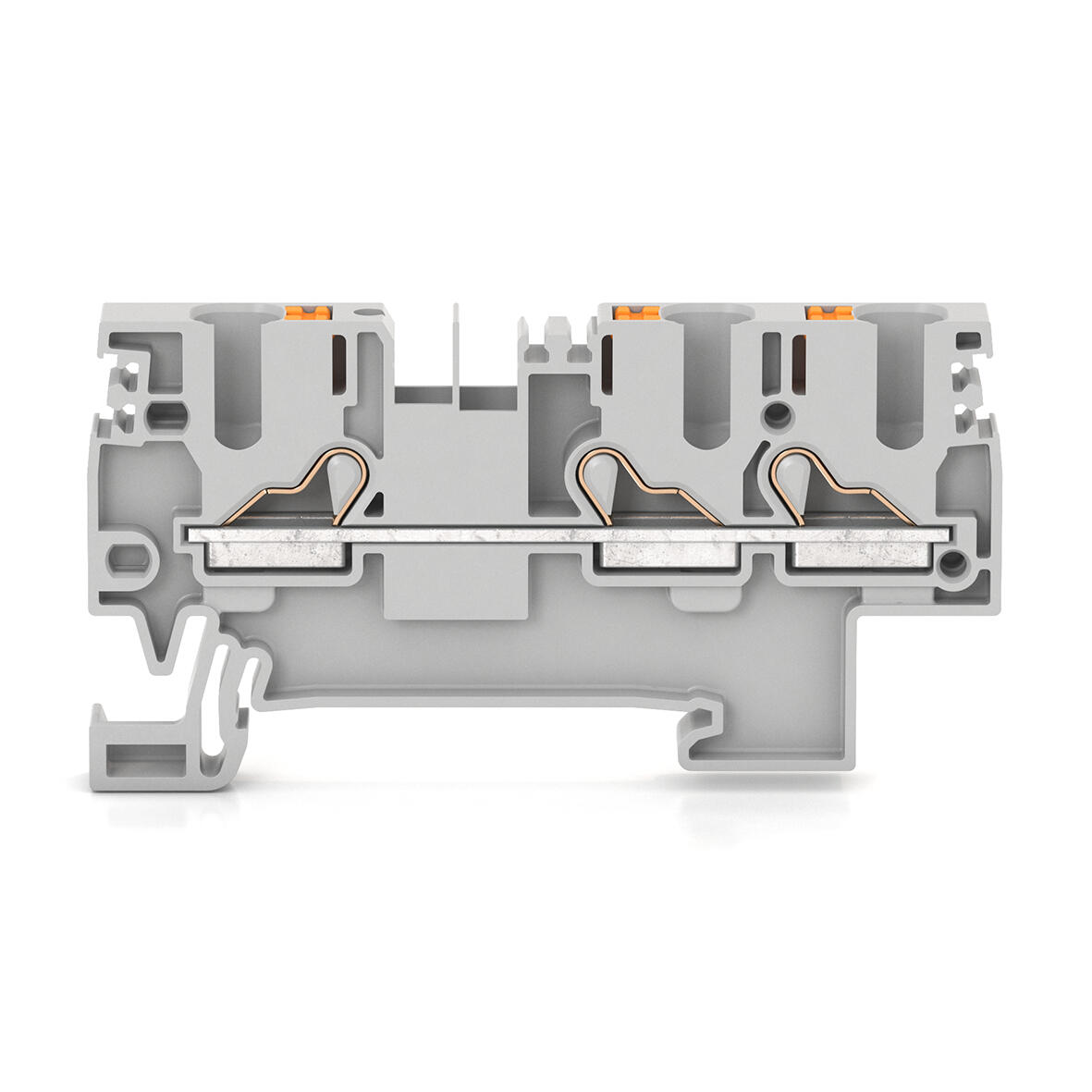

PRK_4-3A.tif
Terminal Block PRK4/3A 4sq, Grey, Push In - 3 connections
Art:
27014.6 Copied
Grey
3
CZ
0.2
6
0.2
4
0.25
4
4
UL94-V0
35.2
36.7
66.5
3
A4
32
8
24
10
800
12
9.8
6.1
PRK 4/4A BLACK PS TERM 4mm
Art:
27016.4 Copied
Black
4
CZ
0.2
6
0.2
4
0.25
4
4
UL94-VO
35.2
36.7
77
4
A4
32
8
24
10
800
12
11.85
6.1
PRK 4/4A WHITE PS TERM 4mm
Art:
27016.7 Copied
White
4
CZ
0.2
6
0.2
4
0.25
4
4
UL94-VO
35.2
36.7
77
4
A4
32
8
24
10
800
12
11.85
6.1
PRK 4/4A RED PS TERM 4mm
Art:
27016.9 Copied
Red
4
CZ
0.2
6
0.2
4
0.25
4
4
UL94-VO
35.2
36.7
77
4
A4
32
8
24
10
800
12
11.85
6.1

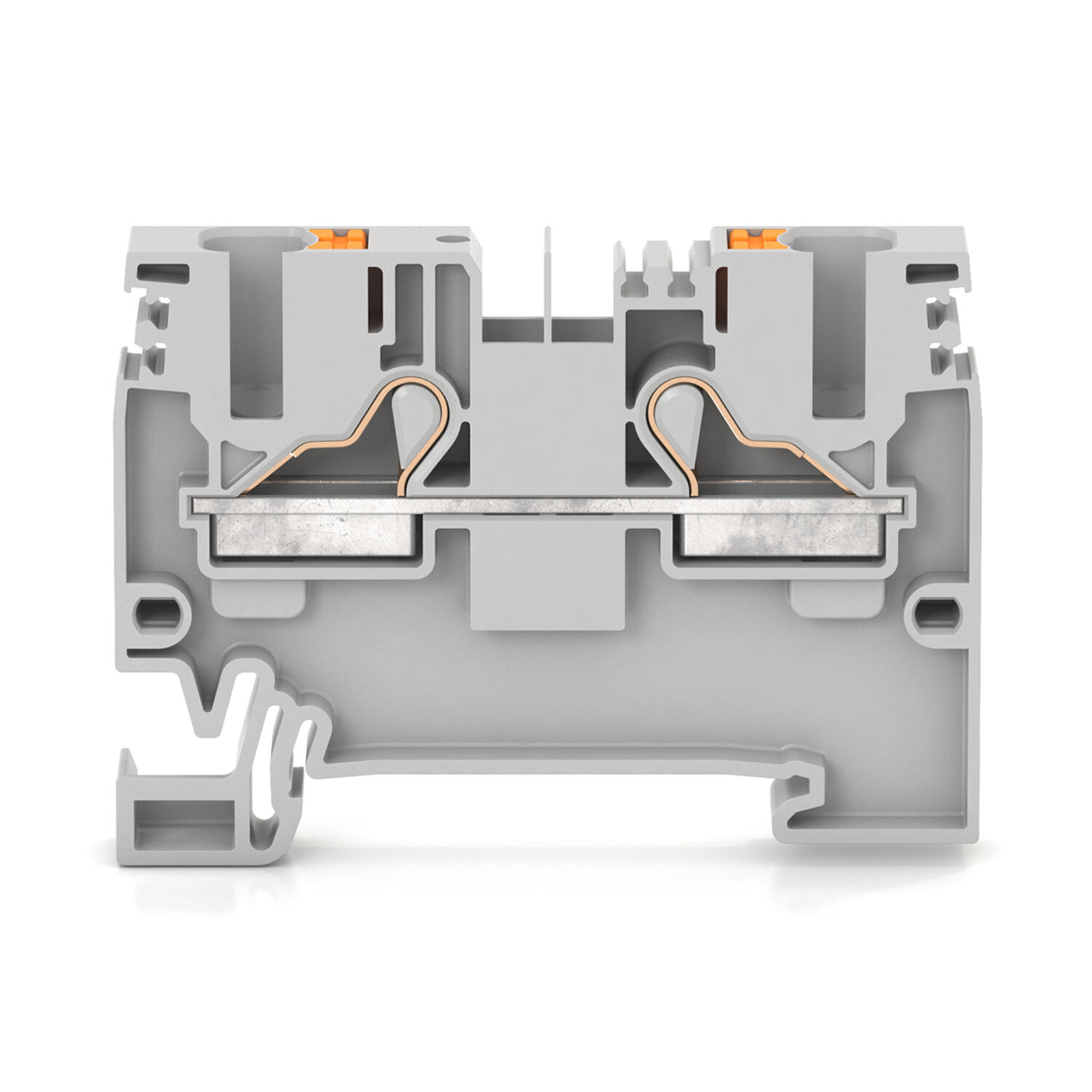

PRK_6-2A.tif
Terminal Block PRK6/2A 6sq, Grey, Push In
Art:
27018.6 Copied
Grey
2
CZ
0.5
10
0.5
6
0.5
10
6
UL94-V0
42
44
57.7
2
A5
52
8
20
8
1000
12
13.56
8.1
PRK_6-3A.tif
Terminal Block PRK6/3A 4sq, Grey, Push In - 3 connections
Art:
27020.6 Copied
Grey
3
CZ
0.5
10
0.5
6
0.5
10
6
UL94-V0
42
44
74.1
3
A5
52
8
20
8
1000
12
17.64
8.1

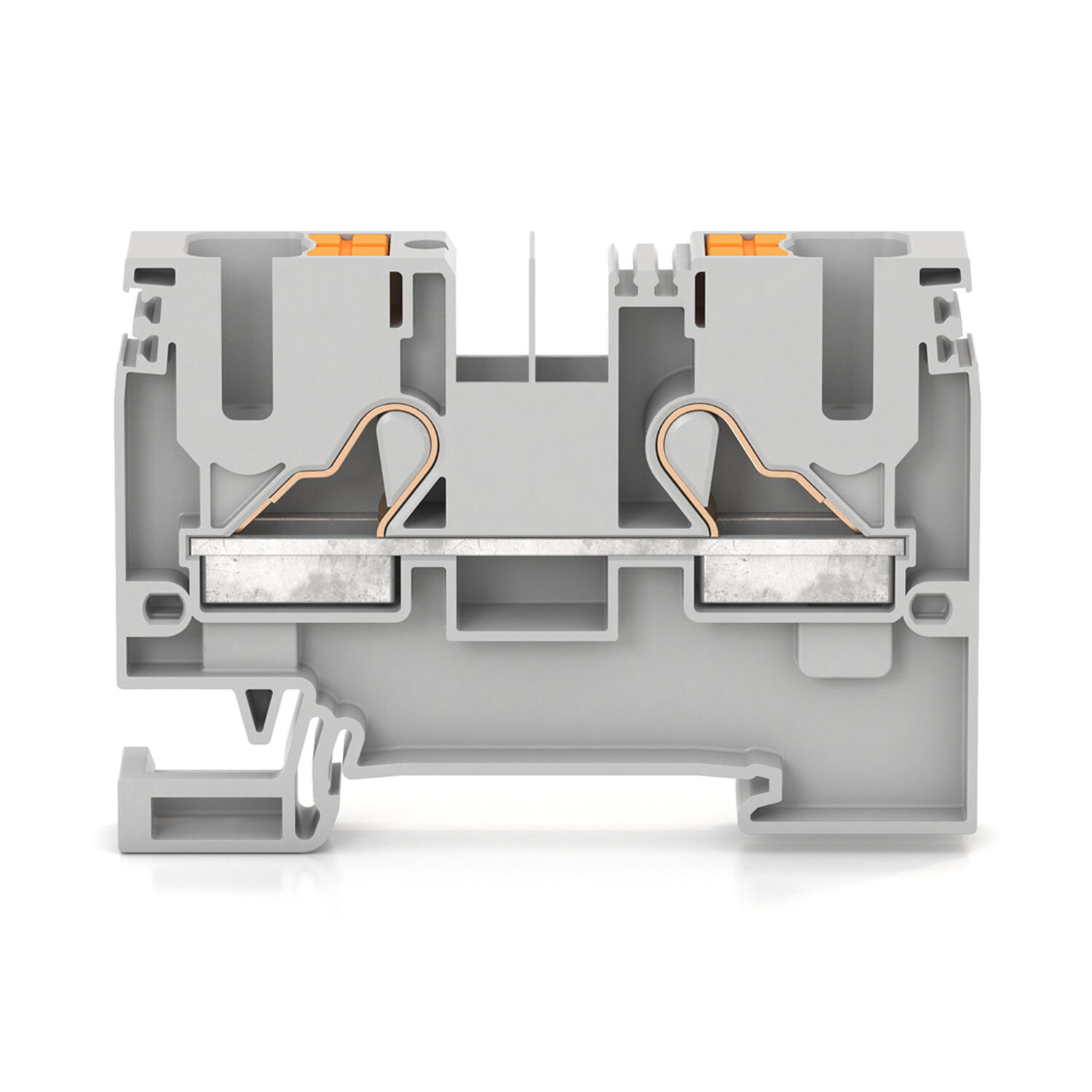

PRK_10-2A.tif
Terminal Block PRK10/2A 10sq, Grey, Push In
Art:
27024.6 Copied
Grey
2
CZ
0.5
16
0.5
10
0.5
10
10
UL94-V0
48
49.5
67.8
2
A6
70
8
20
6
1000
18
24.9
10.1
PRK 16/2A ORANGE PS TERM 16MM
Art:
27030.3 Copied
Orange
2
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
75
2
A7
85
8
20
4
1000
18
33.76
12.1
PRK 16/3A ORANGE PS TERM 16mm
Art:
27032.3 Copied
Orange
3
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
100
3
A7
85
8
20
4
1000
18
42.35
12.1

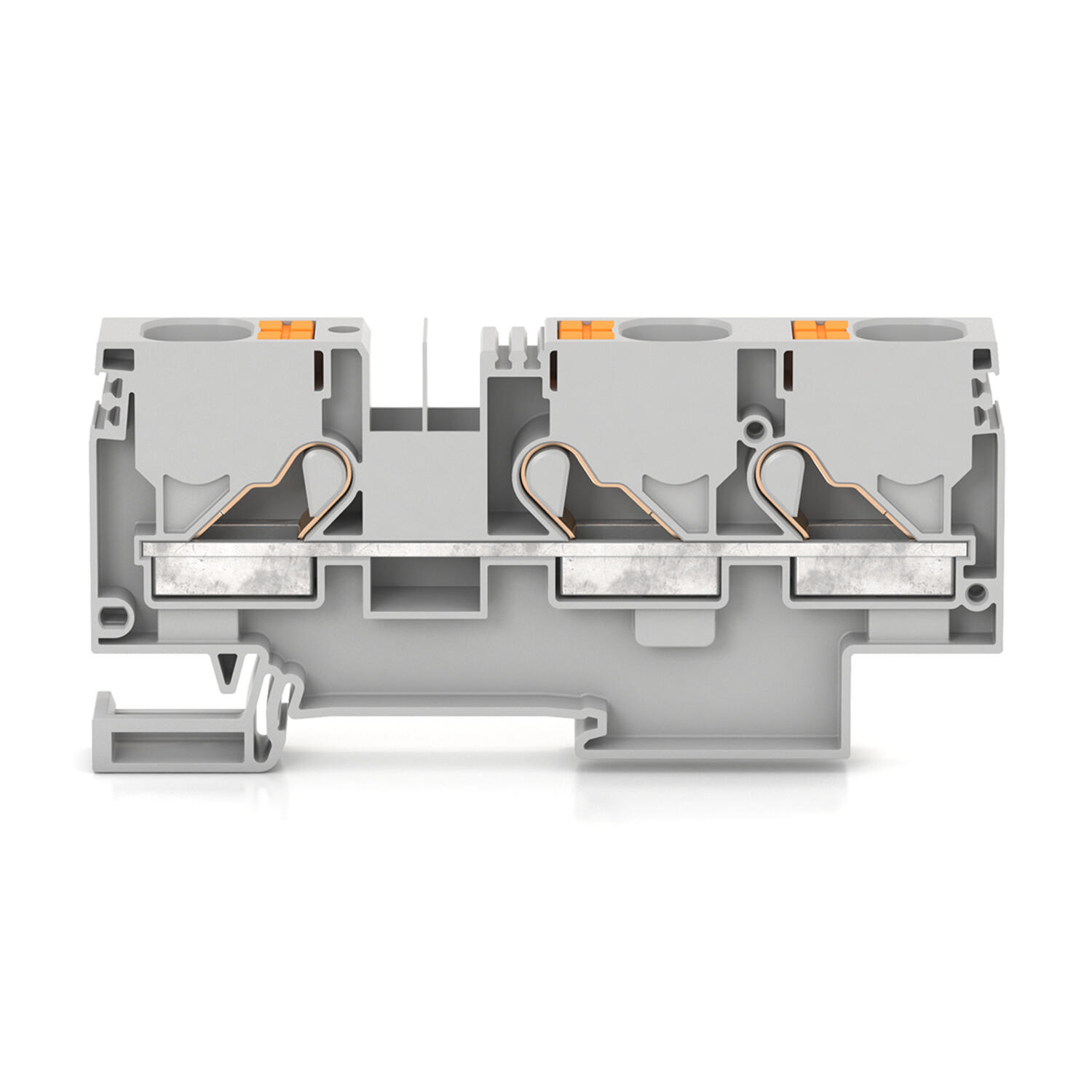

PRK_16-3A.tif

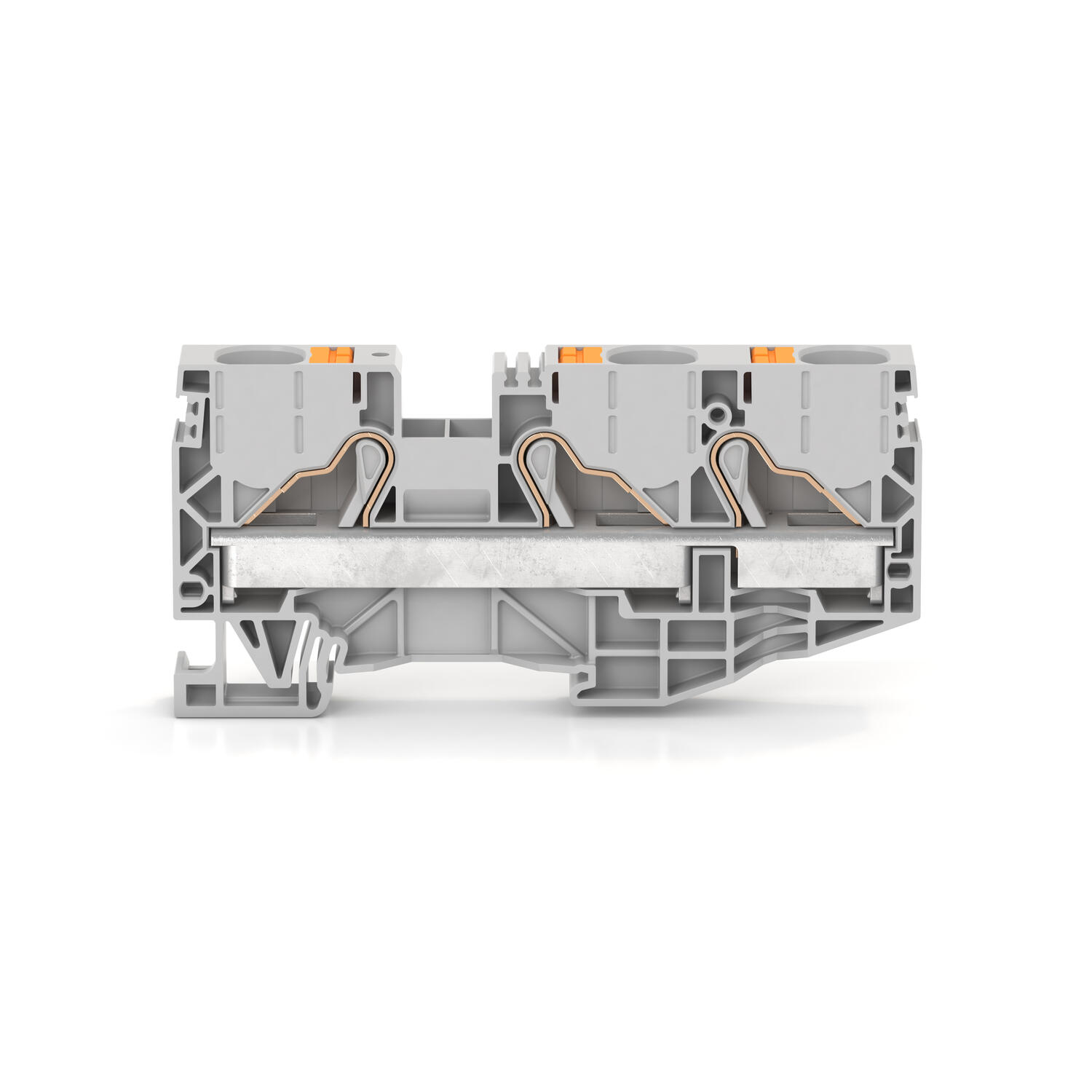

PRK 16/3A Grey, 16mm² Push-in feed through, 1 in, 2 out
Art:
27032.6 Copied
Grey
3
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
100
3
A7
85
8
20
4
1000
18
45.35
12.1
PRK 16/4A GREEN PS TERM 16mm
Art:
27034.1 Copied
Green
4
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
123
4
A7
85
8
20
4
1000
18
56.25
12.1
PRK 16/4A ORANGE PS TERM 16mm
Art:
27034.3 Copied
Orange
4
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
123
4
A7
85
8
20
4
1000
18
56.25
12.1

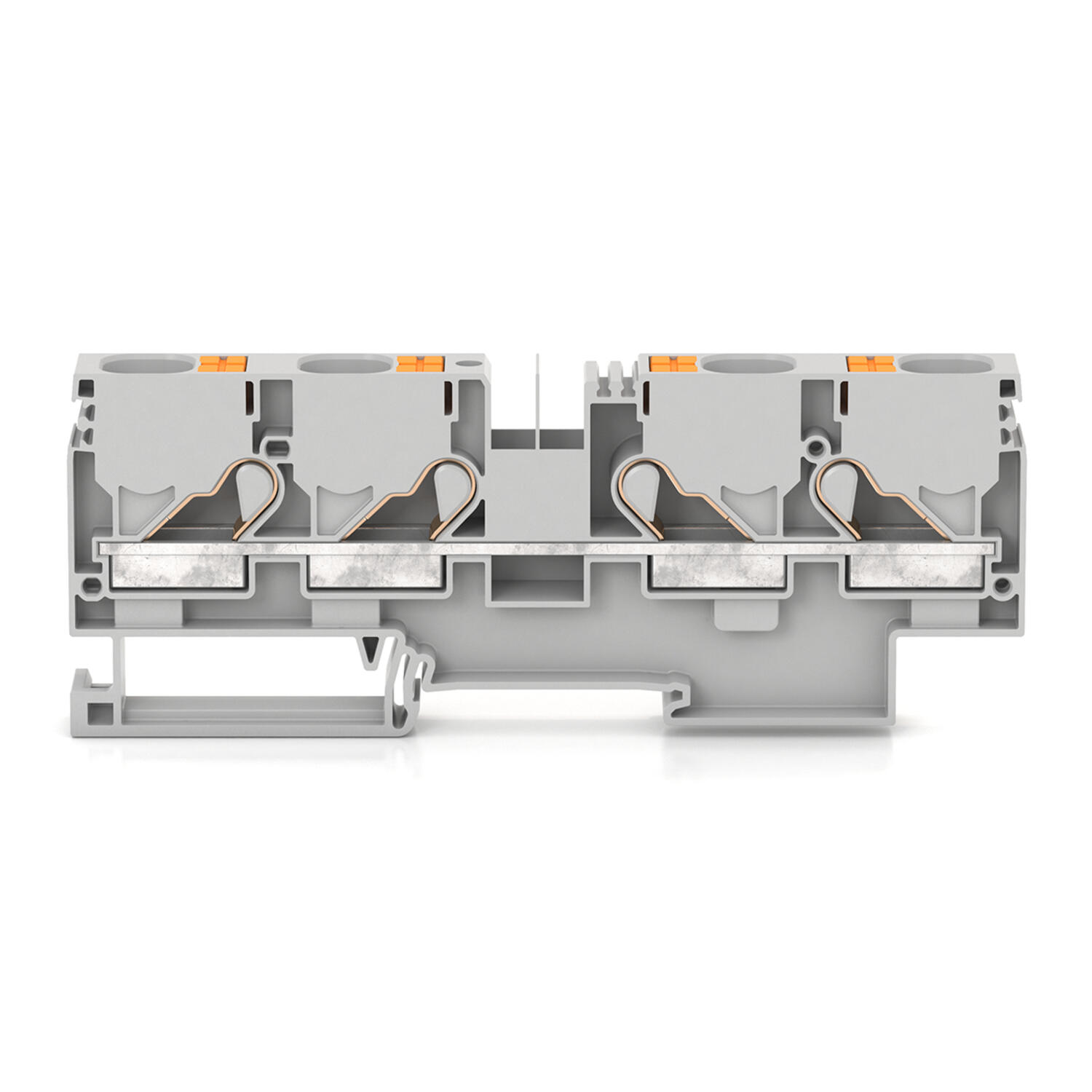

PRK_16-4A.tif

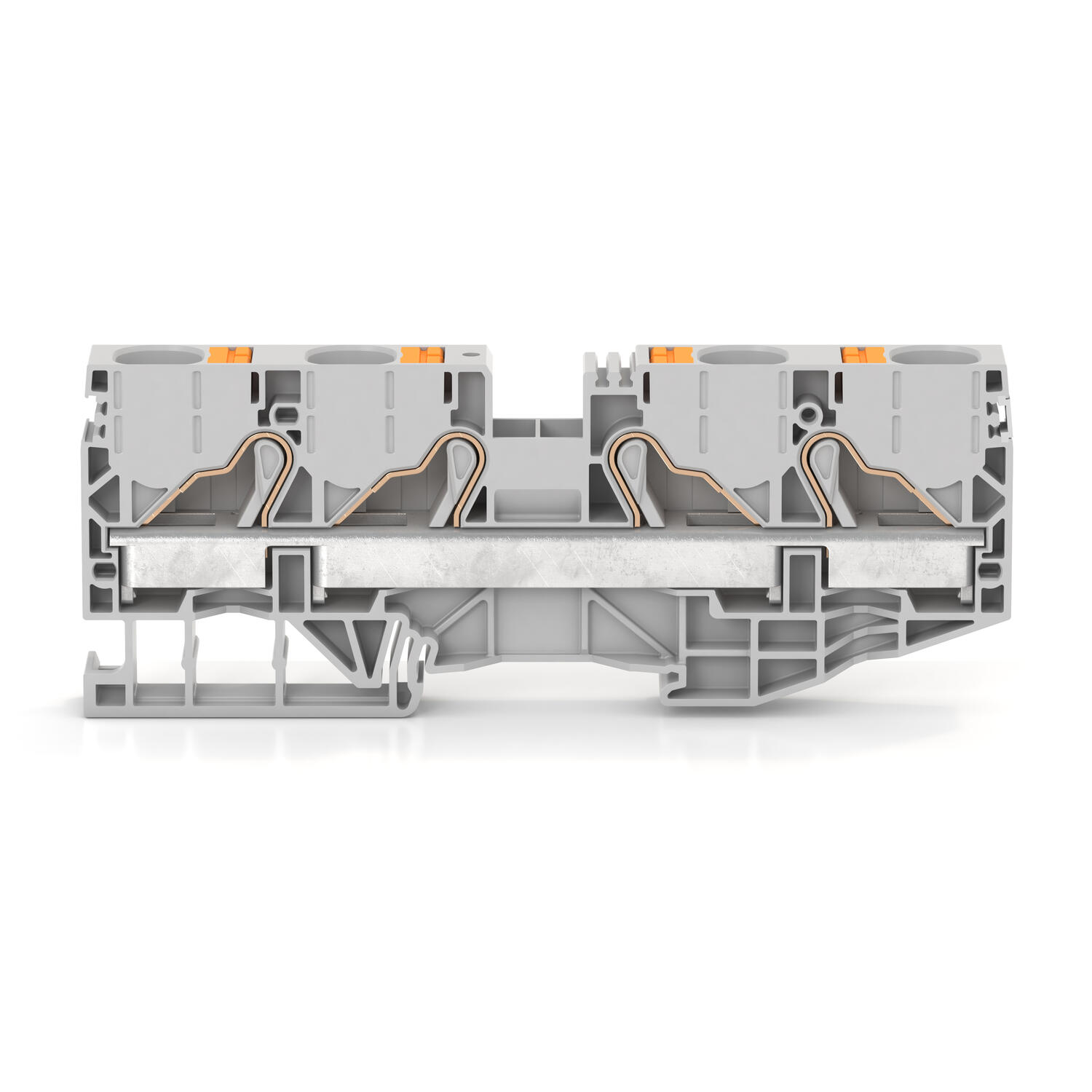

PRK 16/4A Grey, 16mm² Push-in feed through, 2 in, 2 out
Art:
27034.6 Copied
Grey
4
DE
0.5
25
0.5
16
0.5
16
16
UL94-V0
48
49.5
123
4
A7
85
8
20
4
1000
18
56.25
12.1
