CONTA-CLIP
3-wire installation terminals - FDLI
FDLI

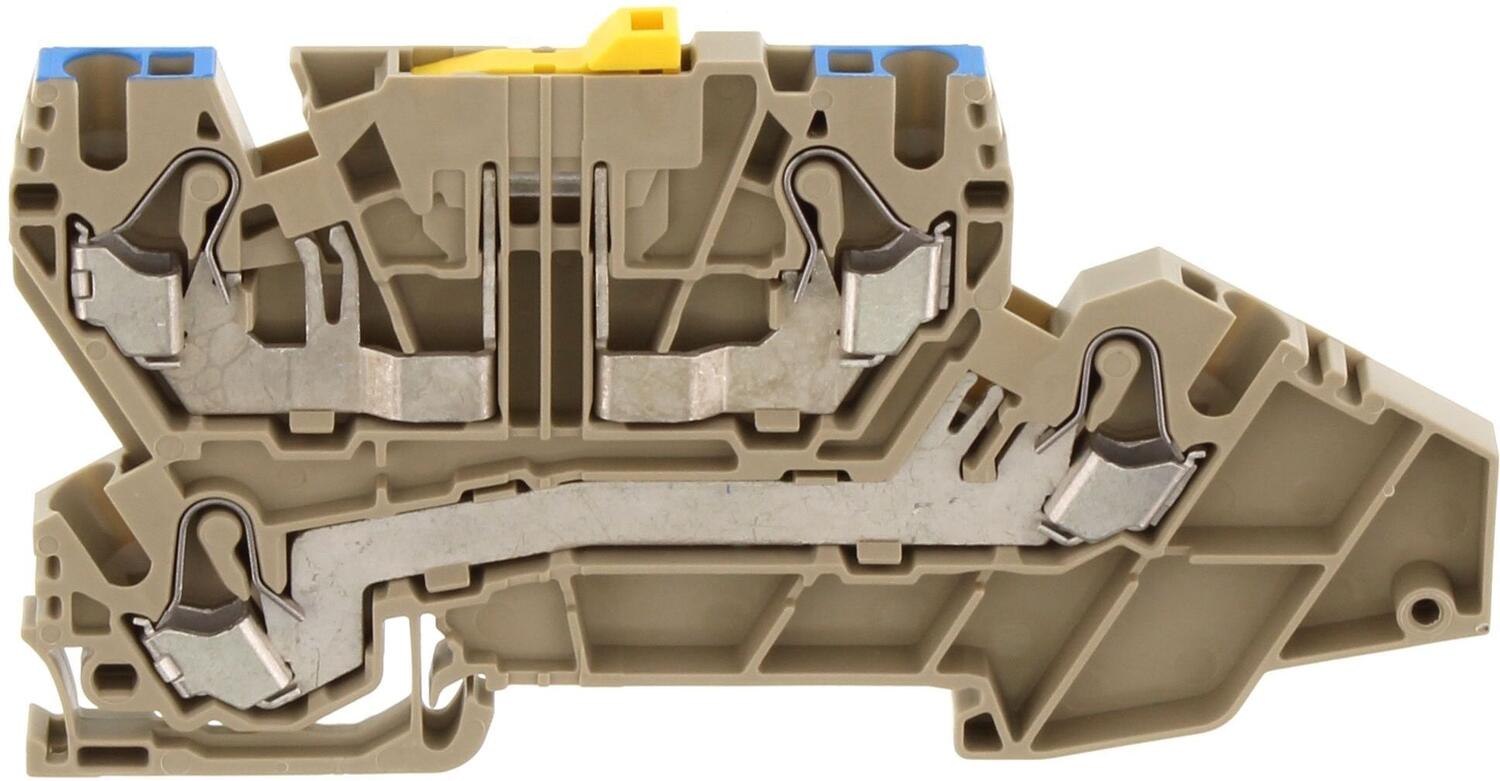

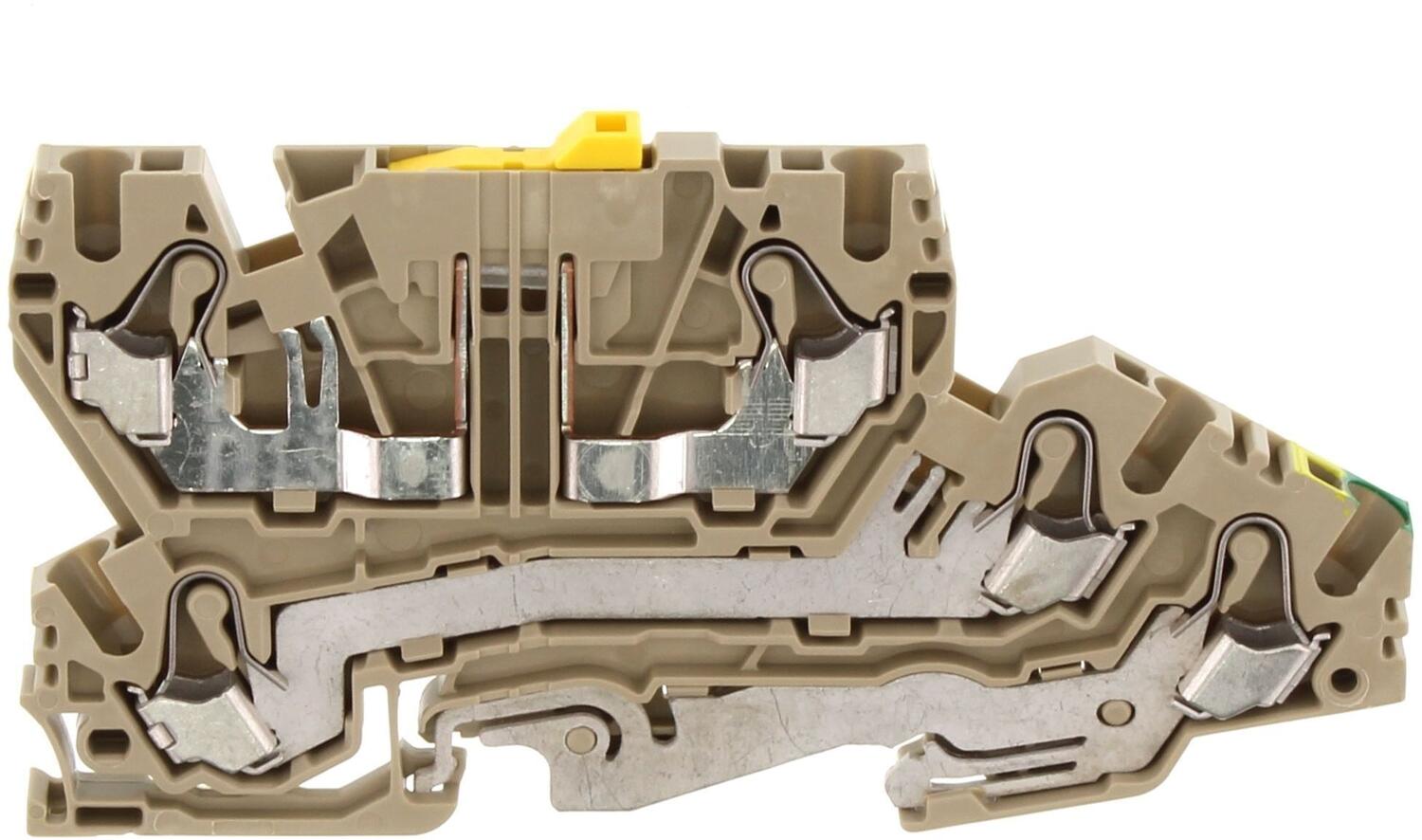

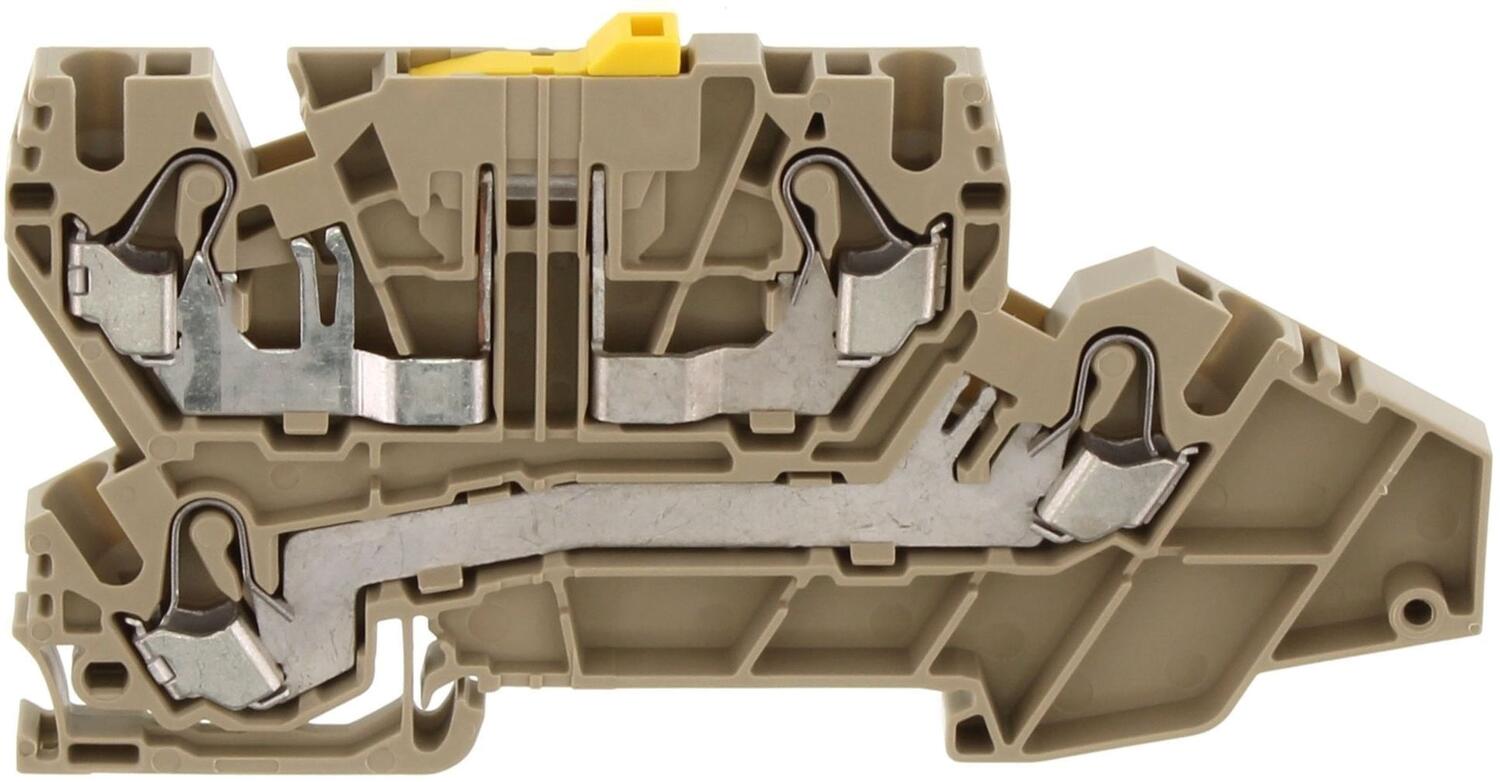

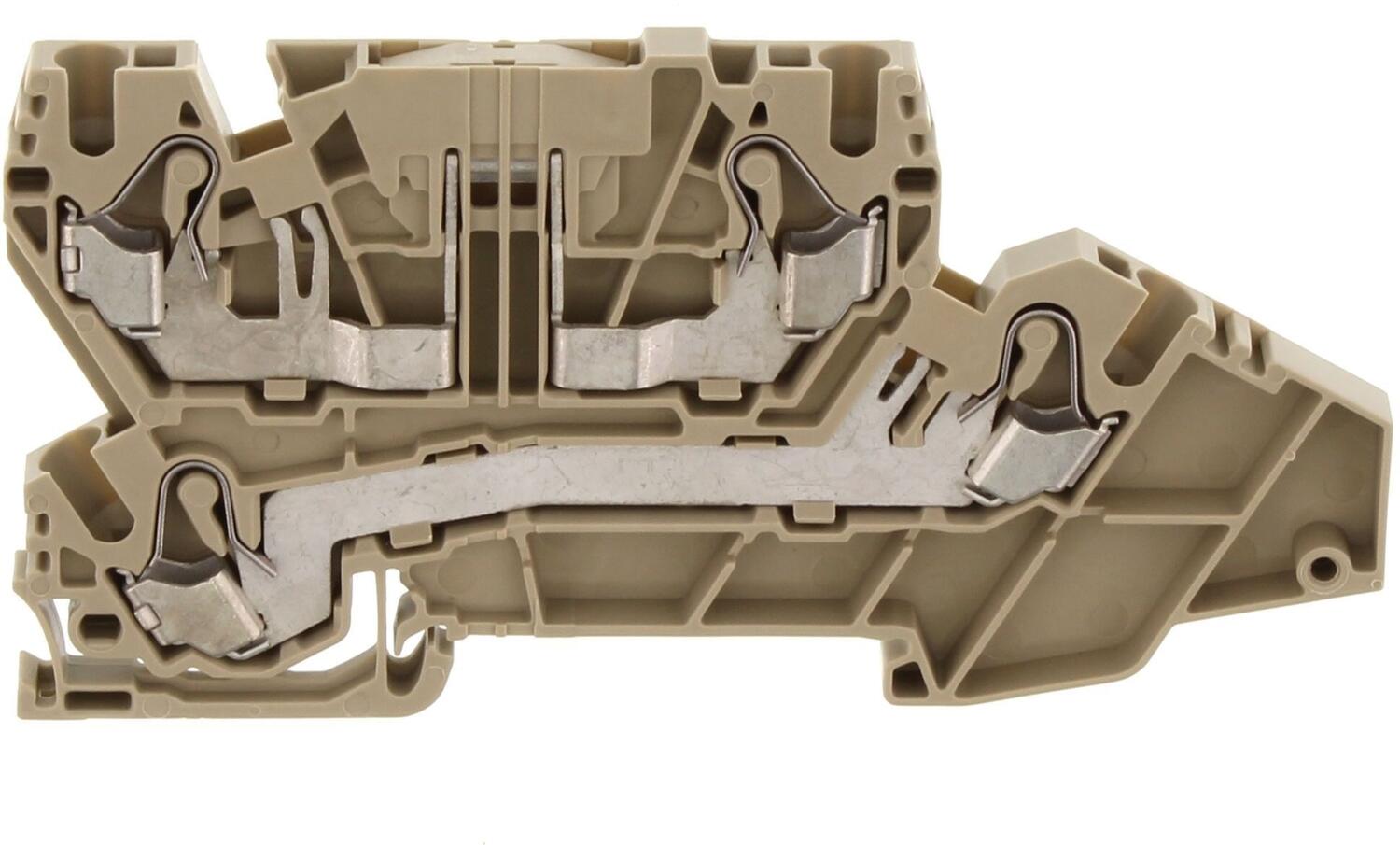

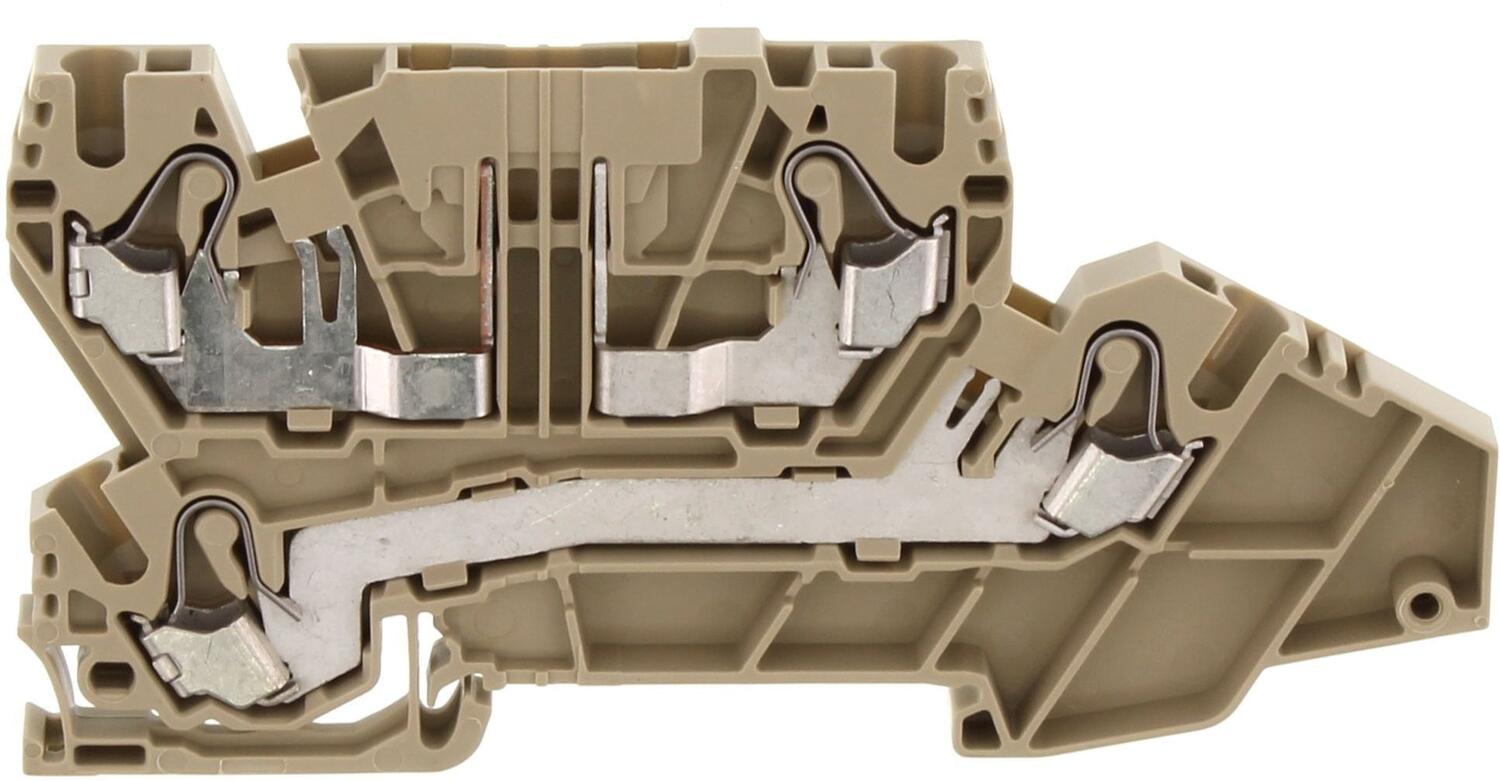

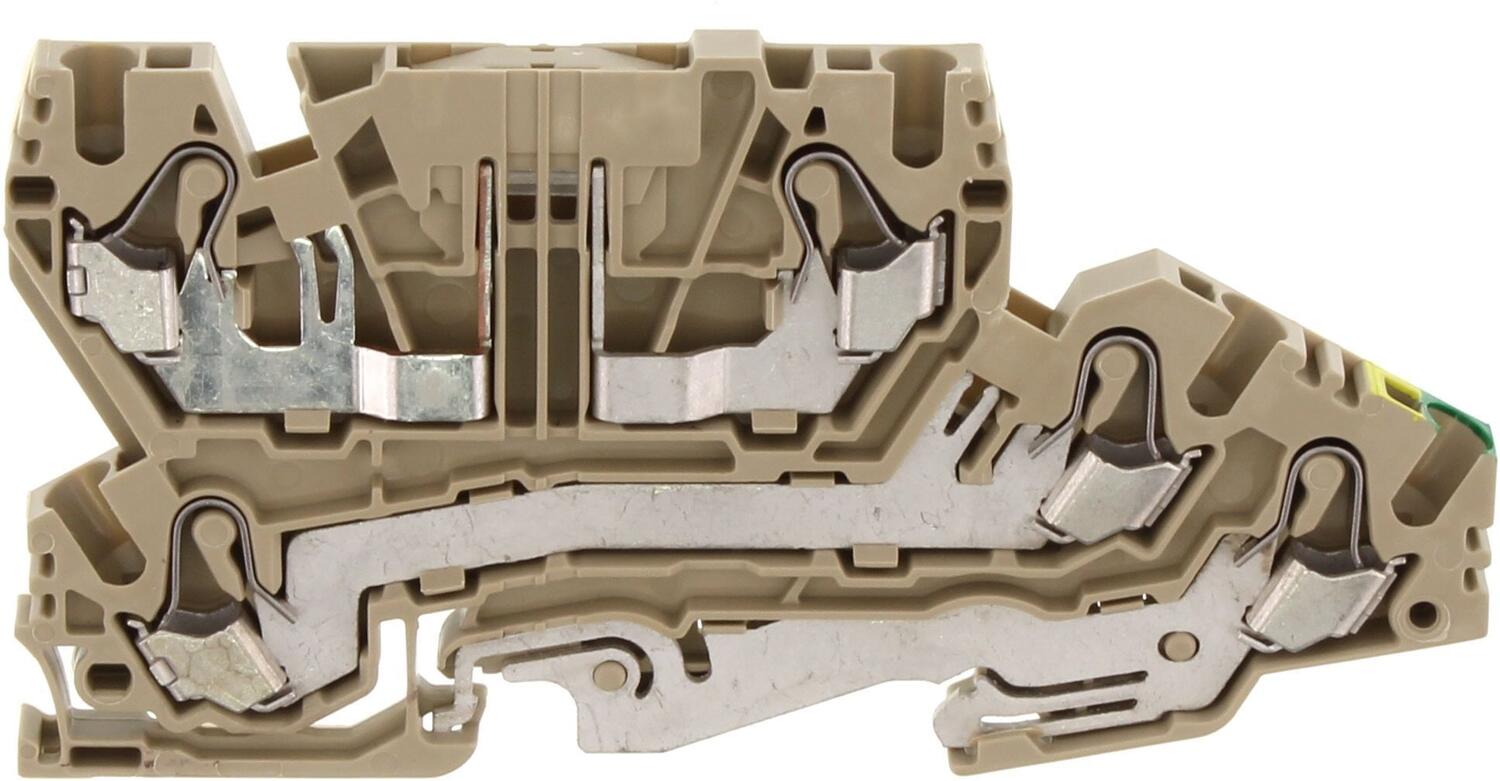

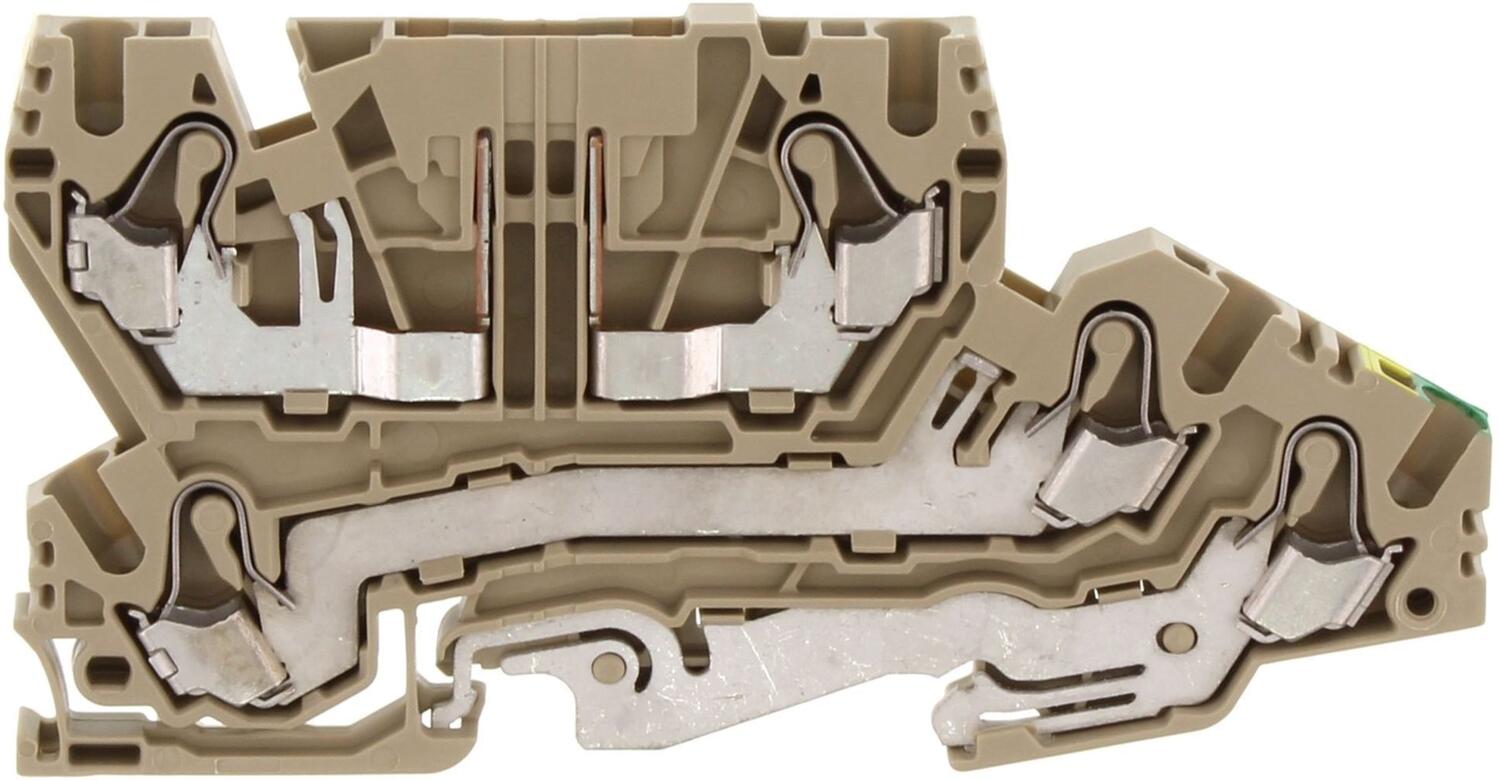

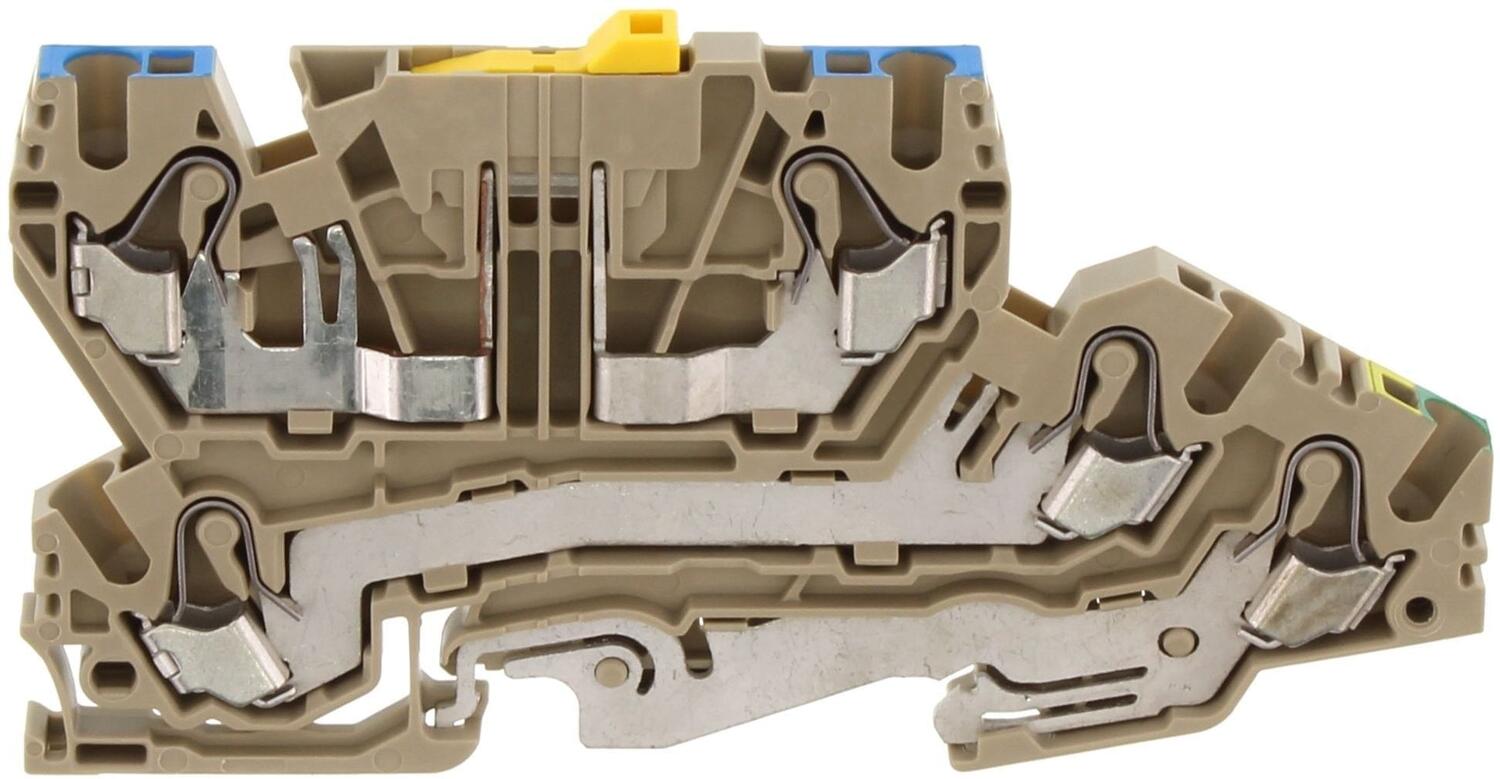

The base terminals of the FDLI 2.5-4 series are available in eight different versions. This range offers you the best all round solution, whether you are using our feed-through terminals, feedthrough terminals with disconnect-blade or the empty terminal versions together with custom-fit accessories.
All can be combined together in one neat package with a uniform size to give a professional and easy to wire solution
- Only 5.1mm wide
- Base terminal with wide range of options
- Snap on Earth on both sides
- Disconnect and fuse options
Selected variant
Selected variant
Specifications
| Approvals | EAC |
|---|---|
| Color | Beige |
| Connections | 5 |
| Contamination degree | 3 |
| Country of origin | DE |
| Cross connect channels | 2 |
| Cross section single wire from | 0.2 |
| Cross section single wire to | 4 |
| Cross section stranded wire from | 0.2 |
| Cross section stranded wire to | 4 |
| Cross section stranded with ferrule from | 0.2 |
| Cross section stranded with ferrule to | 2.5 |
| Cross-Section | 4 |
| EAC test standard | TR ZU 004/2011 |
| Flamklass | UL94-V0 |
| Height TS 35/7.5 | 55.6 |
| Length | 101 |
| Load Current Max | 32 |
|---|---|
| Operating temperature from | -40 |
| Operating temperature to | 120 |
| Overvoltage category | III |
| Pack Size | 50 |
| Plug gauge acc. EN 60 947-1 | A3 |
| Rated Current IEC | 18 |
| Rated impulse voltage | 6 |
| Rated Voltage IEC | 400 |
| Rated wire cross section from (AWG) | 26 |
| Rated wire cross section to (AWG) | 10 |
| Stripping Length | 12 |
| Tariff code | 85369010 |
| Weight | 27.25 |
| Width | 5.1 |
Product description
The base terminals of the FDLI 2.5-4 series are available in eight different versions. This range offers you the best all round solution, whether you are using our feed-through terminals, feedthrough terminals with disconnect-blade or the empty terminal versions together with custom-fit accessories.
All can be combined together in one neat package with a uniform size to give a professional and easy to wire solution
