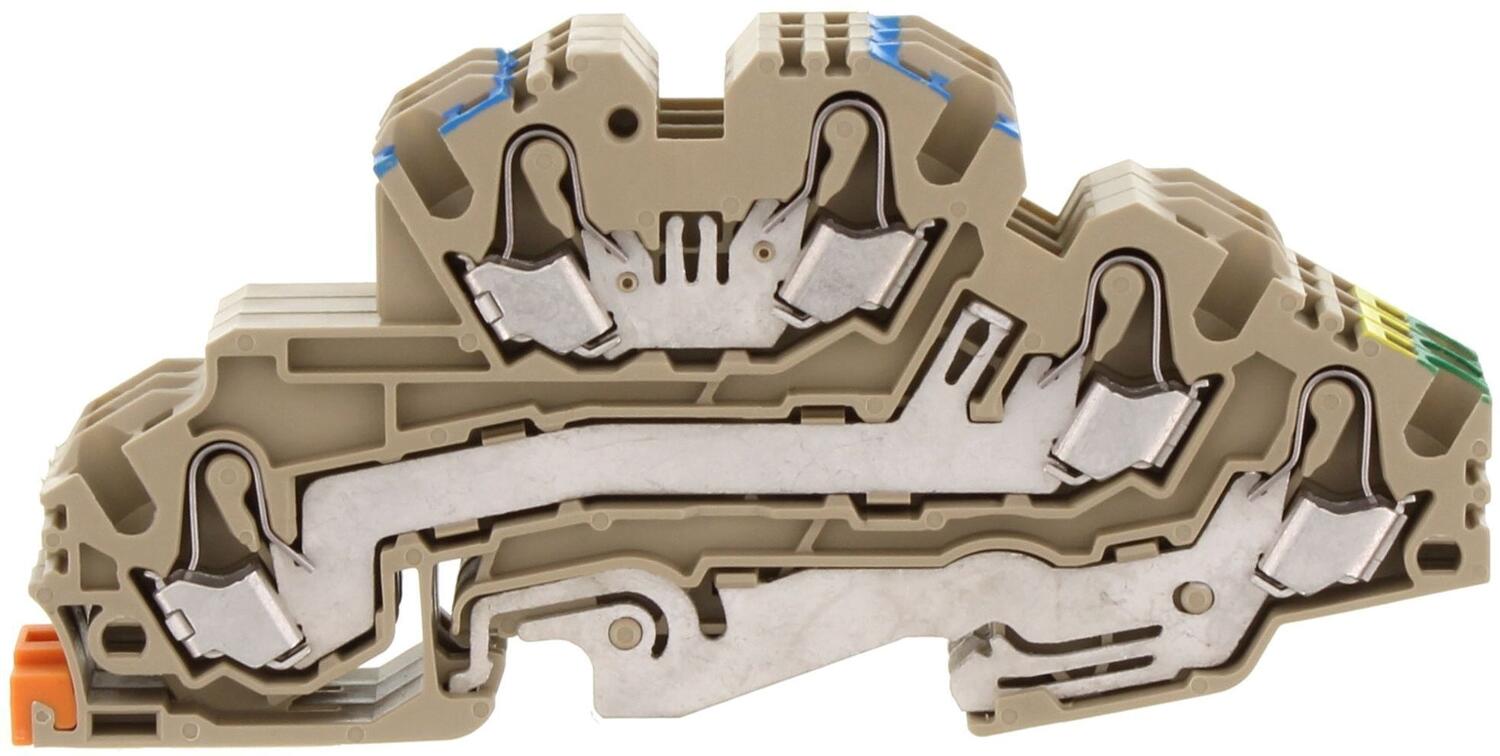

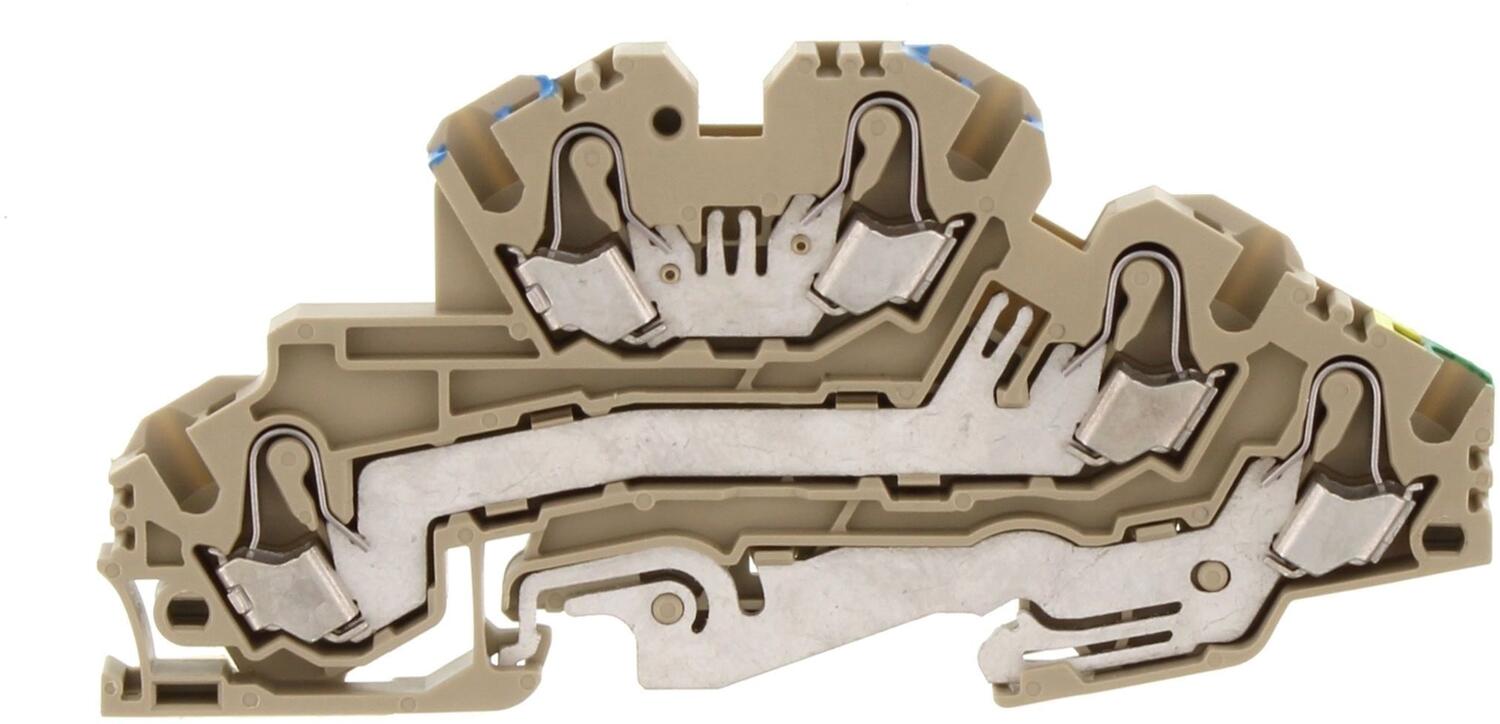

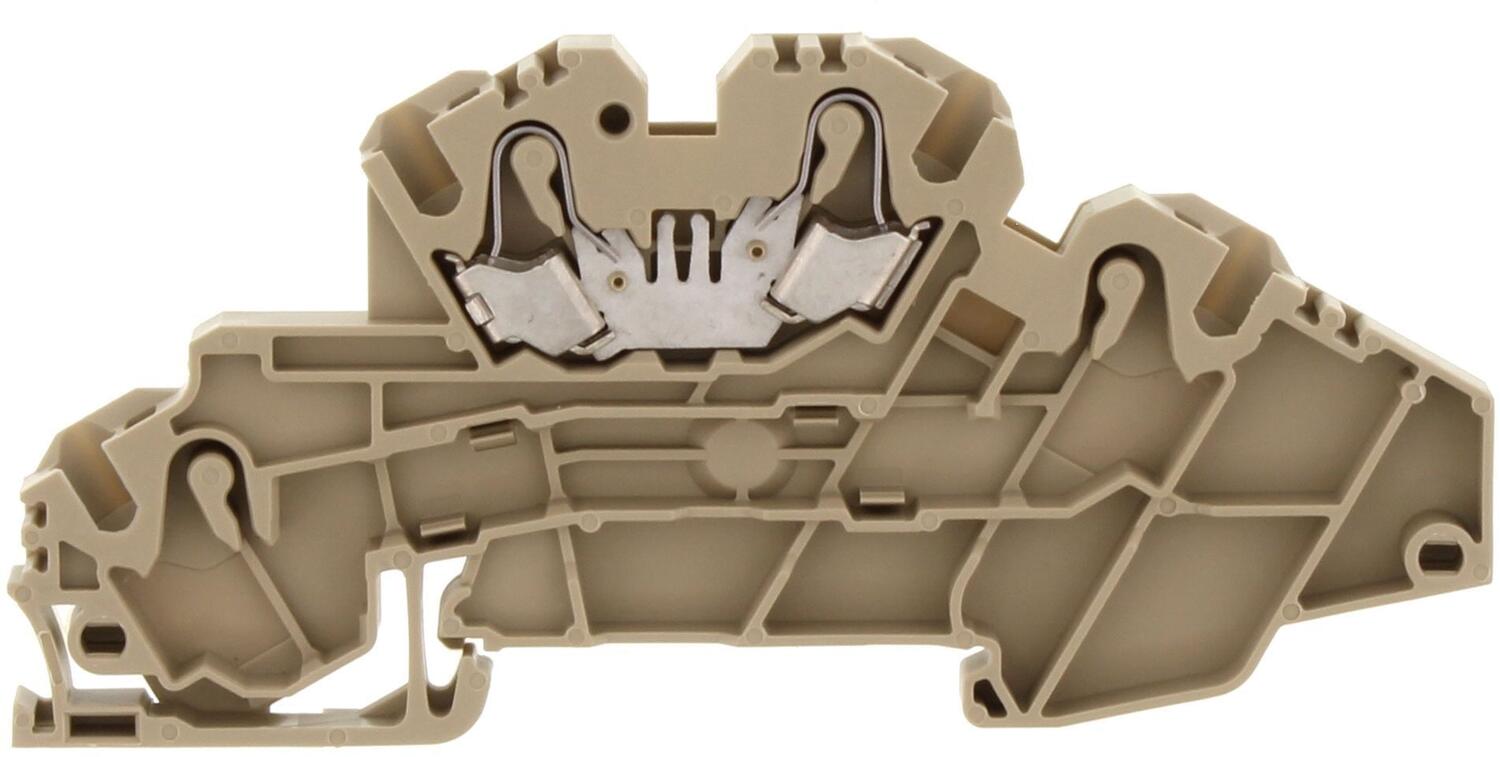

3-wire installation hybrid terminals - FDLIS 2.5-4
FDLIS
The FDLIS series is a compact terminal designed for the distribution of power.

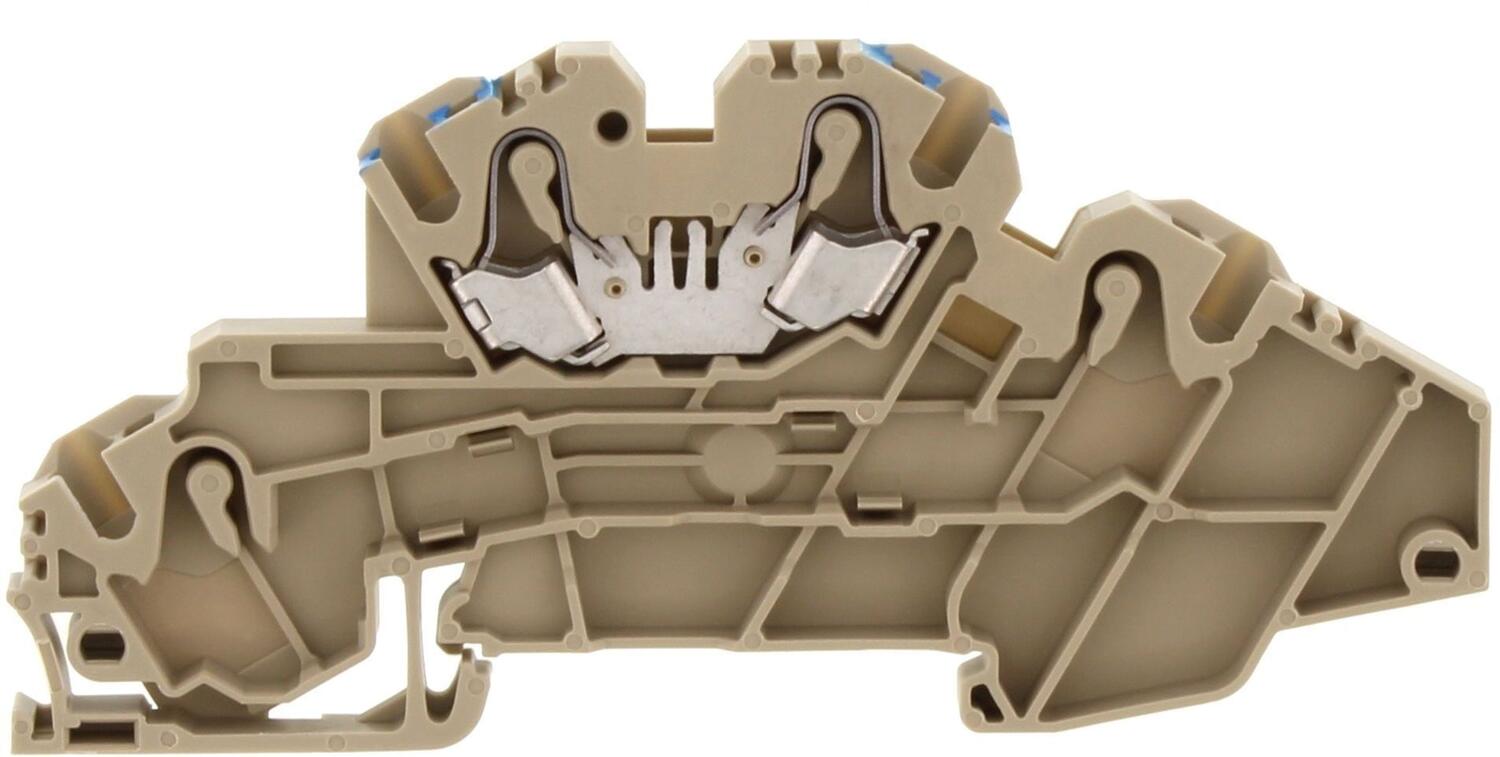

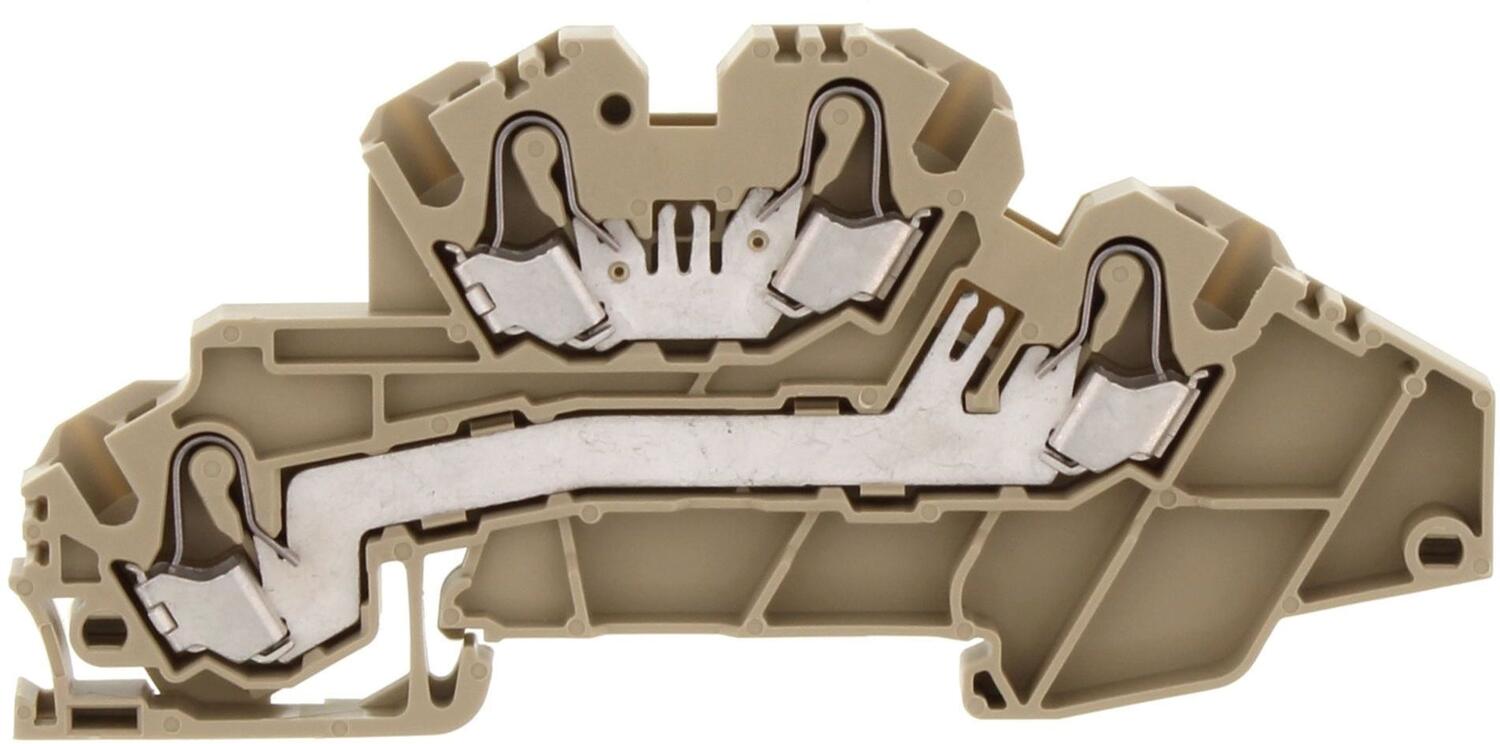

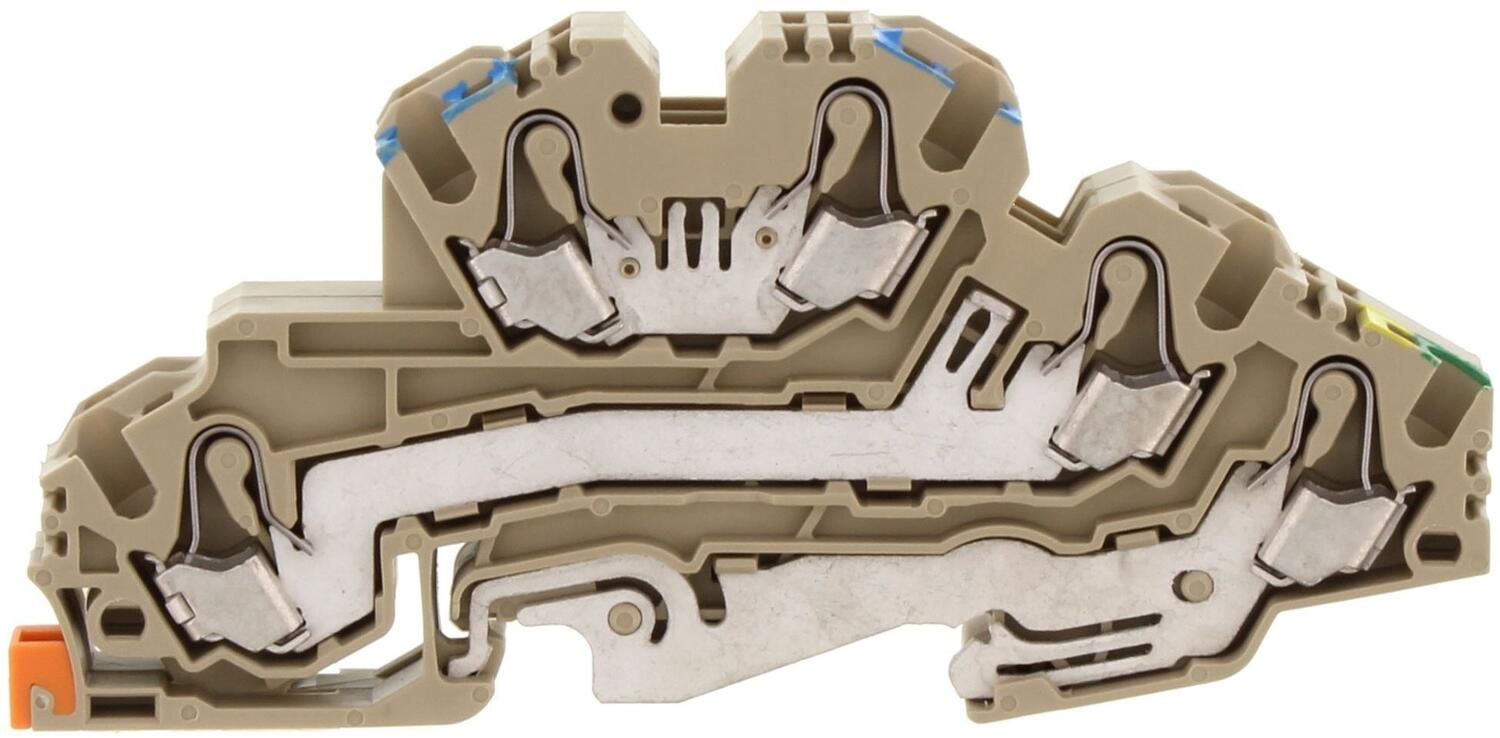

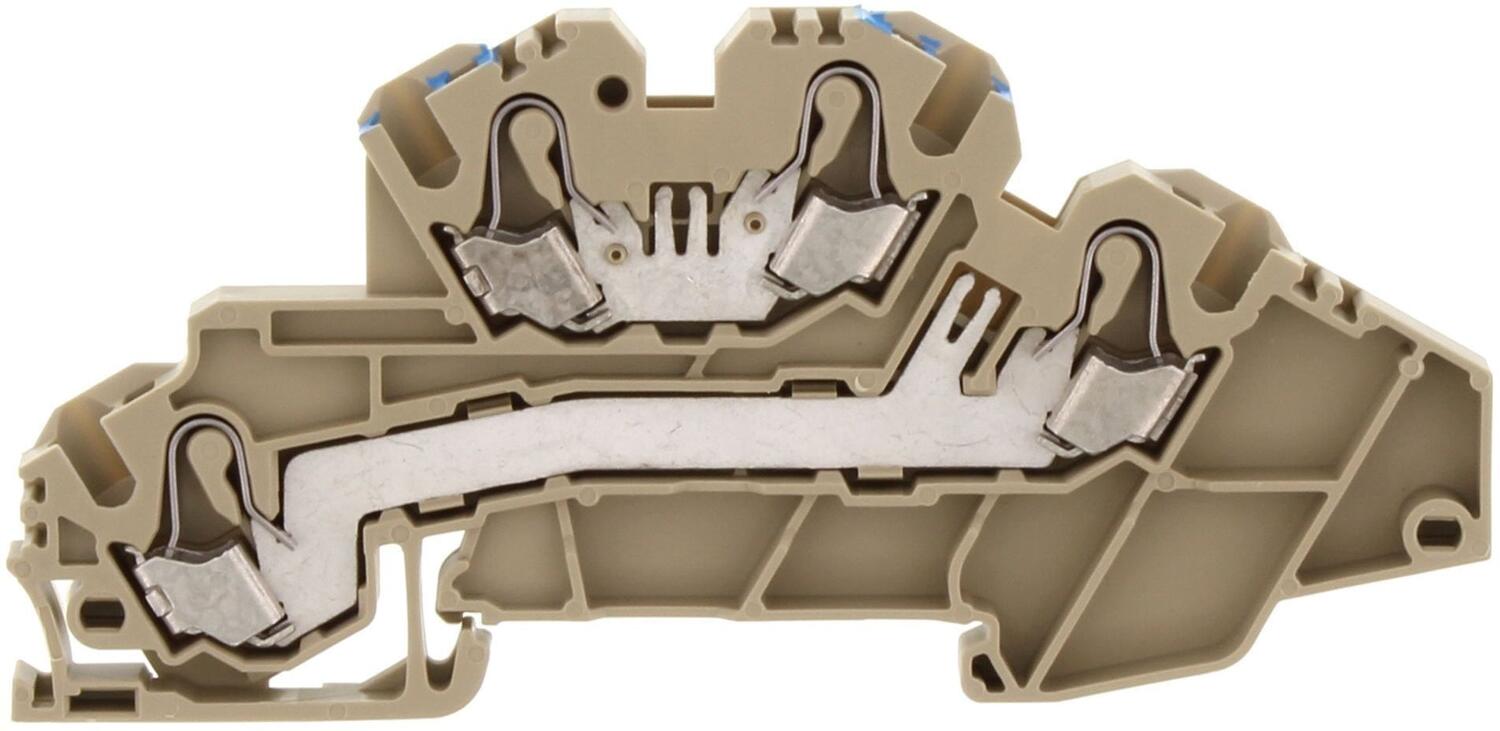

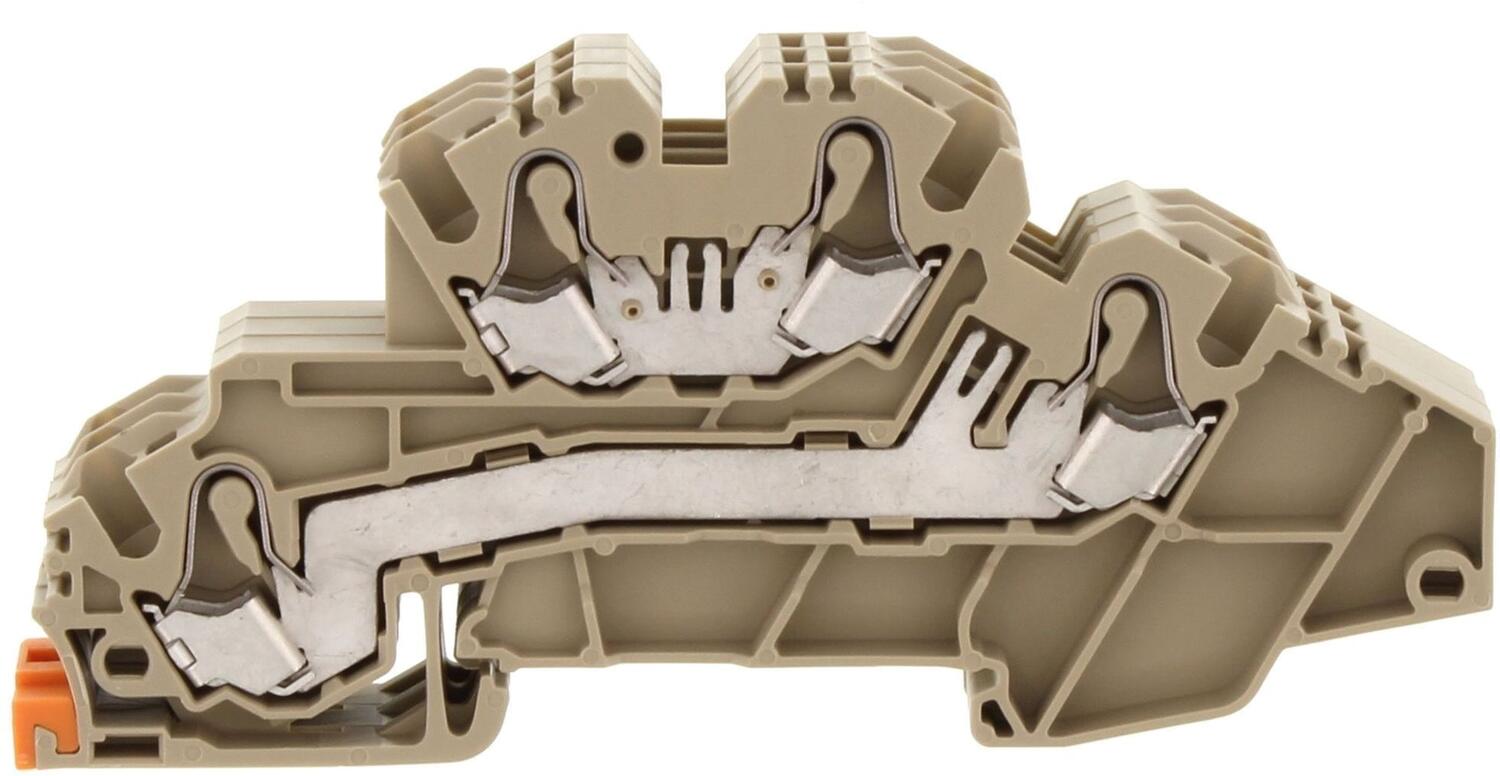

The range consists of six different blocks that can be used in single or 3 phase installation of up to 32A
Solid wires or stranded cables with ferrules can be directly inserted into the terminals without the need of any tools.

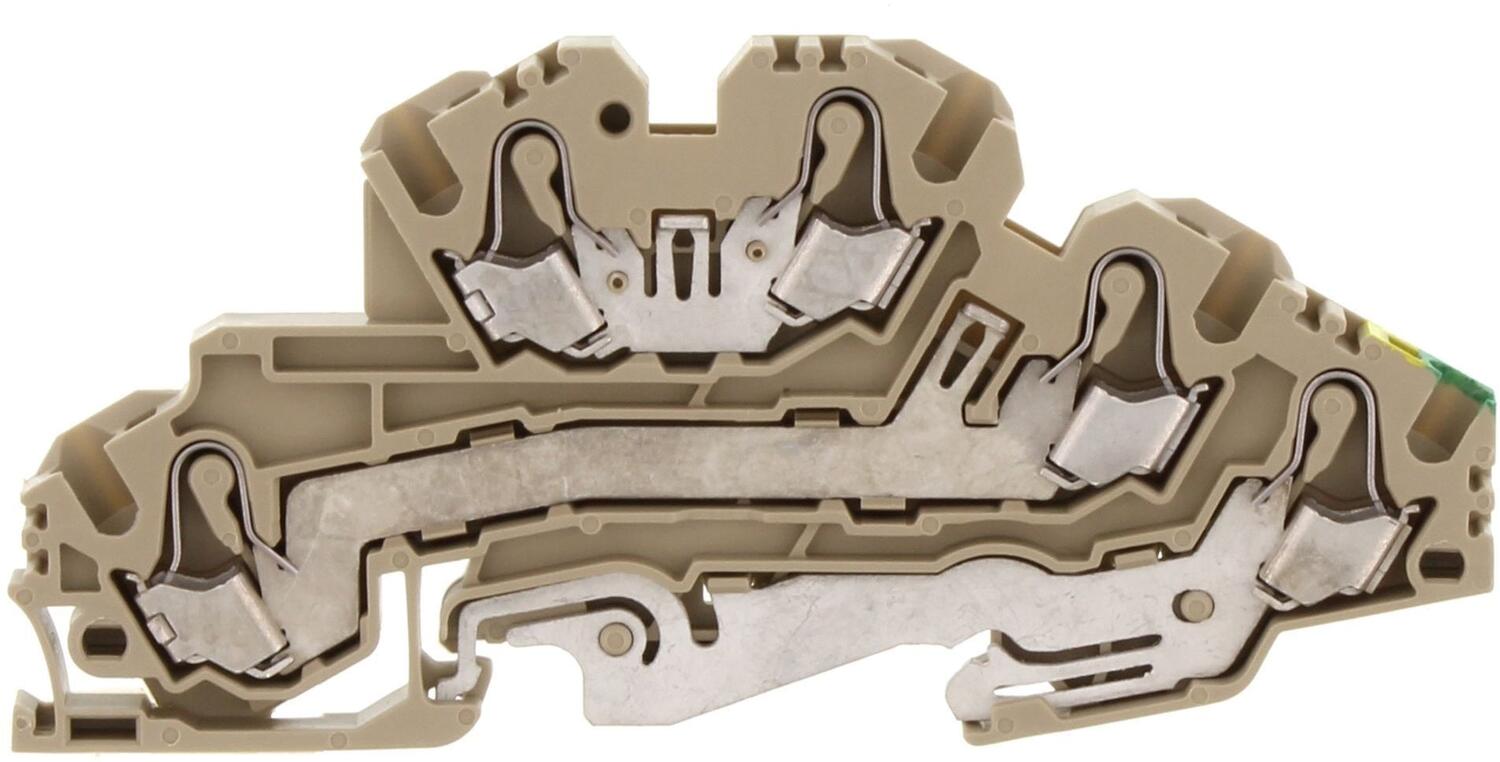

These blocks include a version that connects directly to the din rail for the Earth connection.

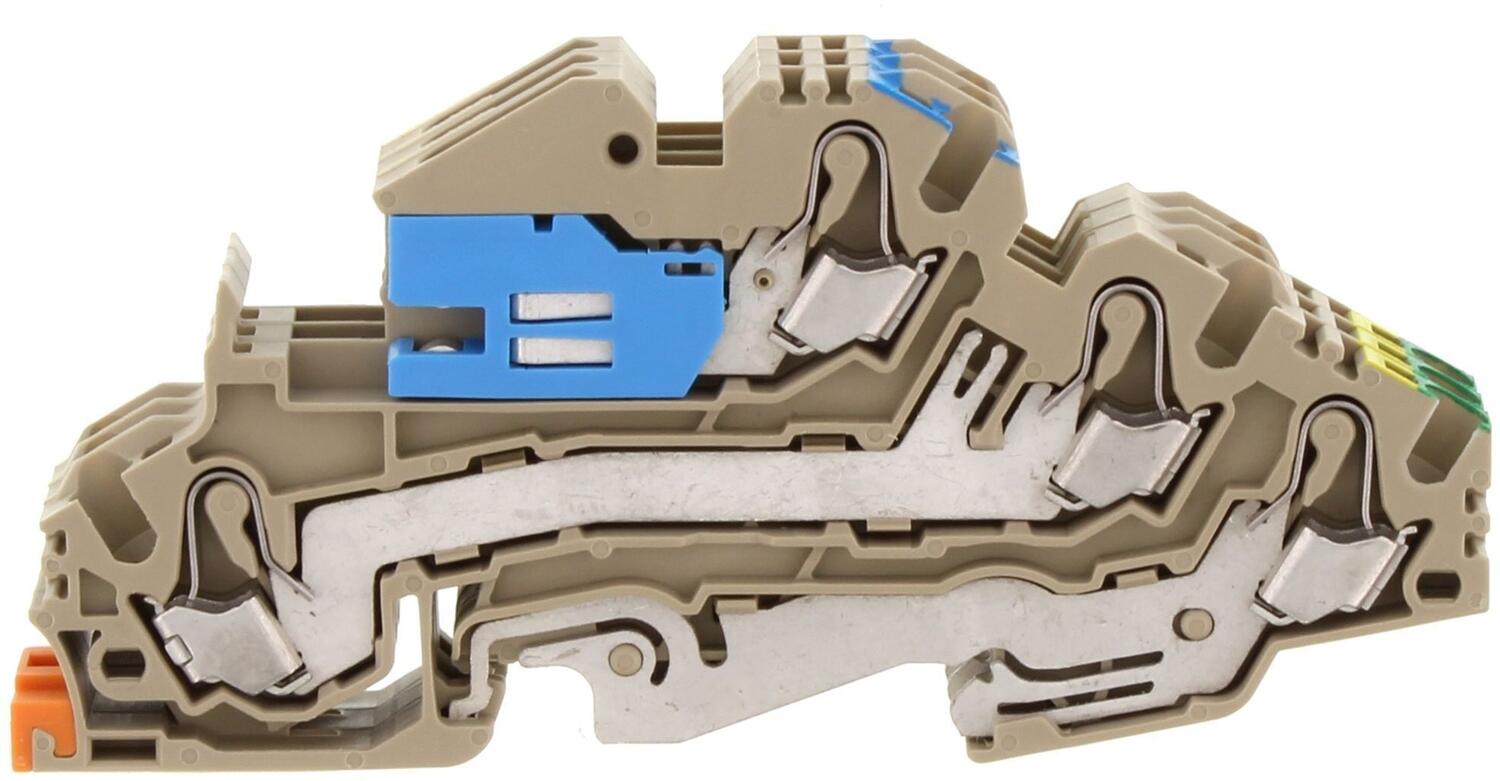

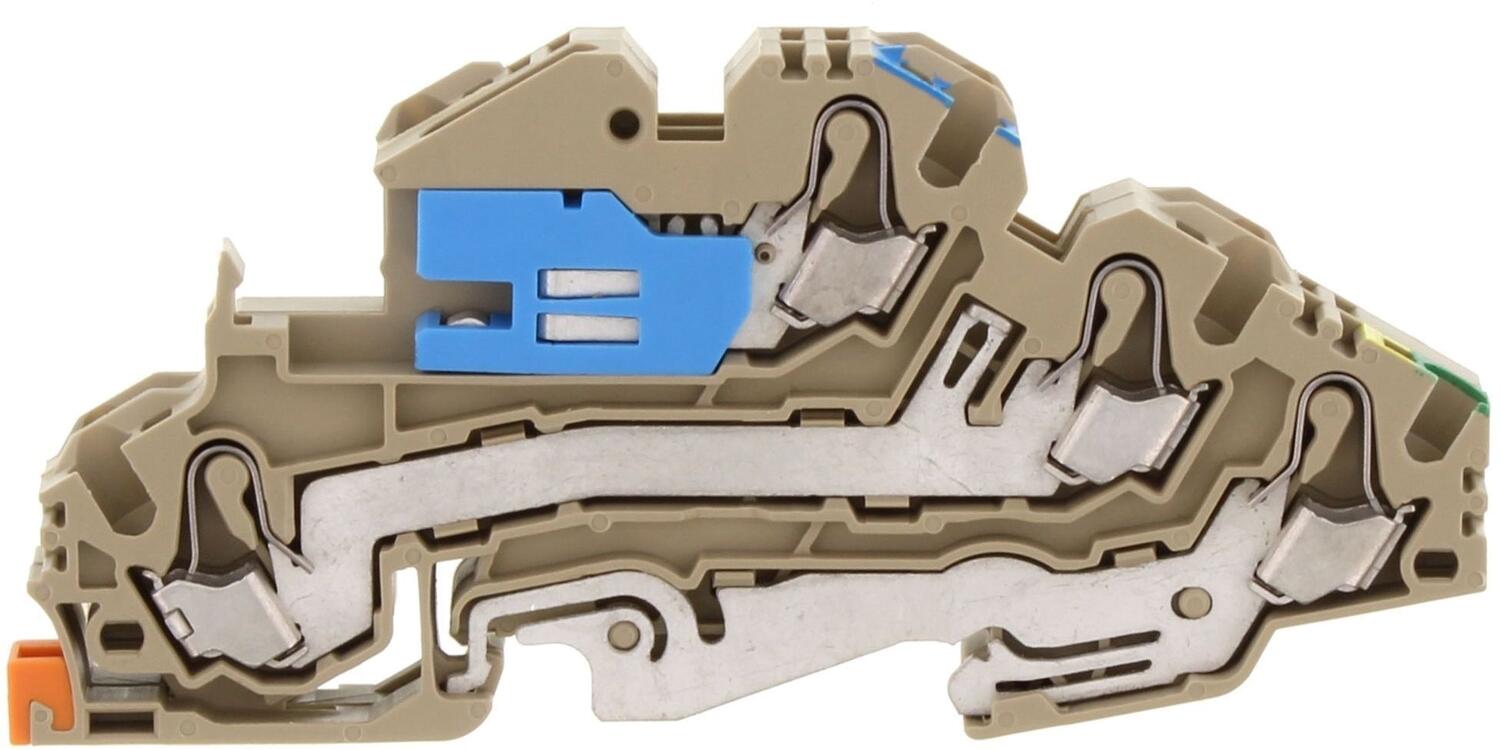

Where there is a need to disconnect the Neutral circuit, without the removal of the cables, there is a neutral disconnect terminal that is designed to accommodate a 10 x 3 mm neutral busbar. There is no need for an additional fixing plate because the NT terminal snaps the neutral busbar securely into place.
- Material polyamide 6.6
- Temperature resistance -40°C...+120°C
- Fire-resistance class V0
Selected variant
Selected variant
Specifications
| Approvals | CSA, CSA US, KEMA KUR, EAC |
|---|---|
| Color | Beige |
| Connections | 4 |
| Contamination degree | 3 |
| Country of origin | BG |
| Cross connect channels | 2 |
| Cross section single wire from | 0.2 |
| Cross section single wire to | 4 |
| Cross section stranded wire from | 0.2 |
| Cross section stranded wire to | 4 |
| Cross section stranded with ferrule from | 0.2 |
| Cross section stranded with ferrule to | 2.5 |
| Cross-Section | 4 |
| CSA test standard | C22.2 No 158 |
| CSAus test standard | UL 1059 |
| EAC test standard | TR ZU 004/2011 |
| Flamklass | UL94-V0 |
| Height TS 35/7.5 | 49 |
| Length | 100 |
| Load Current Max | 32 |
| Operating temperature from | -40 |
|---|---|
| Operating temperature to | 120 |
| Overvoltage category | III |
| Pack Size | 50 |
| Plug gauge acc. EN 60 947-1 | A3 |
| Rated Current CSA | 25 |
| Rated current CSAus | 25 |
| Rated Current IEC | 32 |
| Rated impulse voltage | 6 |
| Rated wire cross section from (AWG) | 26 |
| Rated wire cross section to (AWG) | 10 |
| Rated voltage CSAus | 300 |
| Rated Voltage IEC | 400 |
| Stripping Length | 12 |
| Tariff code | 85369010 |
| Weight | 21 |
| Width | 5.1 |
| Voltage CSA | 300 |
Product description
The FDLIS series is a compact terminal designed for the distribution of power.
The range consists of six different blocks that can be used in single or 3 phase installation of up to 32A
Solid wires or stranded cables with ferrules can be directly inserted into the terminals without the need of any tools.
These blocks include a version that connects directly to the din rail for the Earth connection.
Where there is a need to disconnect the Neutral circuit, without the removal of the cables, there is a neutral disconnect terminal that is designed to accommodate a 10 x 3 mm neutral busbar. There is no need for an additional fixing plate because the NT terminal snaps the neutral busbar securely into place.
