Specifications
| Approvals | CB, CE, NEC Class 2, TÜV, UL |
|---|---|
| Clamp type | Screw |

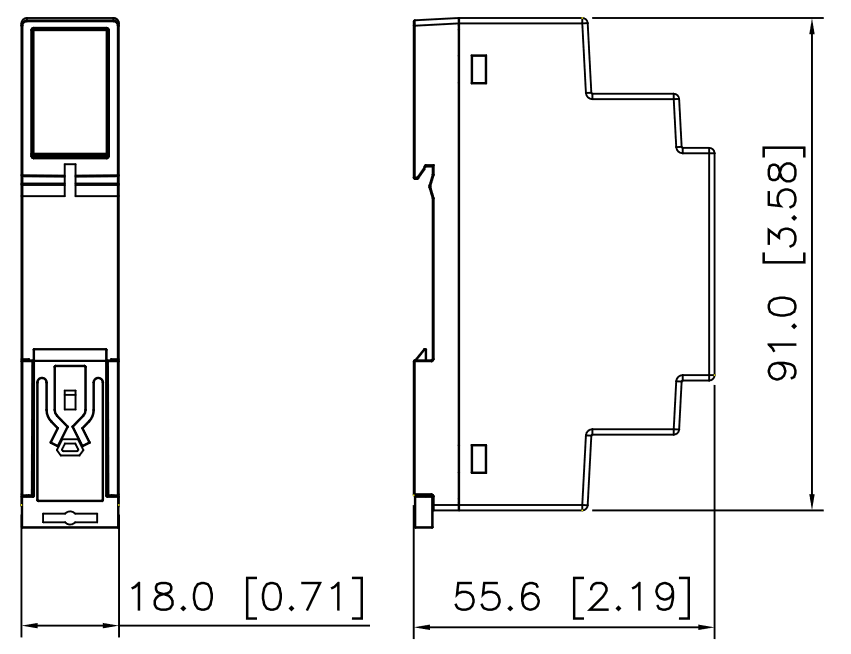

| Depth | 55.6 |
| Effect | 9.96 |
| Efficiency | 82 |
| Height | 91 |
| Hold-up time at 120 V AC, full load. Typical. | 10 |
| Hold-up time at 230 V AC, full load. Typical. | 60 |
| Input voltage AC | 100-240 V |
| Input voltage ac max | 264 |
| Input voltage ac min | 90 |
| Input voltage DC | 125-375 V |
| Input voltage dc max | 375 |
| Input voltage dc min | 125 |
| Inrush current at 120 V ac typical | 15 |
| Inrush current at 230 V ac typical | 30 |
|---|---|
| IP Class | IP20 |
| Material Protection | Plastic |
| Output Current | 0.83 |
| Output voltage | 12 |
| Output voltage max | 12 |
| Output voltage min | 12 |
| Power Consumption At 120 V AC | 0.3 |
| Power Consumption At 230 V AC | 0.2 |
| Supply Frequency | 50-60 Hz |
| Temperature Range Without Derating From | -25 |
| Temperature Range Without Derating To | 55 |
| Weight | 0.06 |
| Width | 18 |
